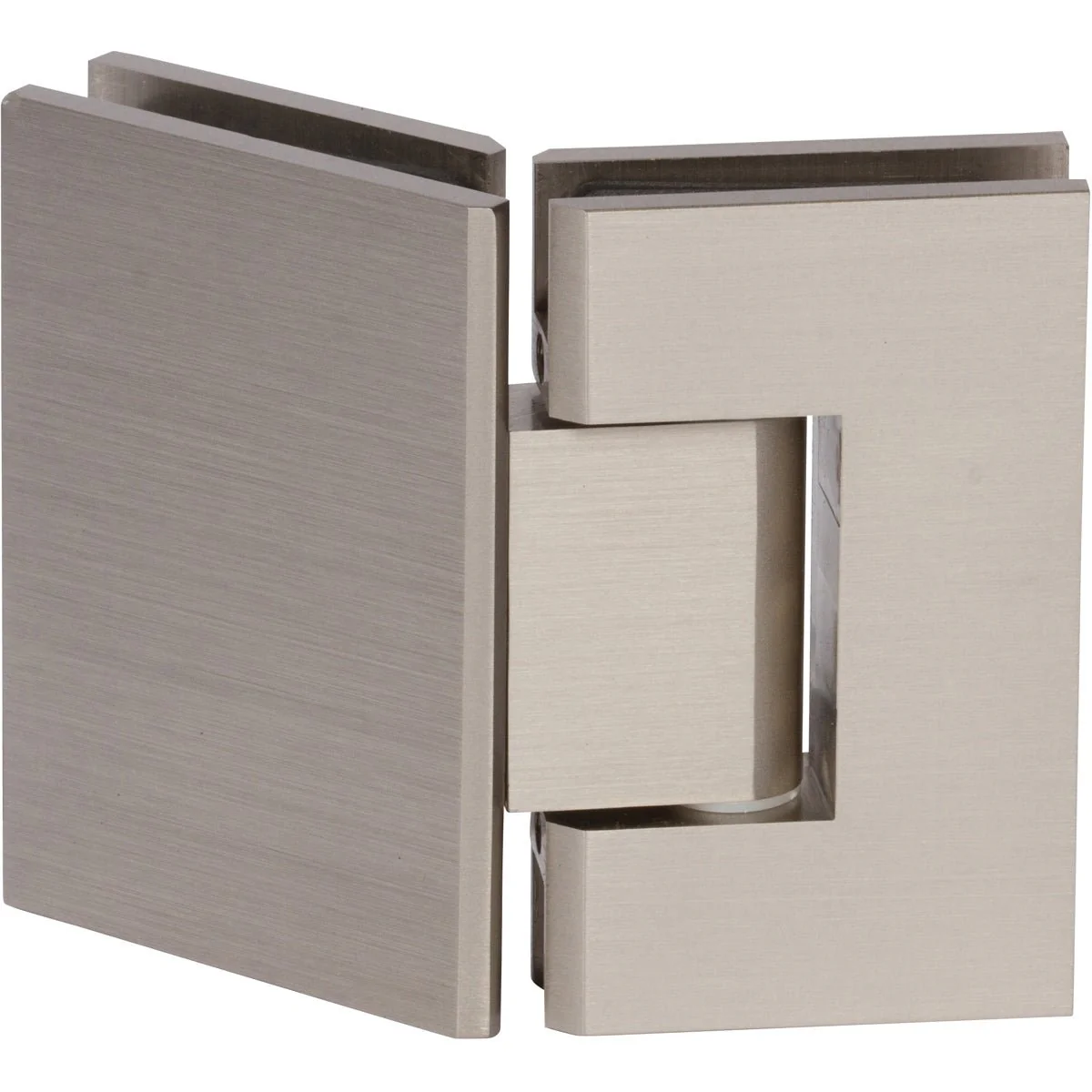

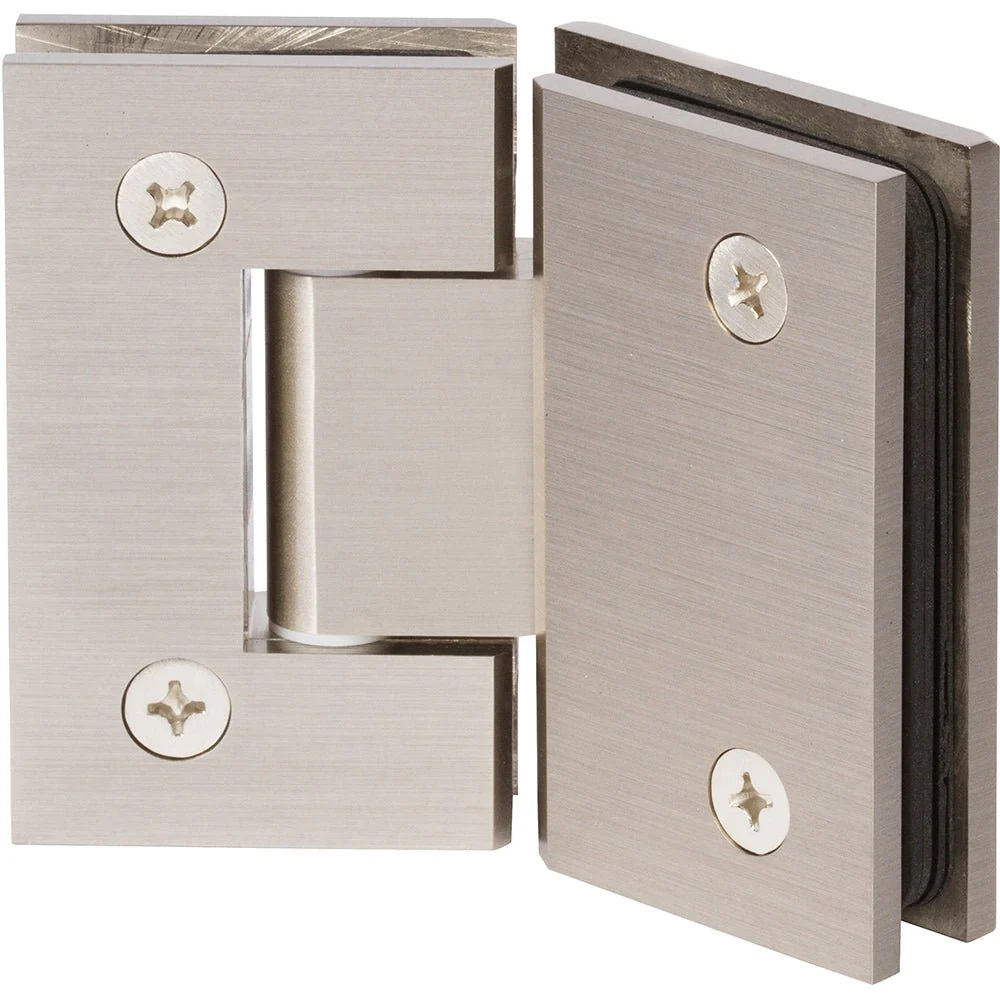

Rockwell Classic 135 degree Glass to Glass Shower Hinge

Solid Brass Drop Forged Construction

135 degree Glass to Glass Shower Door Hinge

Glass Thickness: 3/8” (10mm) to 1/2” (12mm) Tempered Glass

Stainless Steel Hardened Coil Springs and Pin

90 Degree Opening angles

Self centering within 15 degrees from closing position

Industry standard fits typical glass cutout template

Accessories – gaskets, template cut out dimensions.

Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 80 lbs. with a maximum door width of 28″

Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 32″
