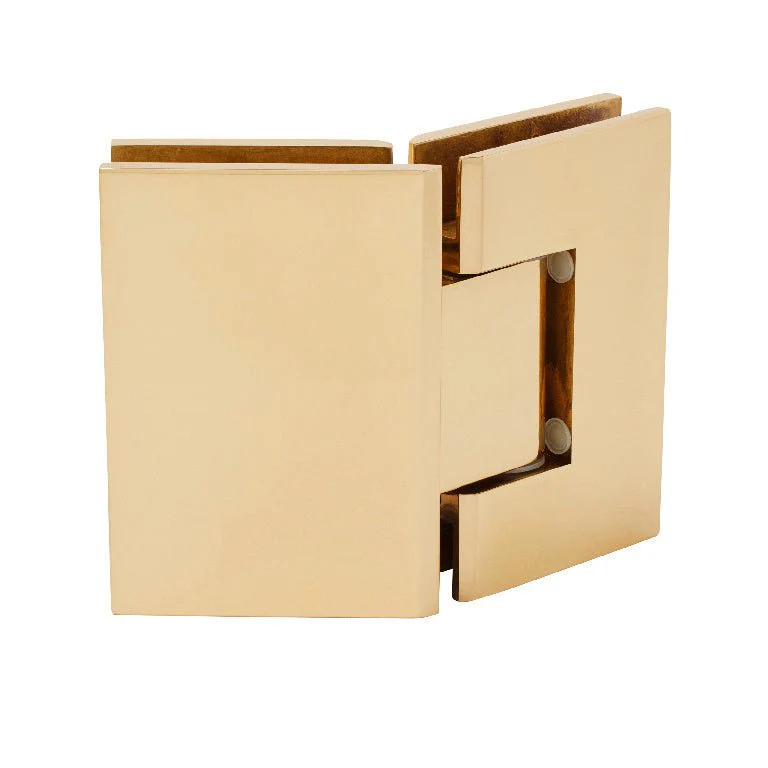

Junior Geneva 045 Series 135 Degree Glass-to-Glass Hinge
- 135Āŗ Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
- Self-Centering with Reversible 5 Degrees Pivot Pin
- Available in Several Beautiful Finishes
- 3 Year Warranty
The same elegant European design that has made our Geneva Series so popular is available in a smaller version, theĀ Junior Geneva, to offer flexibility of application. Used to accommodate 1/4" (6 mm) to 5/16" (8 mm) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The Junior Geneva is self-centering and available in up to 12 stock finishes. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure.
STANDARD REVERSIBLE PIVOT PIN:Ā Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which will allow the door to close 5 degree further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PINĀ Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hingesĀ with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Using three hingesĀ with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32" (813 mm).
Special Features:Ā Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use.

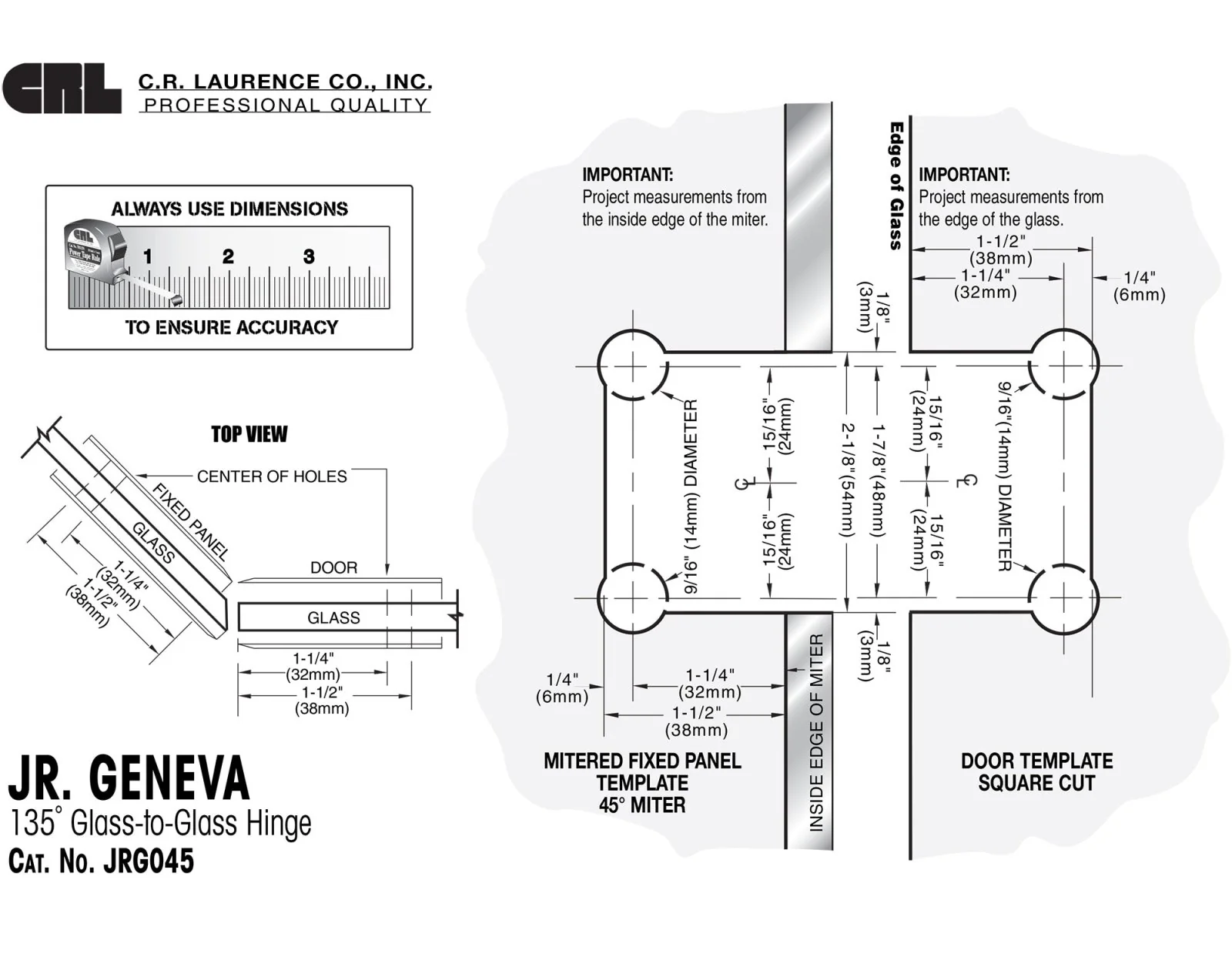

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
