Estate 135 Series 135 Degree Glass-to-Glass Hinge

• Self-Centering Action
• Available in Many Beautiful Finishes
• 3 Year Warranty
• 135º Glass-to-Glass

CRL Estate Hinges for 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass are a uniquely classic design combining mitered edges with curved corners. They are made of solid brass with stainless steel springs. Choose from the elegant Wall Mount Hinge or 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The self-centering action of the Estate Series Hinge allows the door to be maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" of 34" (864 mm) and a maximum door width for 1/2" of 30" (762 mm).

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

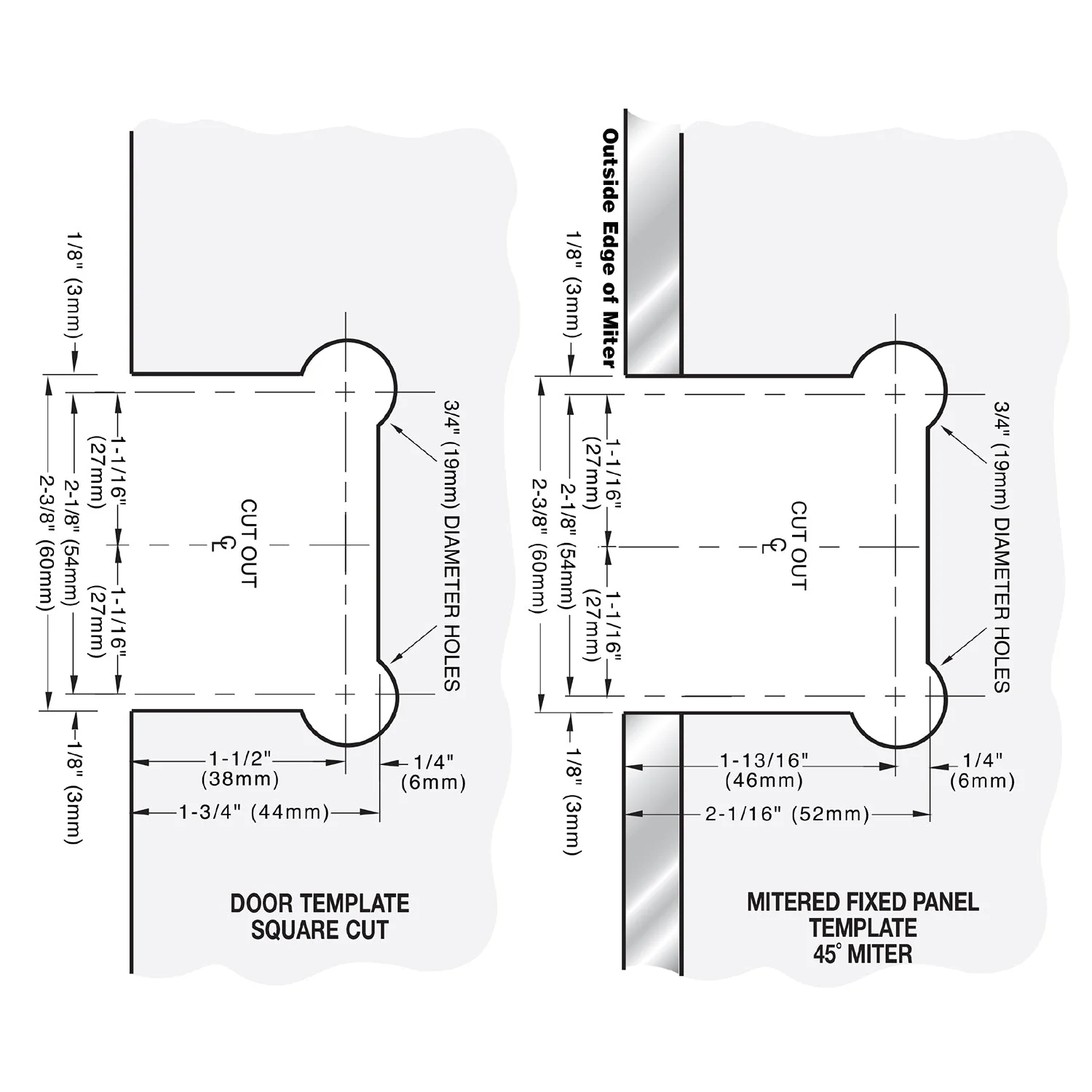

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
