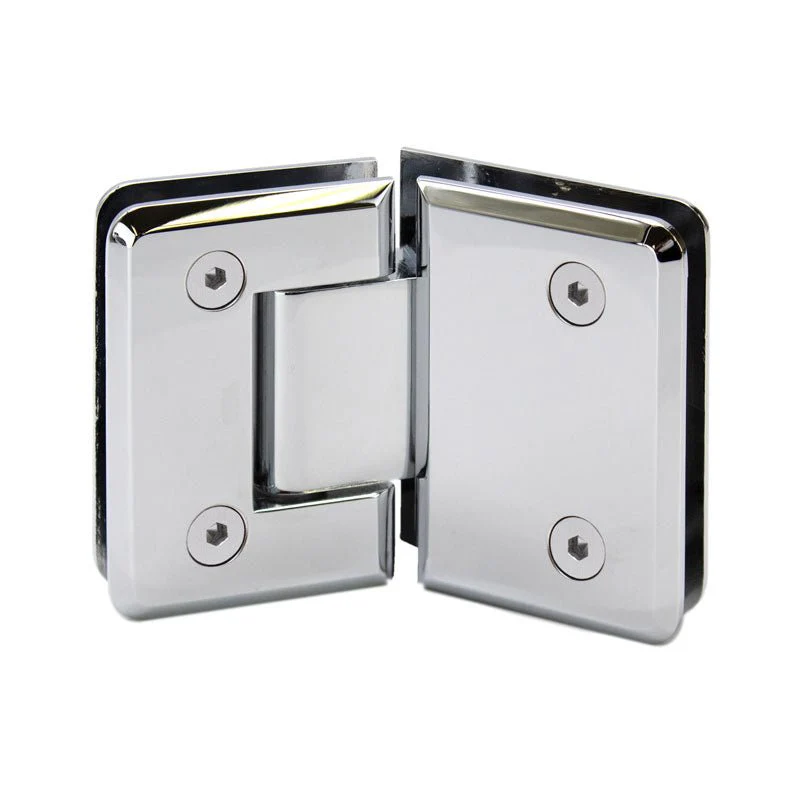

FHC Preston Beveled 5 Degree Positive Close Glass To Glass 135 Degree Hinge
- For 3/8" to 1/2" Tempered Glass
- Beveled Edges and Corners
- Easily Converts to 5 Degree Offset
- Used in 135 Degree Glass to Glass Applications
- Solid Brass Construction
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|

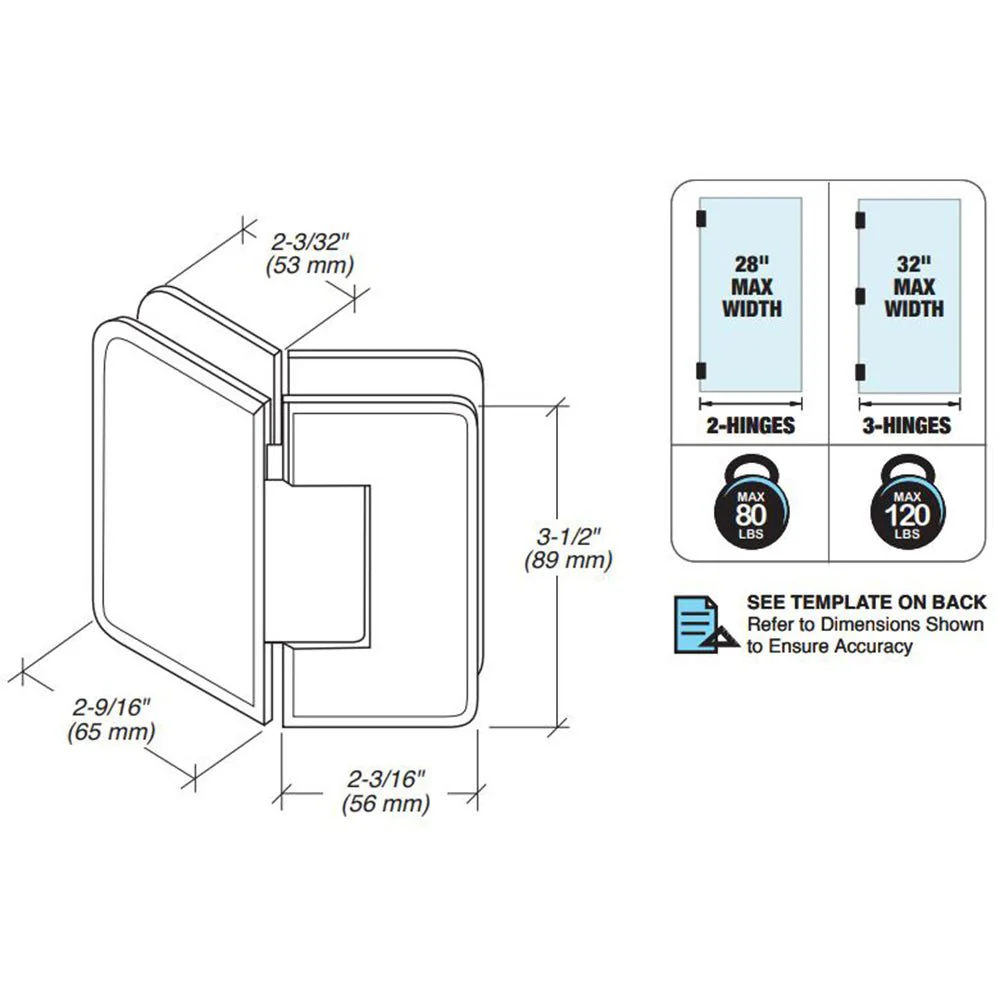

| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
Select Finish
From $31.66
Original: $105.54
-70%FHC Preston Beveled 5 Degree Positive Close Glass To Glass 135 Degree Hinge—
$105.54
$31.66Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- For 3/8" to 1/2" Tempered Glass
- Beveled Edges and Corners
- Easily Converts to 5 Degree Offset
- Used in 135 Degree Glass to Glass Applications
- Solid Brass Construction
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 80 LBS (36 kg) | 28" (711 mm) |
| Using 3 Hinges | 120 LBS. (54 kg) | 32" (813 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
