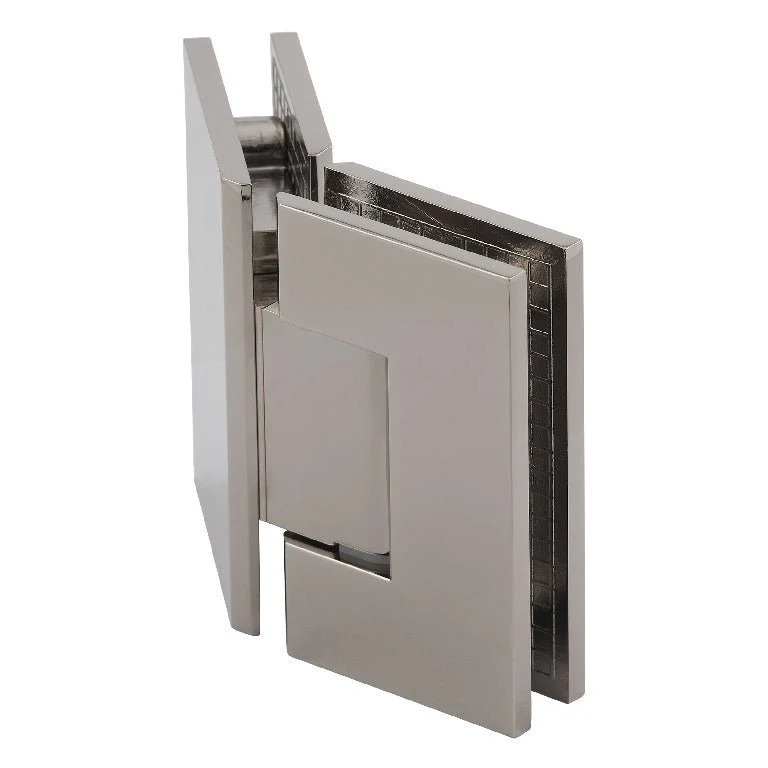

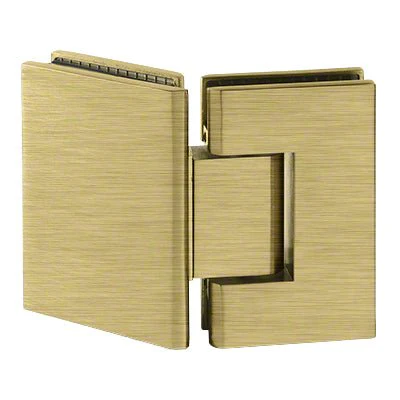

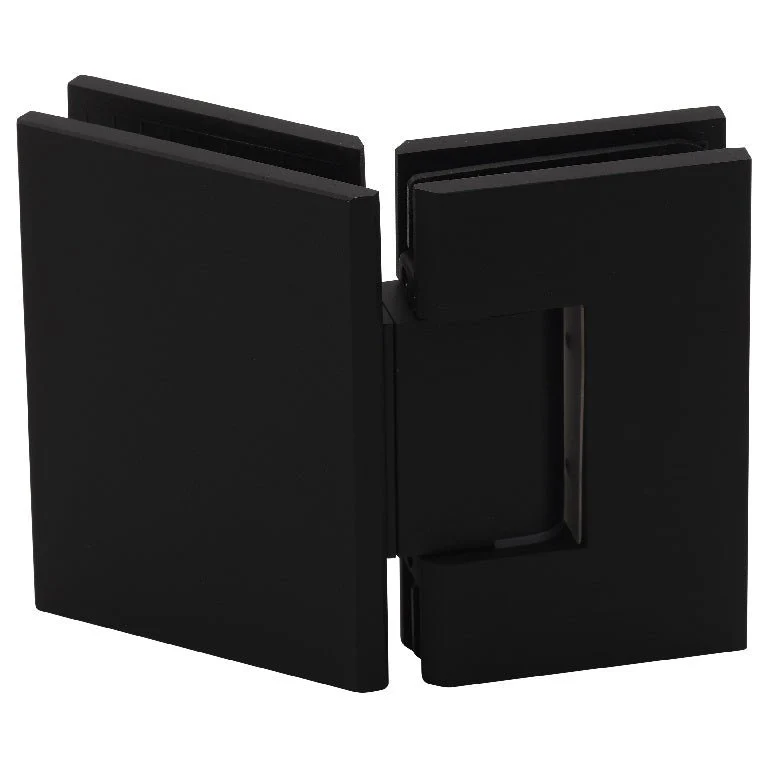

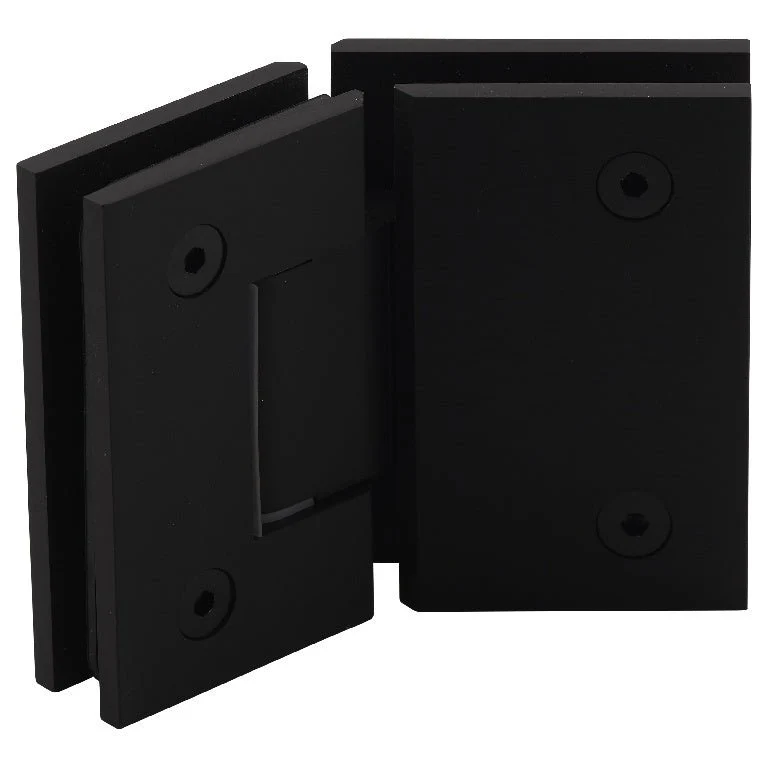

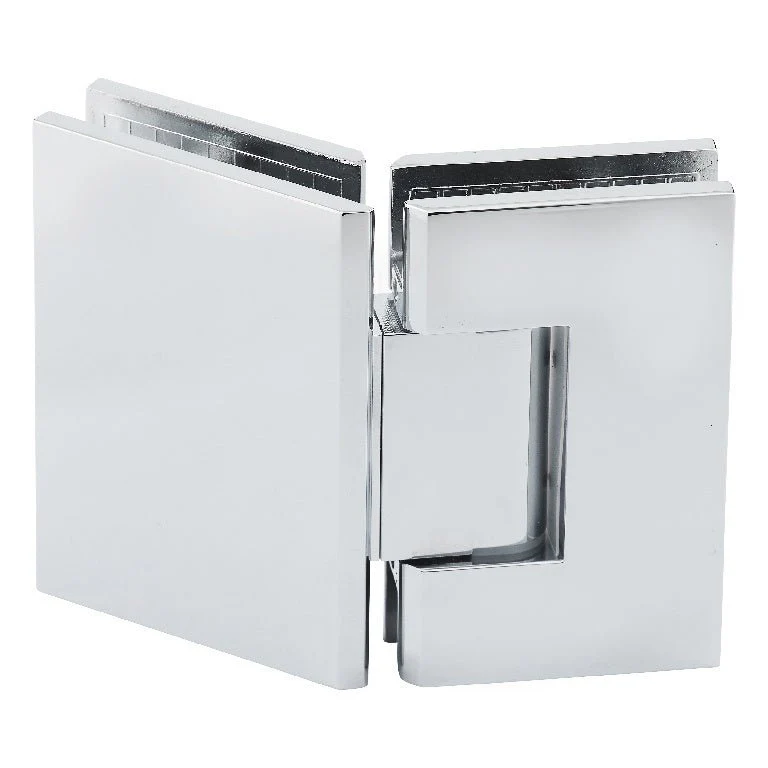

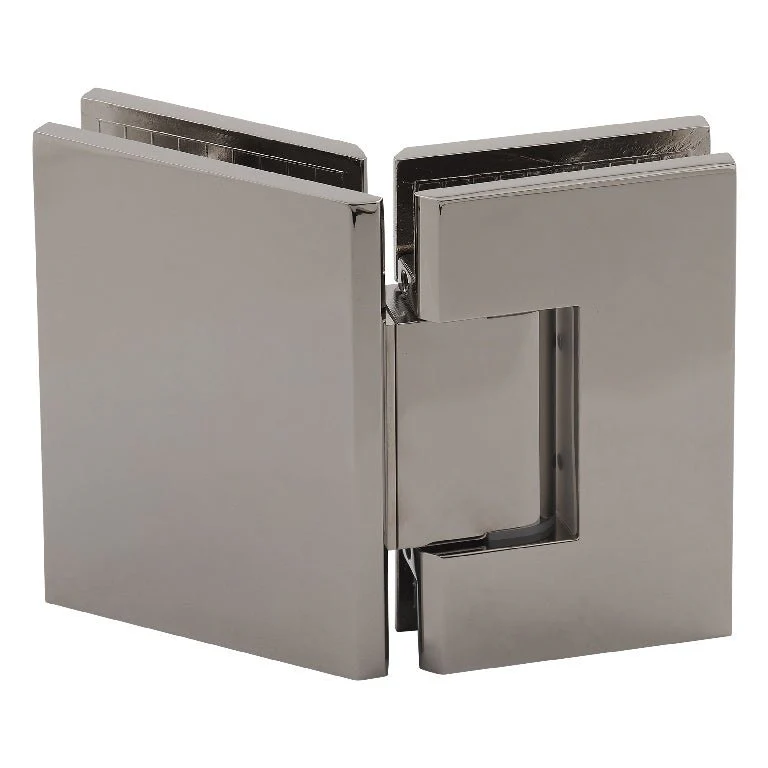

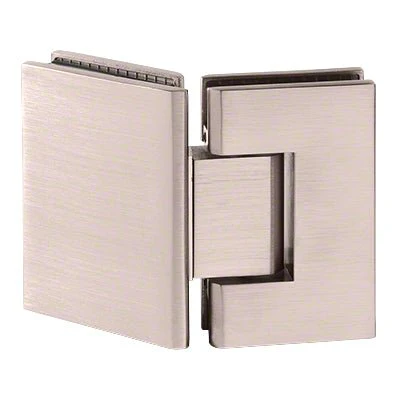

Designer 135 Degree Glass To Glass Hinge

• Adjustable Feature Allows for Adjustment of Door
• Closing Position After Installation
• Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
• Self-Centering 0° Return with Adjustment Up to 30° In or Out
• Solid Forged Brass Construction
• Precision Machined 300 Series Stainless Steel Components
• Dual Precision Wound Stainless Steel Return Springs
• Self-Closing from 25 Degrees
• Mouse Ear Design

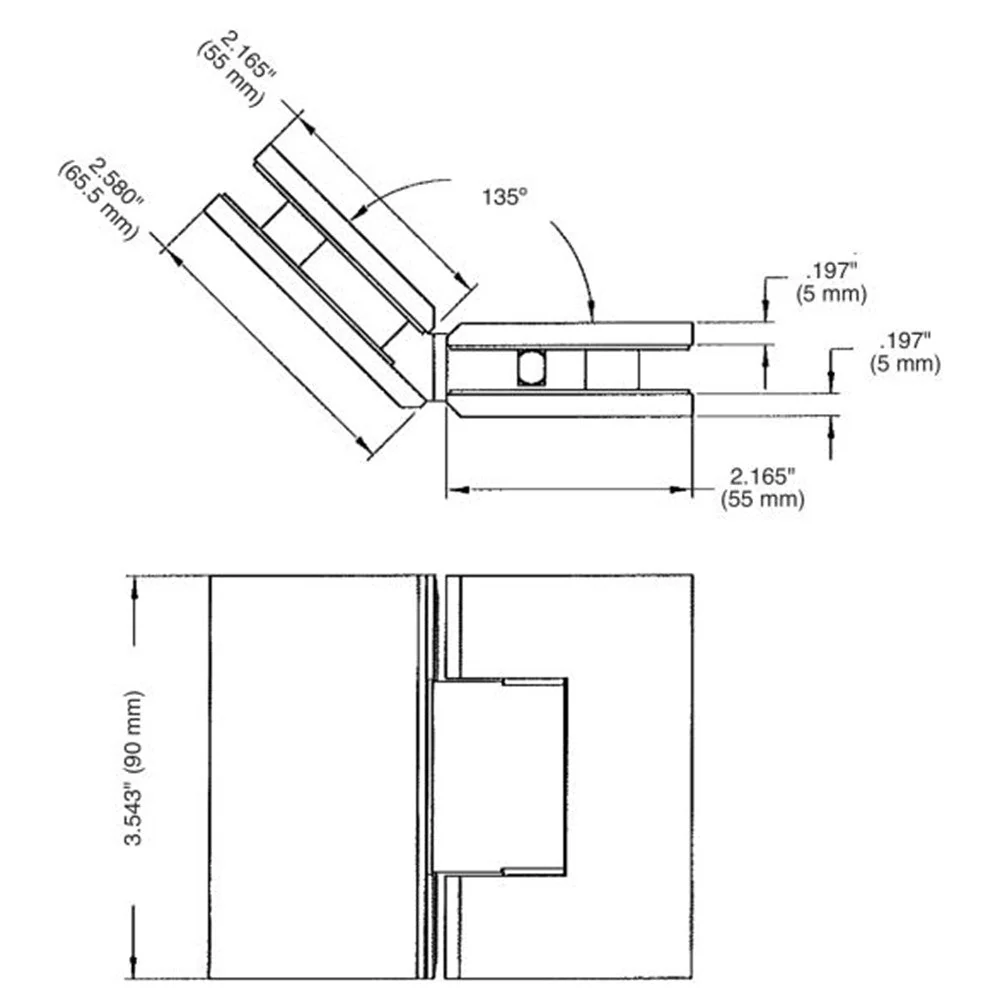

• Designed for 3/8" and 1/2" (10 and 12 mm) Glass
• Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
• Allen Wrench Included
• Rated at 40 lbs (18 kg) per Hinge

Additional Product Information: Using two hinges with 3/8" to 1/2" glass the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).

Steps:

1. Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning One circle counter-clockwise. Then proceed with the adjustment.
2. Once you have aligned the door, re-tighten two screws (B).
