Monaco 037 Series Wall Mount 'H' Back Plate Hinge
- Wall Mount 'H' Back Plate
- Precise Closing Feature to Zero Degrees
- Available in Several Beautiful Finishes
- 3 Year Warranty
TheĀ CRL Monaco SeriesĀ introduces charm, richness, and character to the choice of frameless shower door hinges using 1/4" (6 mm) to 5/16" (8 mm) safety glass. Available in five Wall Mount and six Glass-to-Glass styles, Monaco Hinges present numerous design and configuration options. Aesthetically pleasing beveled edges and corners give Monaco Hinges the look many architects and designers desire. Three distinct models stand out in the Monaco Series: The M0N244 and M0N044 models are Flush Back Plate Wall Mount Hinges that provide a clean exterior sight line because the mounting plate is visible only from the inside of the shower; the M0N181 Glass-to-Glass Hinge is used to mount a door to a fixed panel of glass in a 180 degree plane, and allows the door to swing out 180 degree and fold back on itself.
Using two hingesĀ with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hingesĀ with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
Special Features:Ā Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

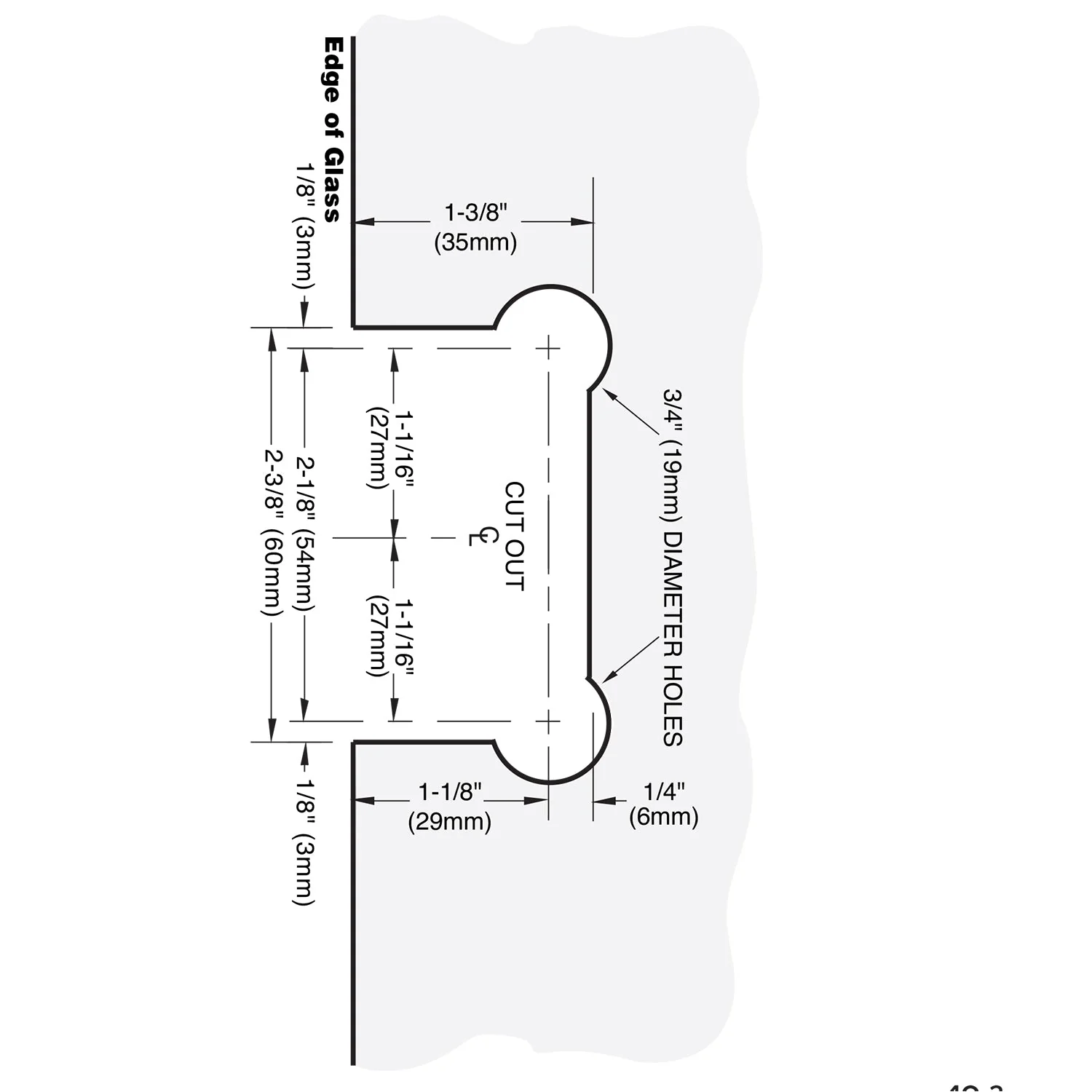

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Original: $122.54
-70%$122.54
$36.76Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Wall Mount 'H' Back Plate
- Precise Closing Feature to Zero Degrees
- Available in Several Beautiful Finishes
- 3 Year Warranty
TheĀ CRL Monaco SeriesĀ introduces charm, richness, and character to the choice of frameless shower door hinges using 1/4" (6 mm) to 5/16" (8 mm) safety glass. Available in five Wall Mount and six Glass-to-Glass styles, Monaco Hinges present numerous design and configuration options. Aesthetically pleasing beveled edges and corners give Monaco Hinges the look many architects and designers desire. Three distinct models stand out in the Monaco Series: The M0N244 and M0N044 models are Flush Back Plate Wall Mount Hinges that provide a clean exterior sight line because the mounting plate is visible only from the inside of the shower; the M0N181 Glass-to-Glass Hinge is used to mount a door to a fixed panel of glass in a 180 degree plane, and allows the door to swing out 180 degree and fold back on itself.
Using two hingesĀ with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hingesĀ with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
Special Features:Ā Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
