Geneva 245 Series 135 Degree Pony Wall Mount Hinge

Geneva 245 Series 135 Degree Pony Wall Mount Hinge

  • Self-Centering with Reversible 5 Degree Pivot Pin Custom Pivot Pin Available
  • Many Standard Finishes
  • 3 Year Warranty
  • Pony Wall Mount for 135 Degree Application
  • Use Monolithic Tempered Glass

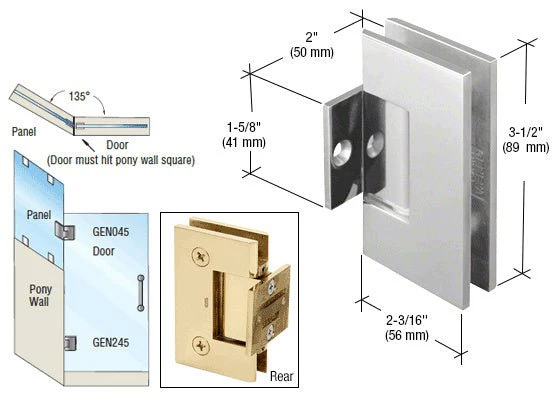

These CRL Geneva Pony Wall Mount Series hinges can be used in place of the standard wall-to-glass hinges normally utilized when using wall mount hinges on a pony wall, and glass-to-glass hinges above them. The GEN280 model is for use with 180 degree applications, while the GEN245 is for use with 135 degree applications. Previously in this application the tile or marble had to be cut to allow the wall mount hinge to be recessed. That adjustment aligned the pivot points between both hinges to allow proper installation. Geneva Pony Wall Mount Hinges are modified with a shortened center block (containing only one centering spring) and a small back plate (with only two mounting holes). Each hinge has the same Reversible 5 degree Pivot Pin as our standard Geneva Hinge.

NOTE: For 135 degree installations it is required that the face of the pony wall be at a 45 degree angle to the wall, and a 90 degree angle to the door plane.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Mounted to surface of tile or marble, as opposed to having to cut into wall to recess the back plate to vertically align pivot points.
Construction: Solid Brass
Hinge Swings: Approximately 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
