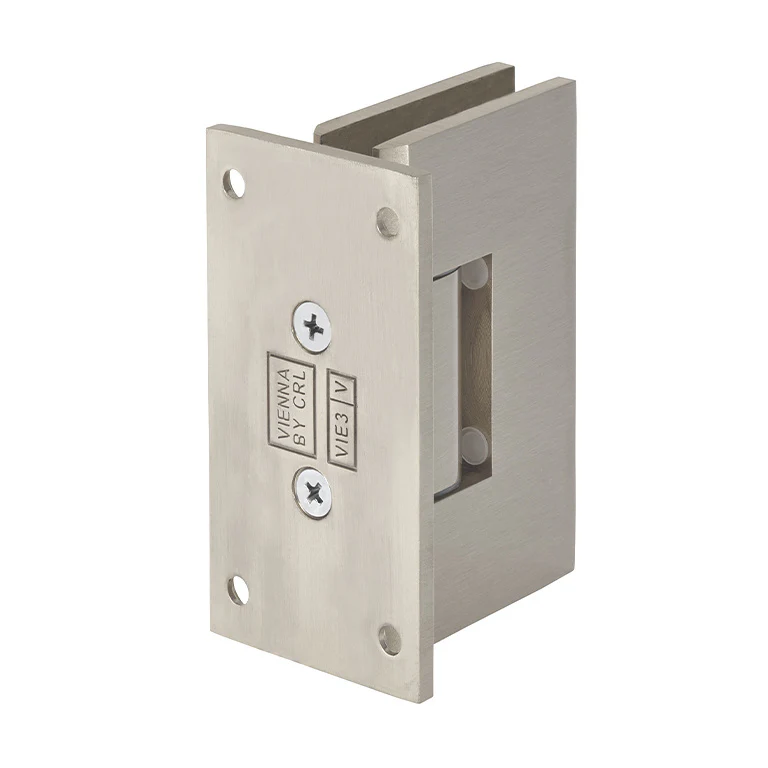

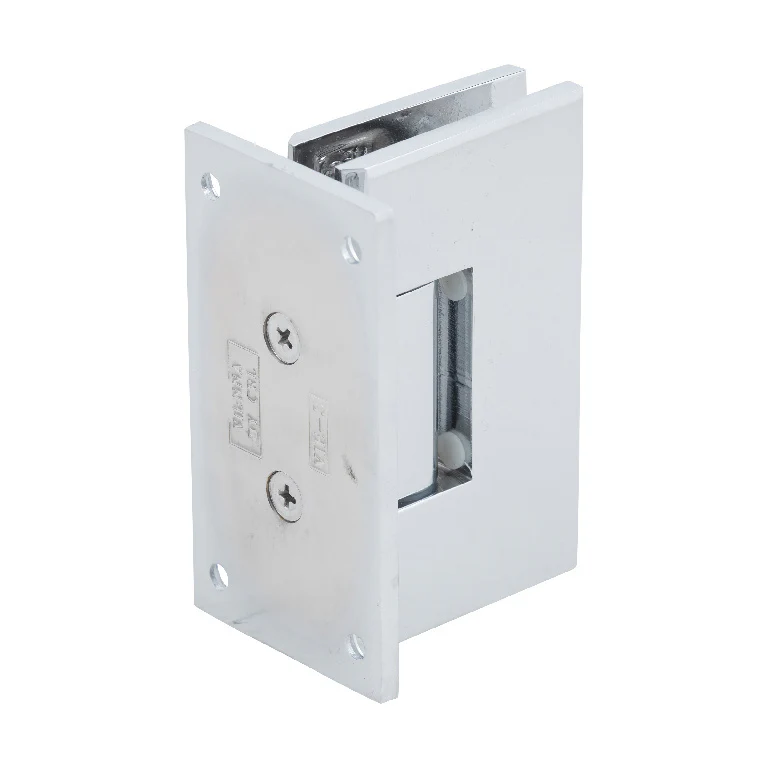

Vienna Wall Mount Full Back Plate Positive Close Hinge

• Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
• Stocked in Wall Mount and 180 Degree Glass-to-Glass Models
• Stocked in Four Most Popular Finishes
• Other Finishes Available Upon Special Order
• Use Monolithic Tempered Glass

The Positive Close Vienna Hinge contains an internal grooved pivot pin that allows the door a precise and positive closing action. This is a different closing action than the typical self-centering Vienna Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions

Custom finishes are available on request.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
