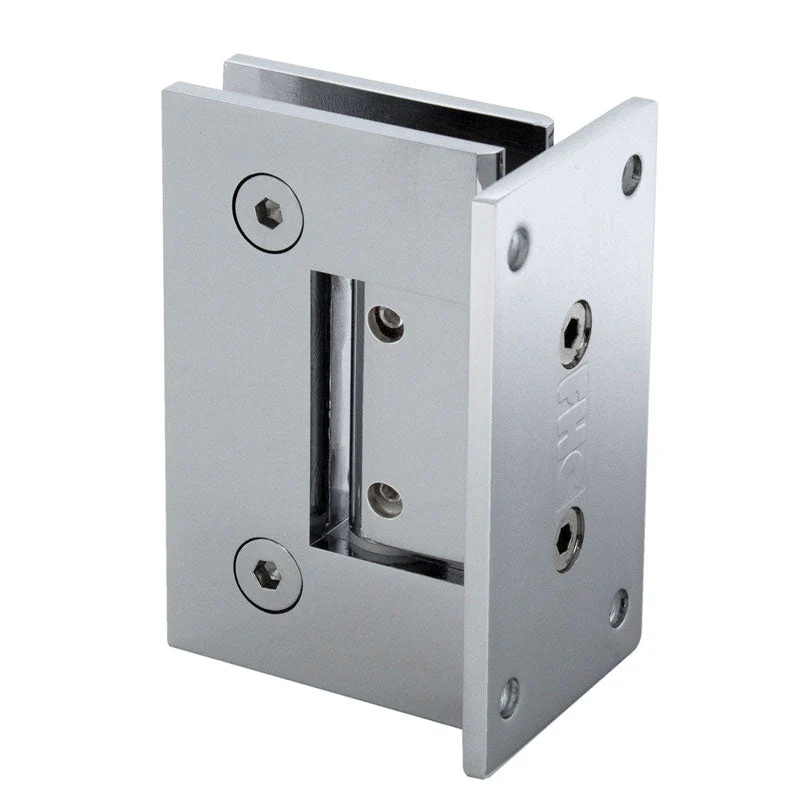

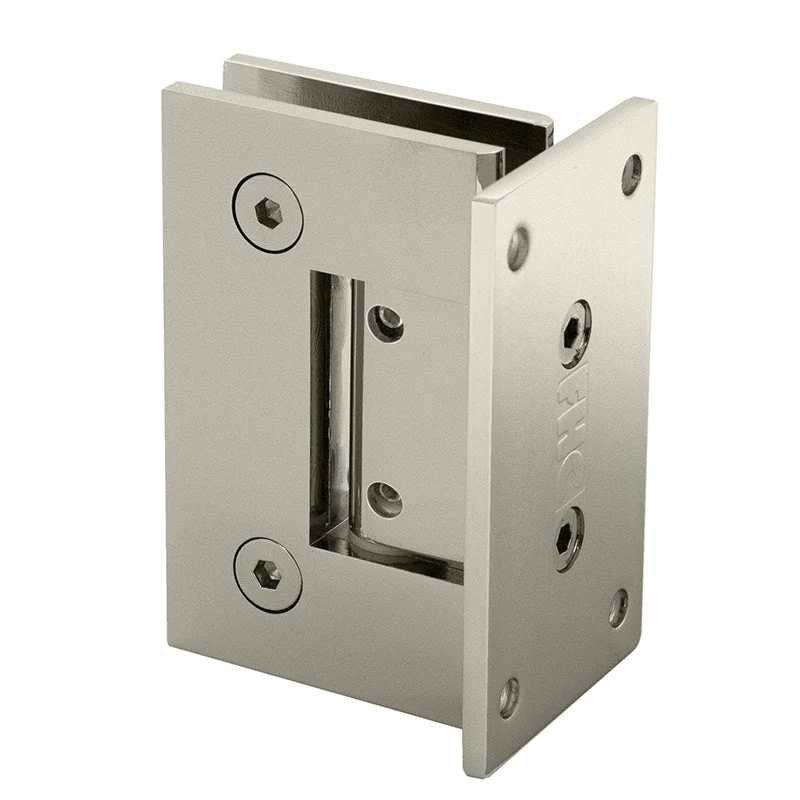

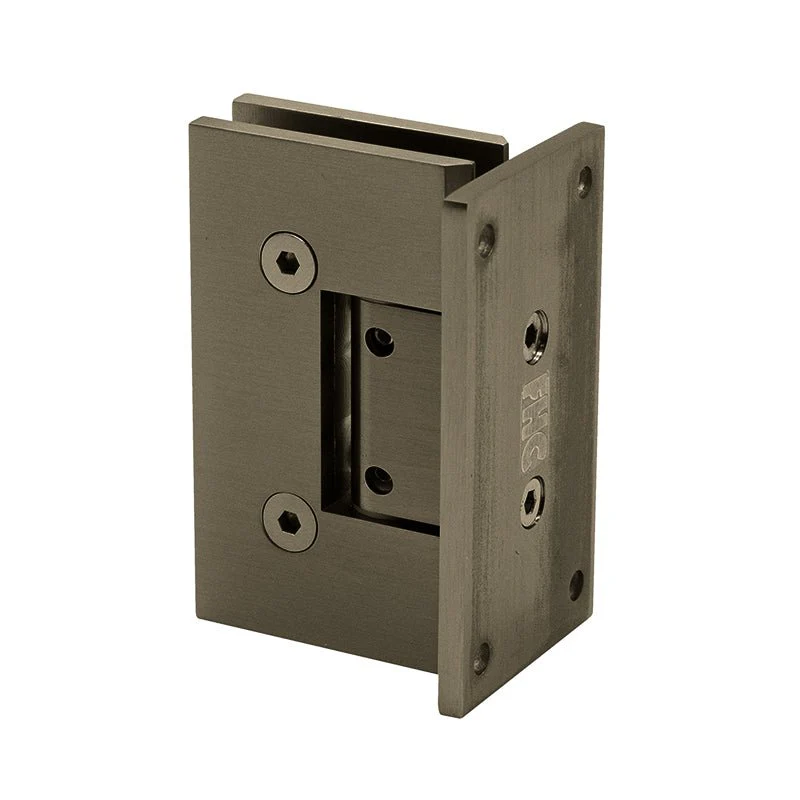

FHC Glendale Adjustable Wall Mount Hinge Full Back Plate

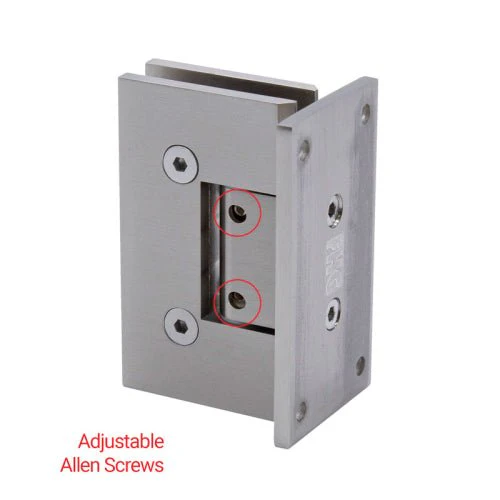

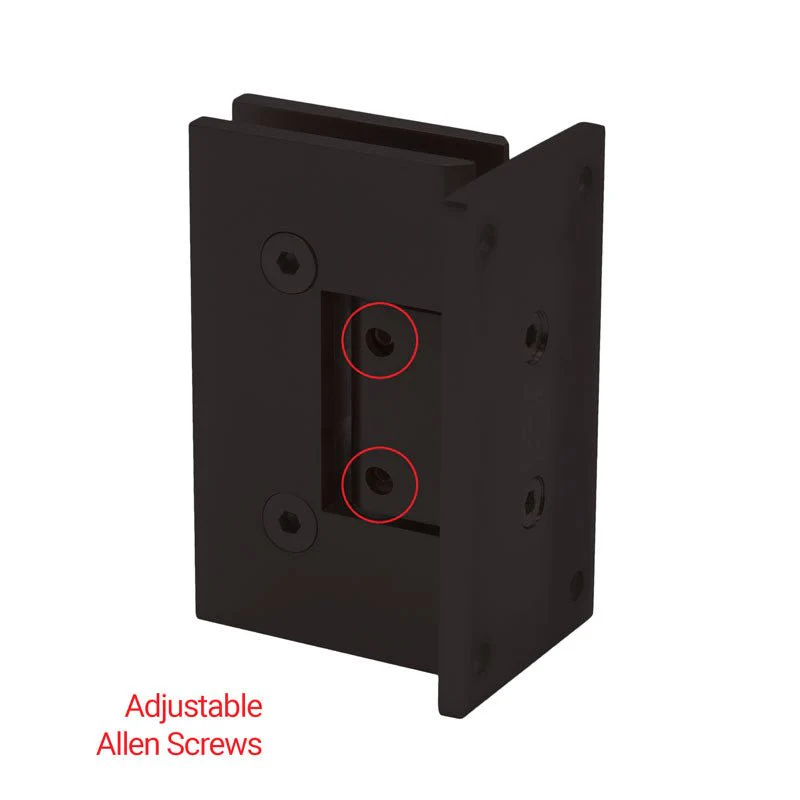

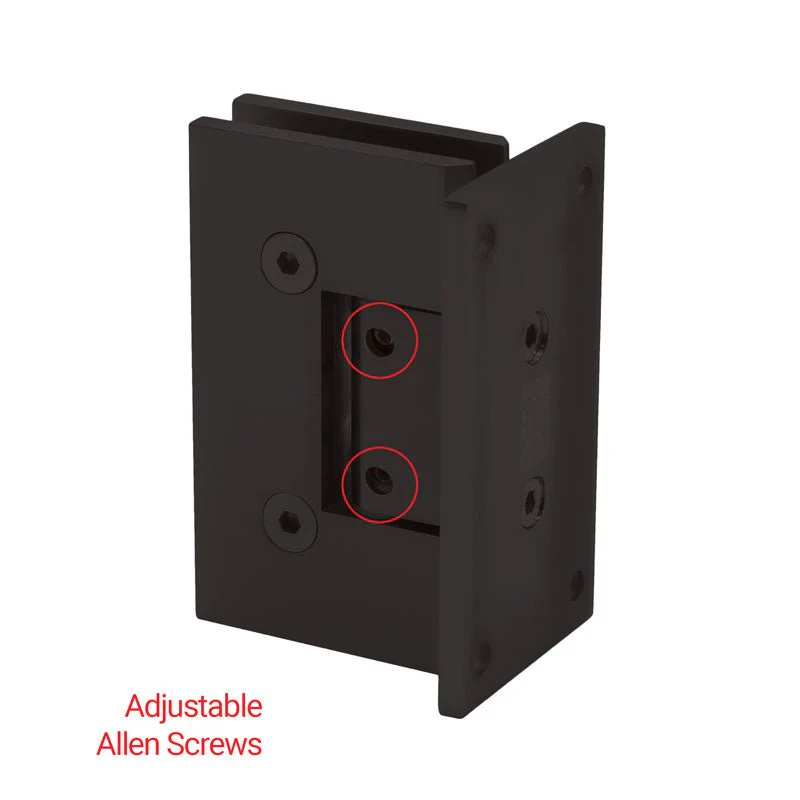

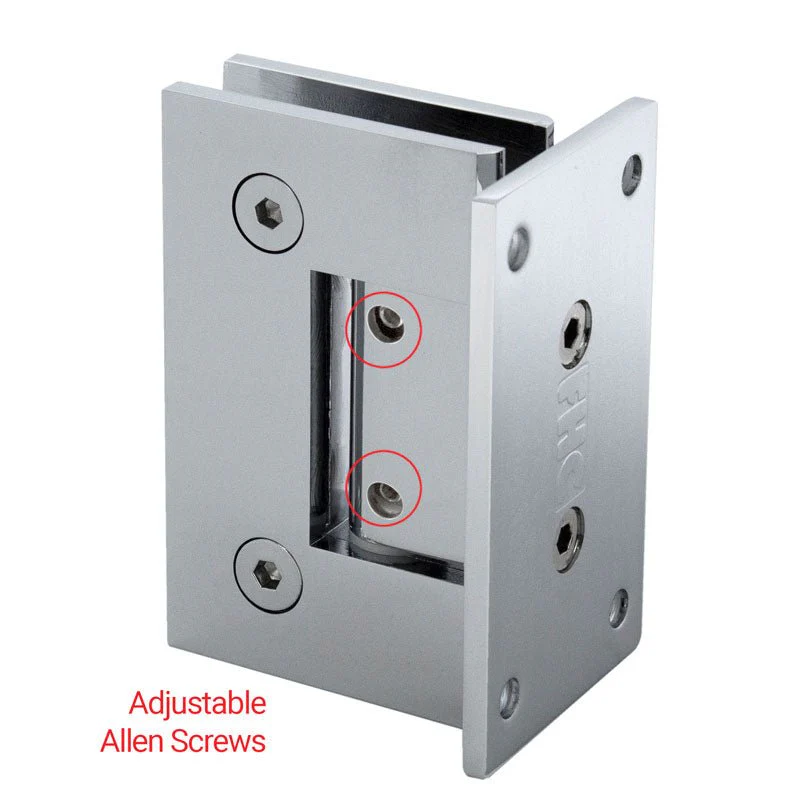

• Adjustable Up to 90 Degrees
• Can be Adjusted After Door is Installed
• Solid Brass Construction
• Use with Tempered Glass
• Replacement Screws PS102 and PS103 are Available as Needed
• Can be used with Hinge Limit Plates HLP25 and HLP40

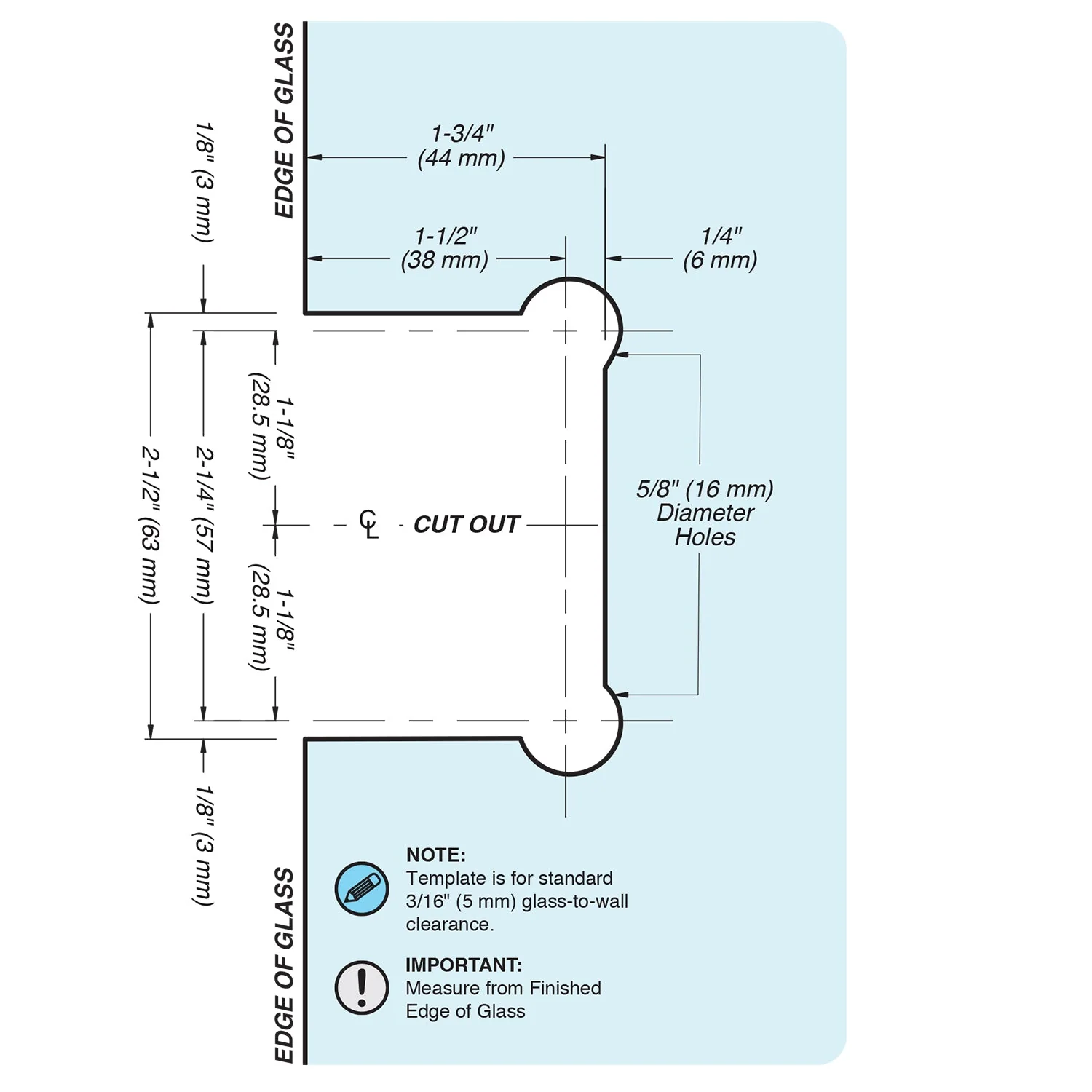

Glass Specifications:

MAXIMUM DOOR CAPACITY	3/8" (10 mm) GLASS Approx. 5 lb./ft²	1/2" (12 mm) GLASS Approx. 6.4 lb./ft²
	DOOR WEIGHT	DOOR WIDTH
Using 2 Hinges	80 LBS (36 kg)	28" (711 mm)
Using 3 Hinges	120 LBS. (54 kg)	32" (813 mm)

NOTE: Do Not Exceed either maximum weight or width when choosing the proper quantity of hinges.
