Adjustable Wall Mount Offset Back Plate Hinge

• Adjustable to Any Angle up to 90 Degree without Having to Take Door Down
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

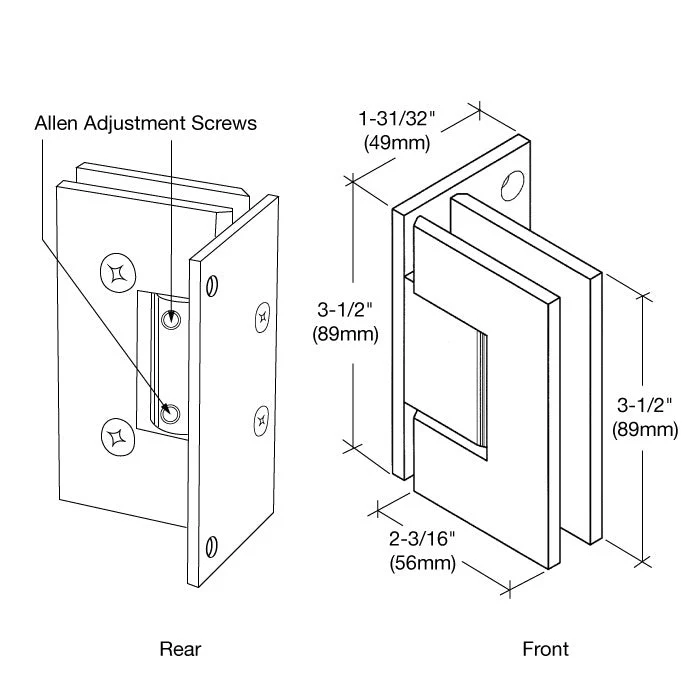

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.

Special Features: Adjustable to any angle up to 90 degree without having to take door down.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
