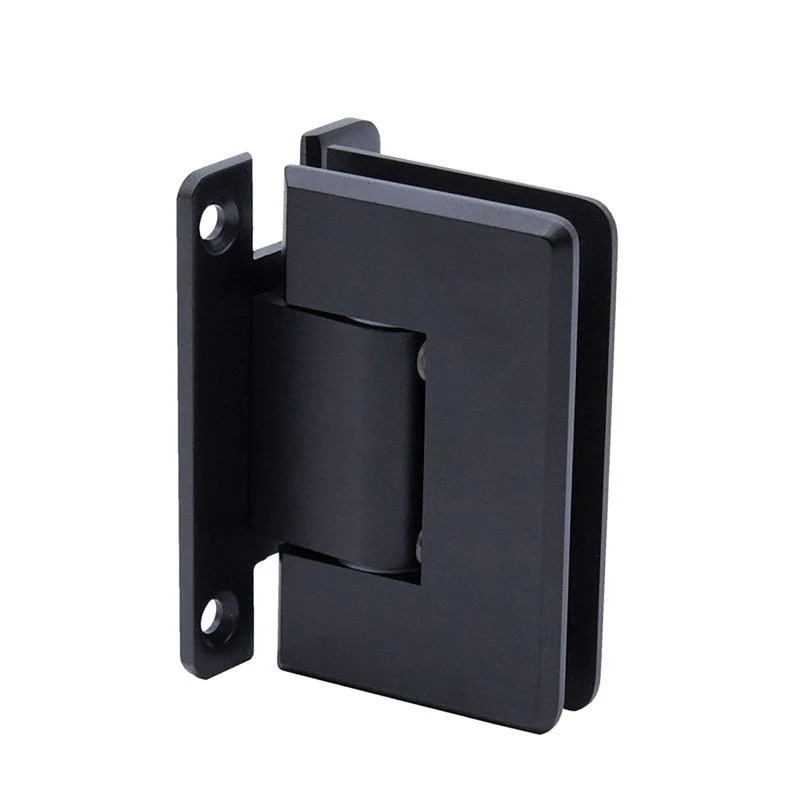

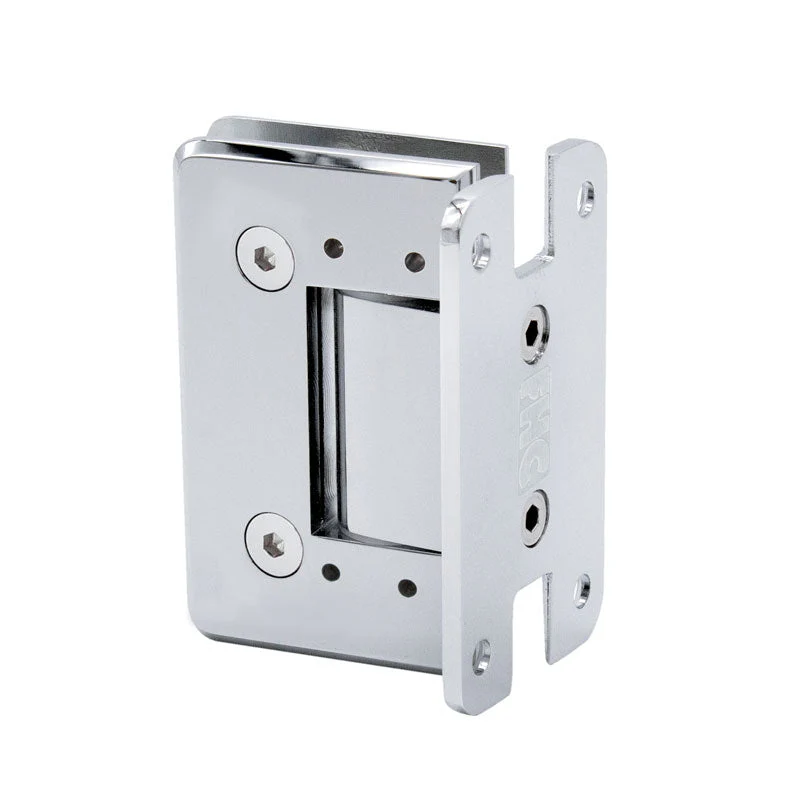

FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate
- Adjustable Up to 90 Degrees
- Can be Adjusted After Door is Installed
- Solid Brass Construction
- Use with Tempered Glass
- Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate |
|---|---|
| Item No | CLNA4 |
| Compare To | C0L337BN |
| Minimum Order | 1 Each |
Select Finish
From $33.52
Original: $111.74
-70%FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate—
$111.74
$33.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Adjustable Up to 90 Degrees
- Can be Adjusted After Door is Installed
- Solid Brass Construction
- Use with Tempered Glass
- Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb/ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb/ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 110 LBS (50 kg) | 36" (914 mm) |
| Using 3 Hinges | 140 LBS. (64 kg) | 36" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
| Product Name | FHC Carolina Beveled Wall Mount Hinge Adjustable Full Back Plate |
|---|---|
| Item No | CLNA4 |
| Compare To | C0L337BN |
| Minimum Order | 1 Each |
