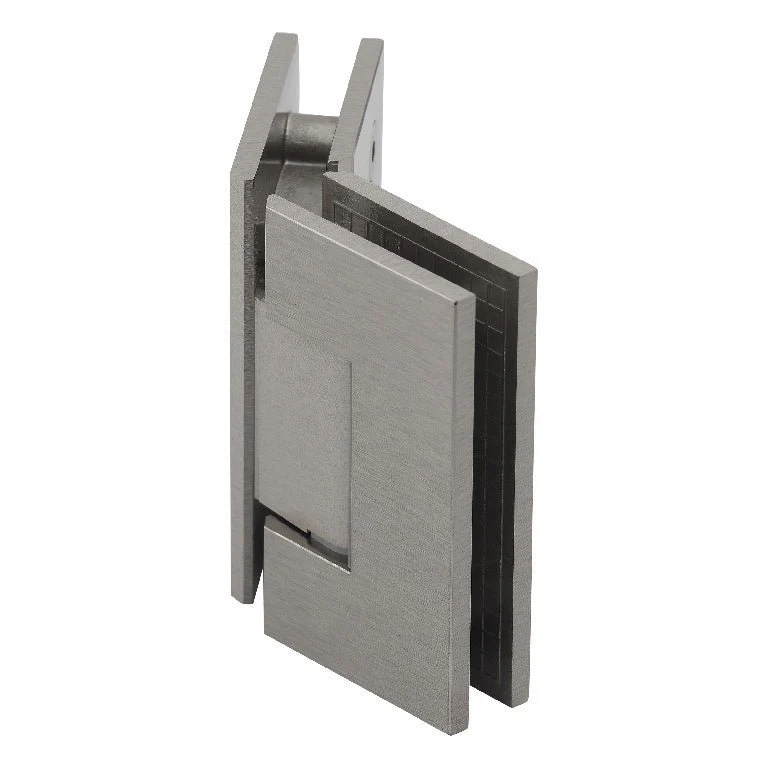

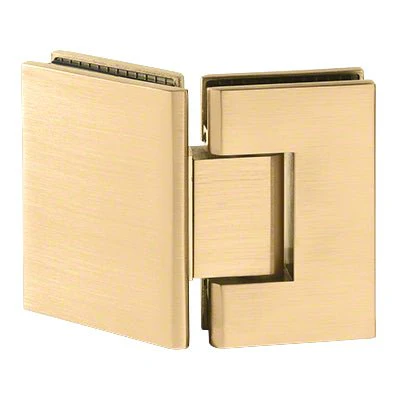

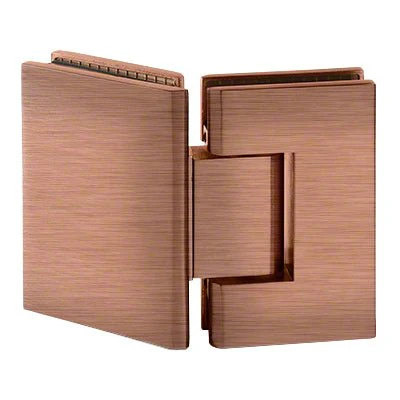

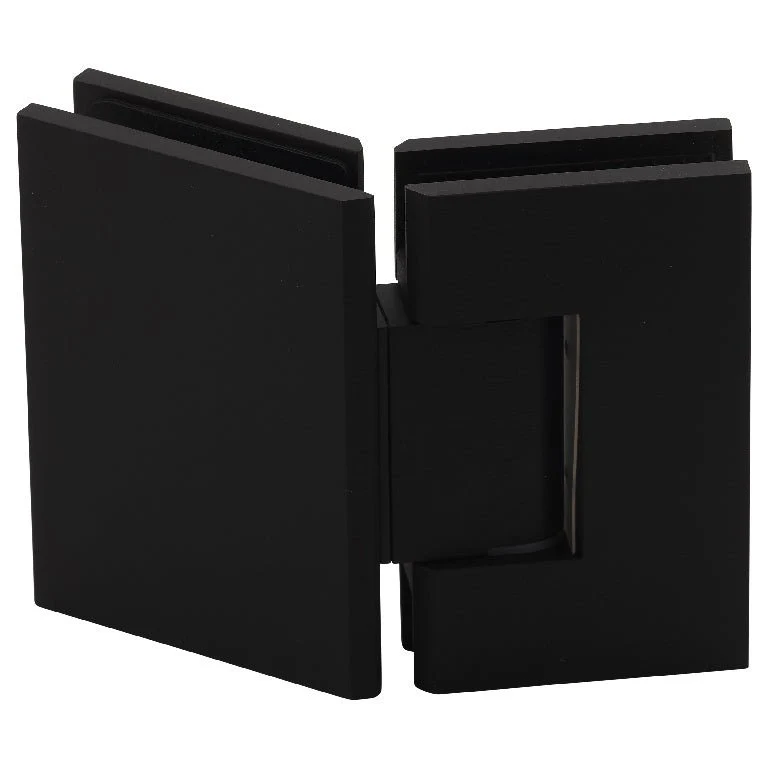

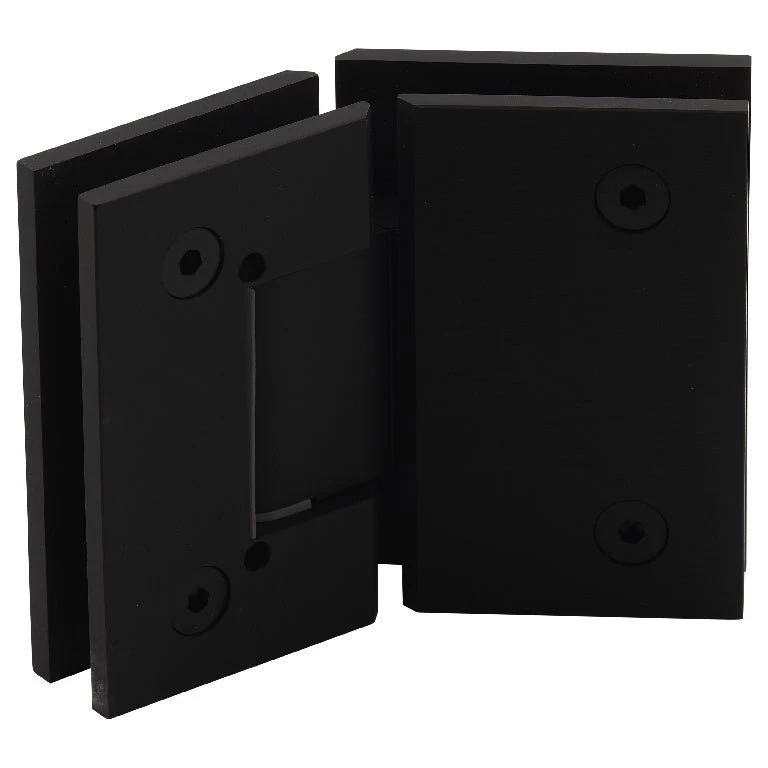

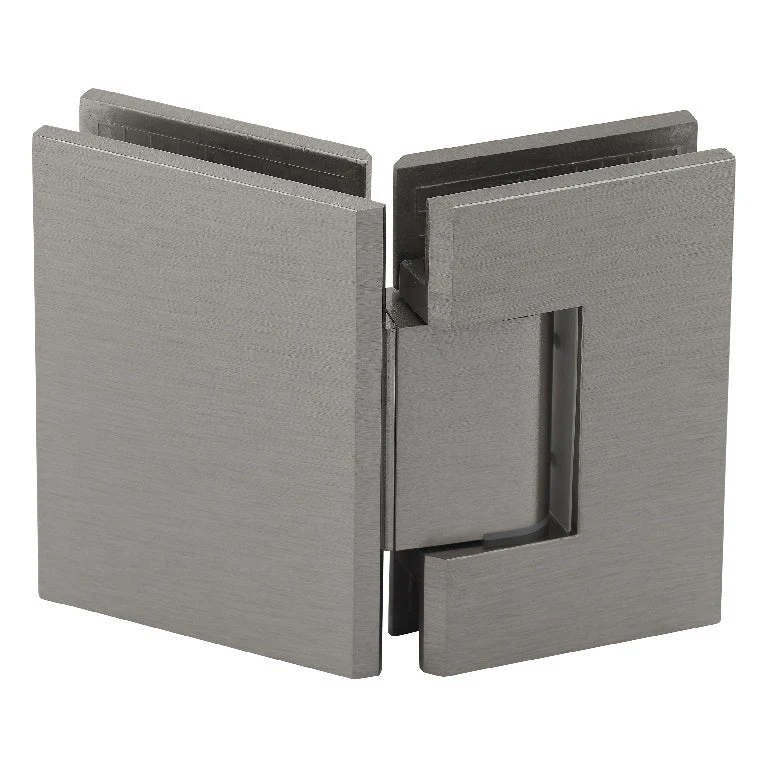

Designer Adjustable 135 Degree Glass To Glass Hinge
- Adjustable Feature Allows for Adjustment of Door
- Closing Position After Installation
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with Adjustment Up to 30° In or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" (10 and 12 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 40 lbs (18 kg) per Hinge
Additional Product Information: Using two hinges with 3/8" to 1/2" glass the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).
The Adjustable Designer 135° Glass-to-Glass Hinge has taken our popular Designer Hinge to a new level. Adjustment to accommodate the desired angle (up to 30º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 30º inward and 30º outward (adjusting angle from factory set position will reduce 30º swing in that direction).
Select Color
From $47.40
Original: $158.00
-70%Designer Adjustable 135 Degree Glass To Glass Hinge—
$158.00
$47.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Adjustable Feature Allows for Adjustment of Door
- Closing Position After Installation
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with Adjustment Up to 30° In or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" (10 and 12 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 40 lbs (18 kg) per Hinge
Additional Product Information: Using two hinges with 3/8" to 1/2" glass the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).
The Adjustable Designer 135° Glass-to-Glass Hinge has taken our popular Designer Hinge to a new level. Adjustment to accommodate the desired angle (up to 30º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 30º inward and 30º outward (adjusting angle from factory set position will reduce 30º swing in that direction).
