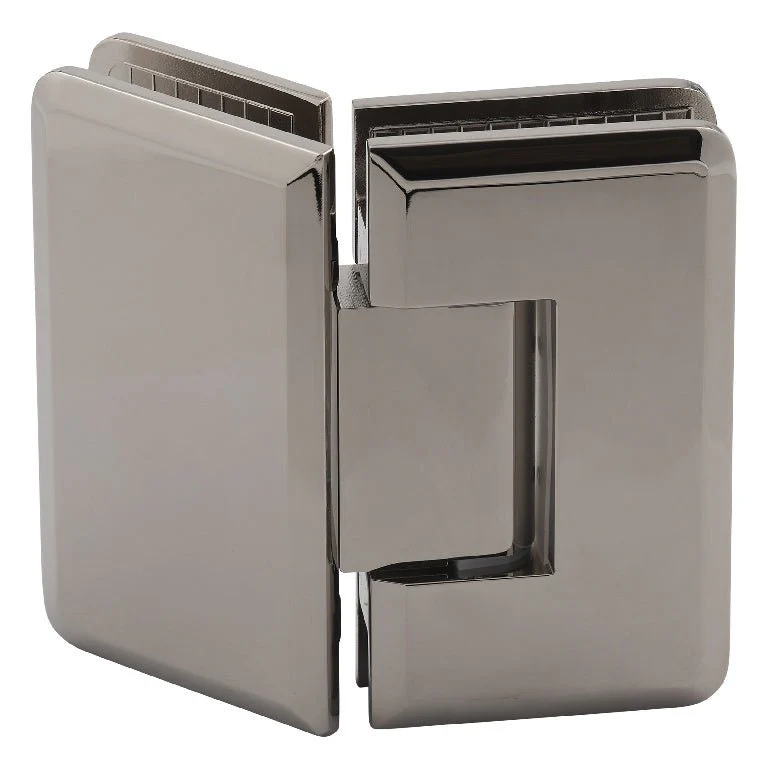

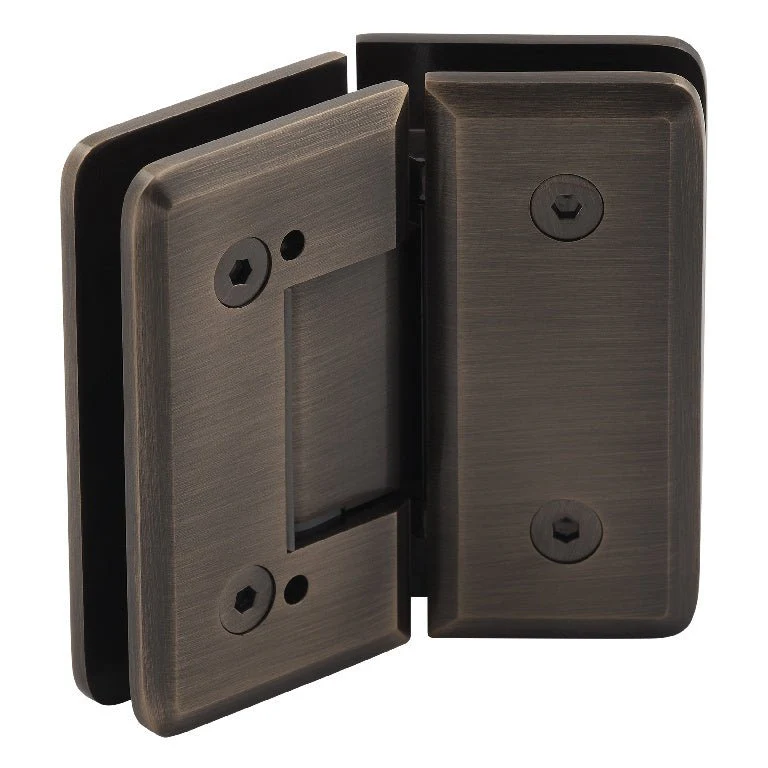

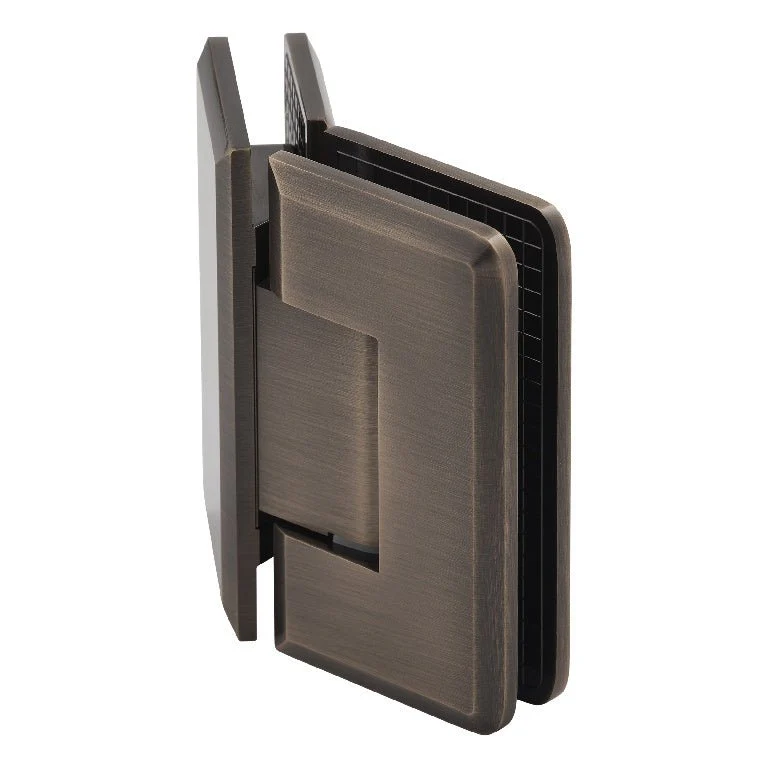

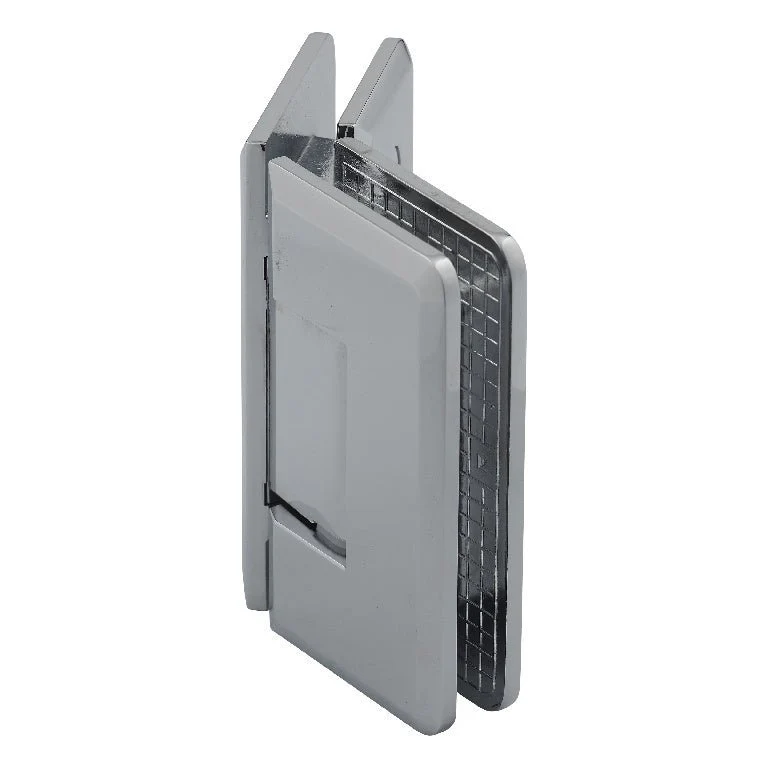

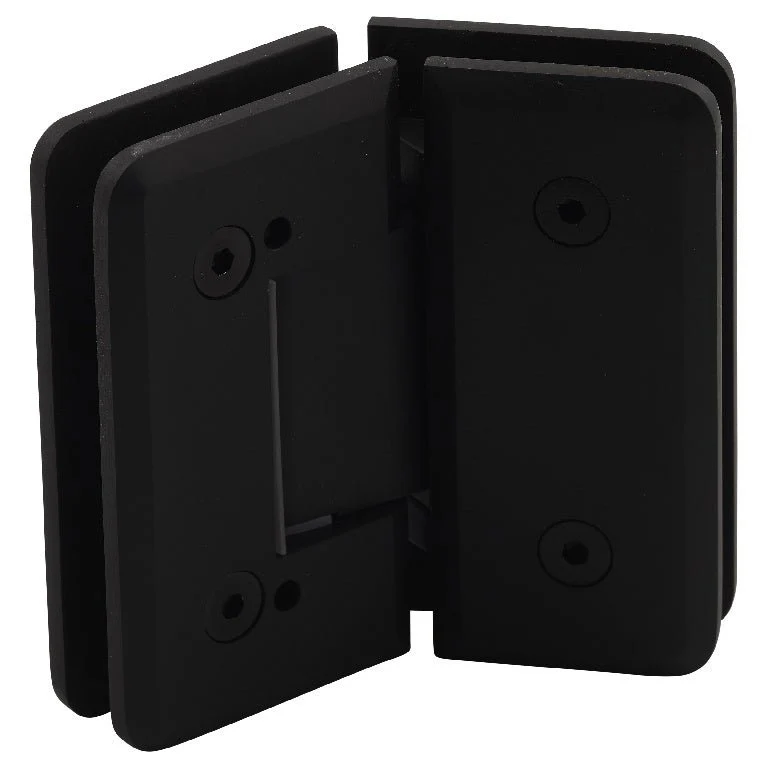

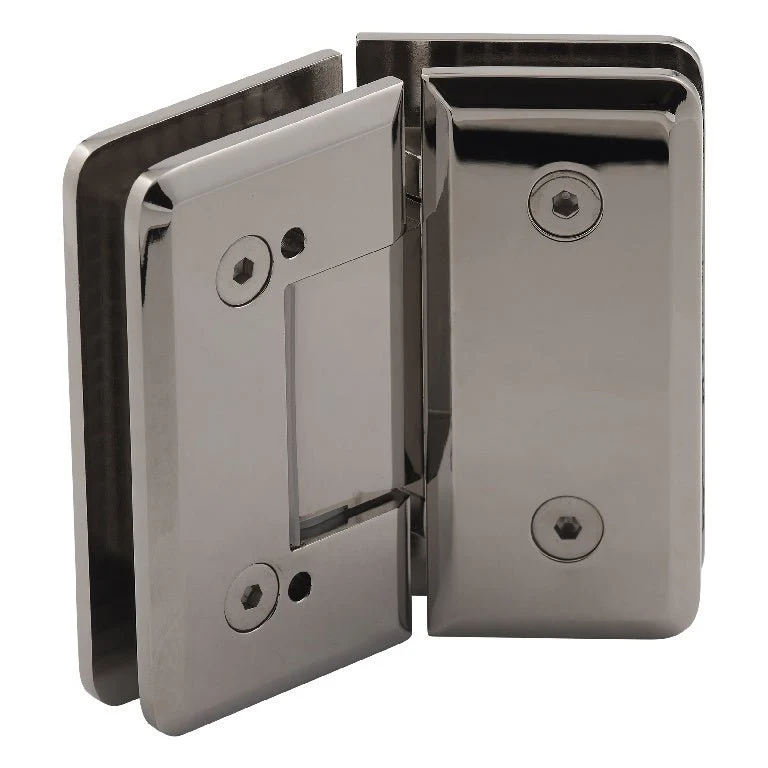

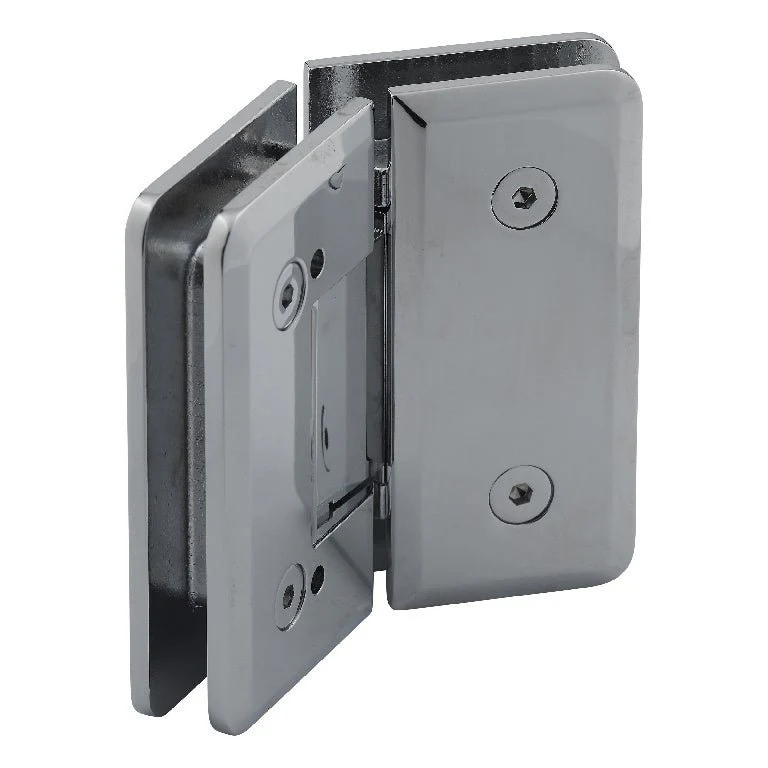

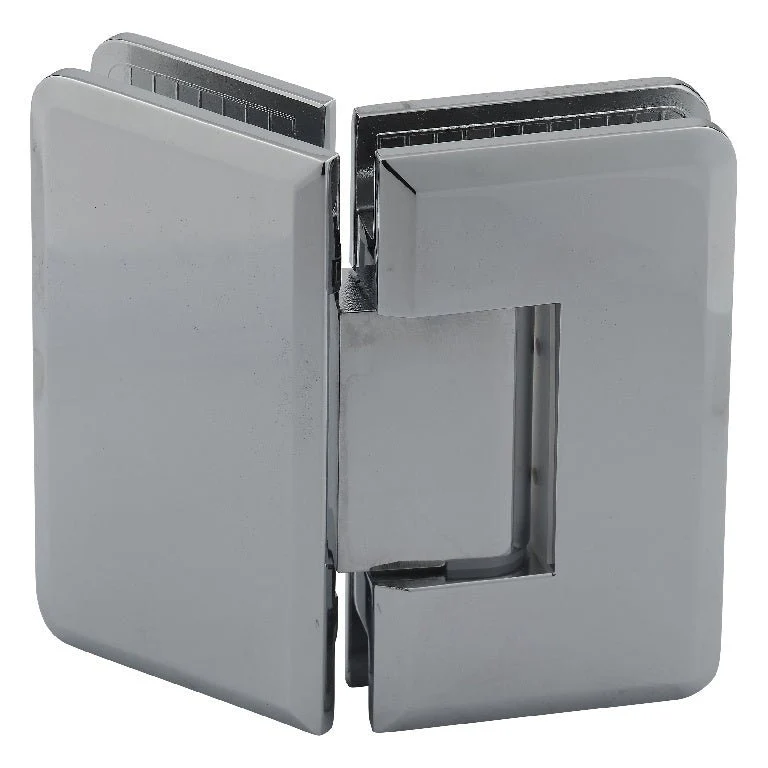

135° Glass-to-Glass Adjustable Majestic Series Hinge
- Adjustable Feature Allows for Adjustment of Door Closing Position After Installation
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with Adjustment Up to 30° In or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Non-Mouse Ear Design for Added Adjustment
- Designed for 3/8" and 1/2" (10 and 12 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 50 lbs (22.5 kg) per Hinge
ADDITIONAL PRODUCT INFORMATION: Using Two Hinges with 3/8" to 1/2" Glass the Hinge Will Hold Up to 100 lbs with a Maximum Door Width of 36". Using Three Hinges with 3/8" to 1/2" Glass the Hinge Will Hold Up to 150 lbs with a Maximum Door Width of 36".
Adjustable Angle Instructions Steps: 1. Use 3mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws (B).
Original: $205.94
-70%$205.94
$61.78Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Adjustable Feature Allows for Adjustment of Door Closing Position After Installation
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with Adjustment Up to 30° In or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Non-Mouse Ear Design for Added Adjustment
- Designed for 3/8" and 1/2" (10 and 12 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 50 lbs (22.5 kg) per Hinge
ADDITIONAL PRODUCT INFORMATION: Using Two Hinges with 3/8" to 1/2" Glass the Hinge Will Hold Up to 100 lbs with a Maximum Door Width of 36". Using Three Hinges with 3/8" to 1/2" Glass the Hinge Will Hold Up to 150 lbs with a Maximum Door Width of 36".
Adjustable Angle Instructions Steps: 1. Use 3mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws (B).
