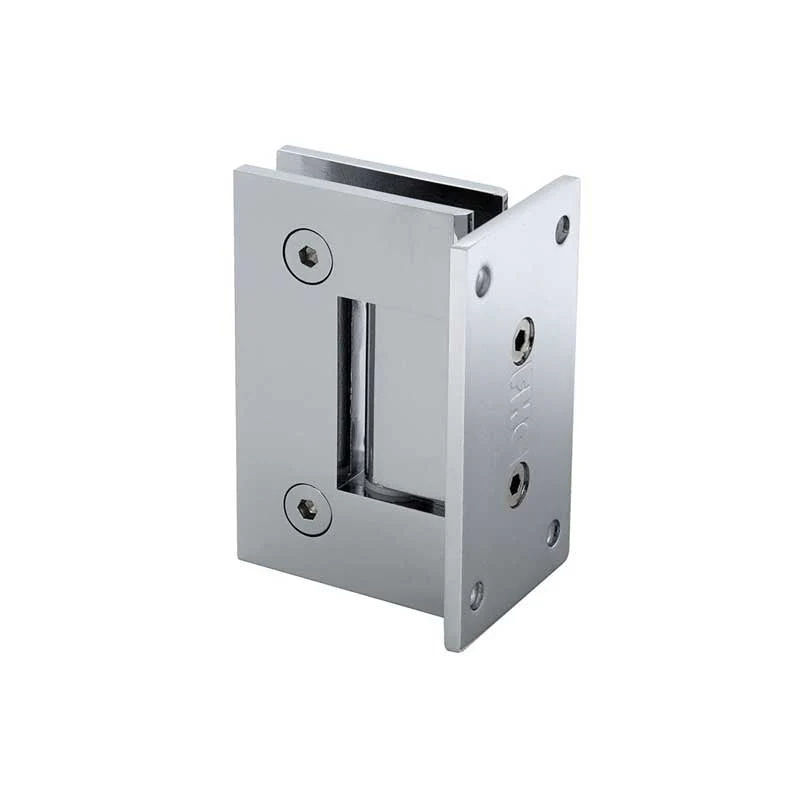

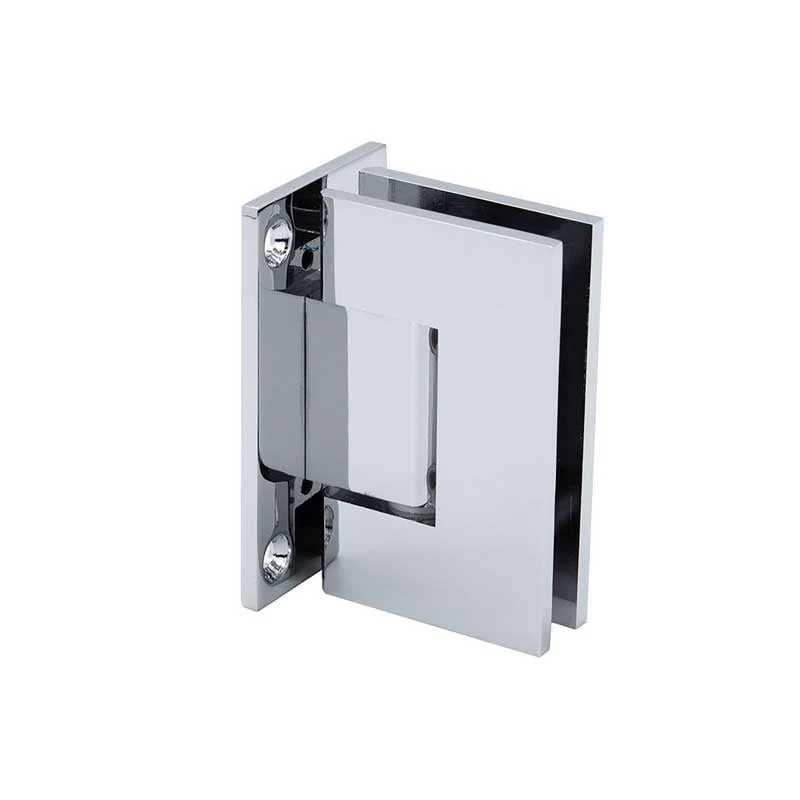

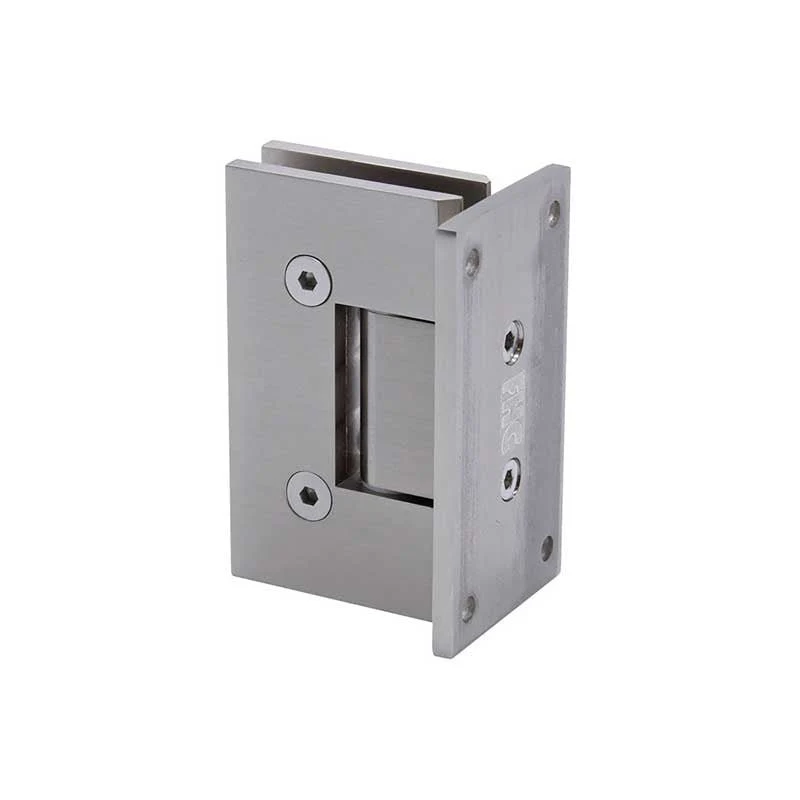

FHC Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate

FHC Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate

  • For 1/4" to 5/16" Glass
  • Square Body Profile
  • Solid Brass Construction
  • Preset 5 Degree Pivot Pin on Select Models
  • Self-Centering Within 15 Degrees of Closing Position
  • Available in Multiple Finishes

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb/ft²		 1/2" (12 mm) GLASS
Approx. 6.4 lb/ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 55 LBS (36 kg) 32" (813 mm)
Using 3 Hinges 85 LBS. (54 kg) 36" (914 mm)


NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.

Select Finish
From $13.50

Original: $45.00

-70%
FHC Junior Glendale Square 5 Degree Wall Mount Hinge Full Back Plate—

$45.00

$13.50

Product Information

Shipping & Returns

Description

  • For 1/4" to 5/16" Glass
  • Square Body Profile
  • Solid Brass Construction
  • Preset 5 Degree Pivot Pin on Select Models
  • Self-Centering Within 15 Degrees of Closing Position
  • Available in Multiple Finishes

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb/ft²		 1/2" (12 mm) GLASS
Approx. 6.4 lb/ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 55 LBS (36 kg) 32" (813 mm)
Using 3 Hinges 85 LBS. (54 kg) 36" (914 mm)


NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
