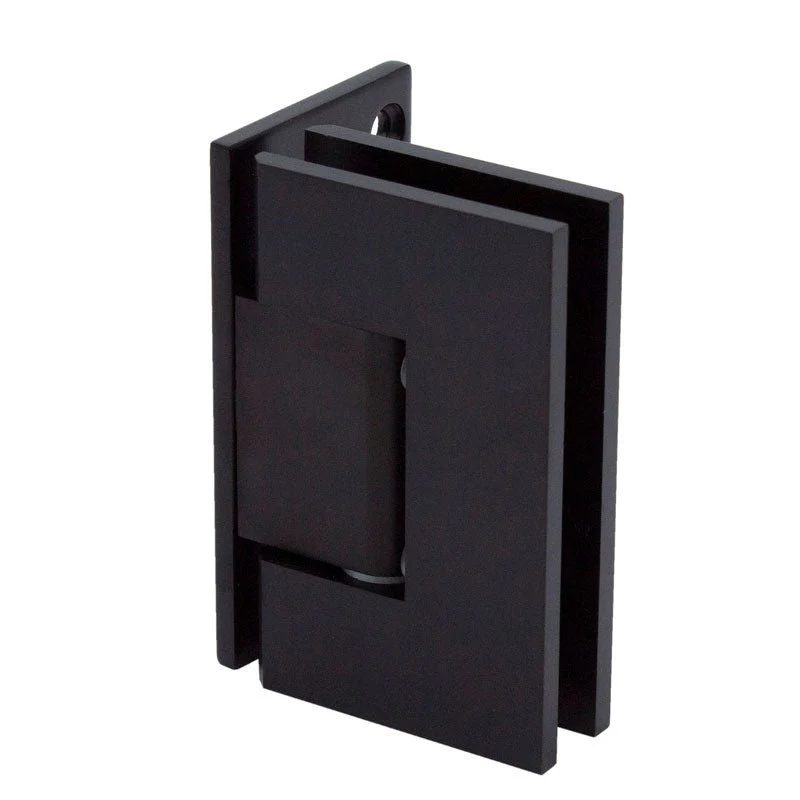

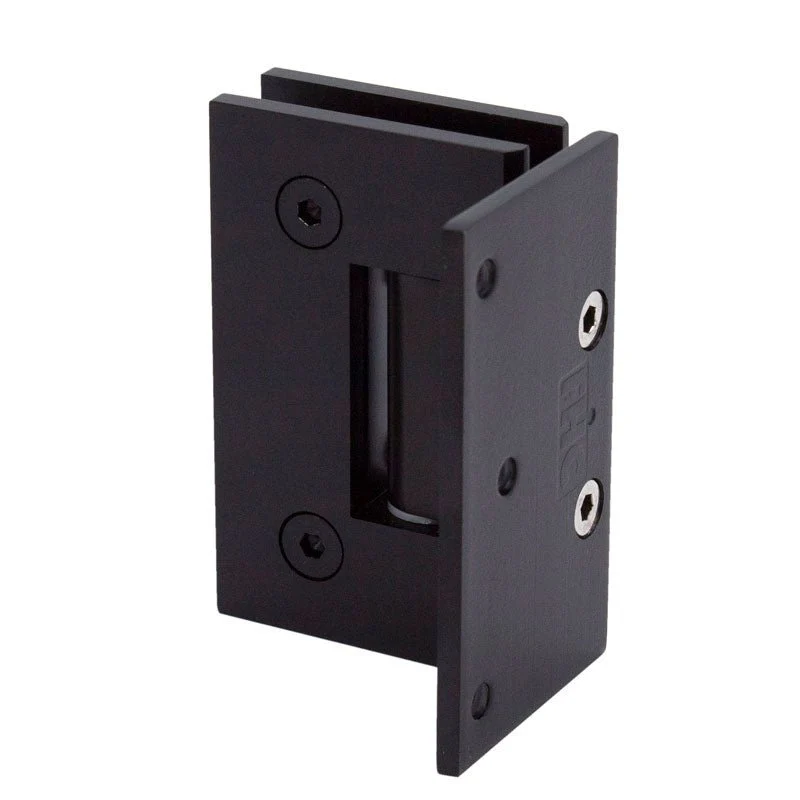

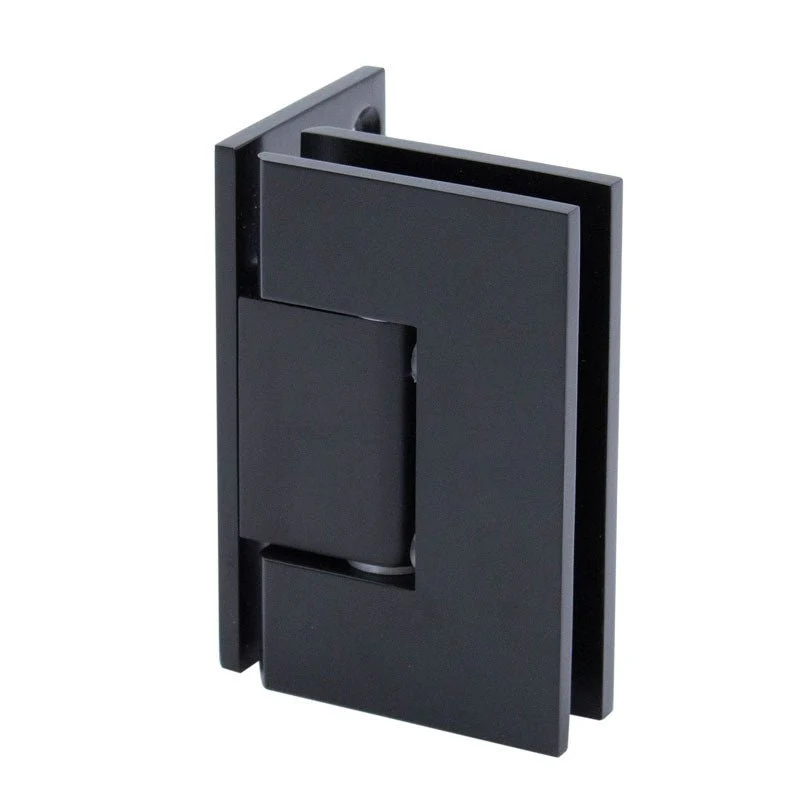

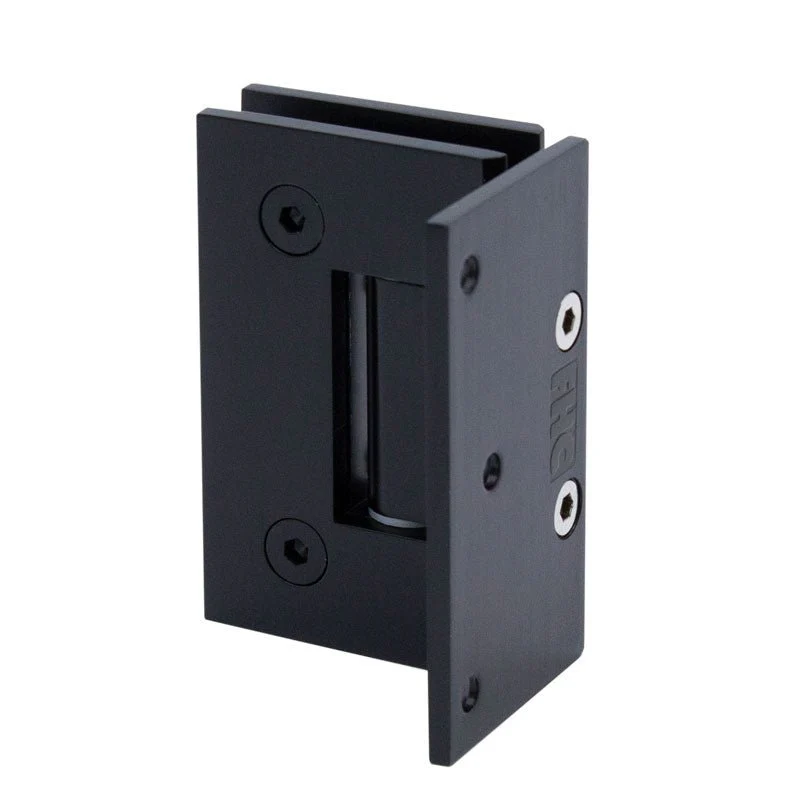

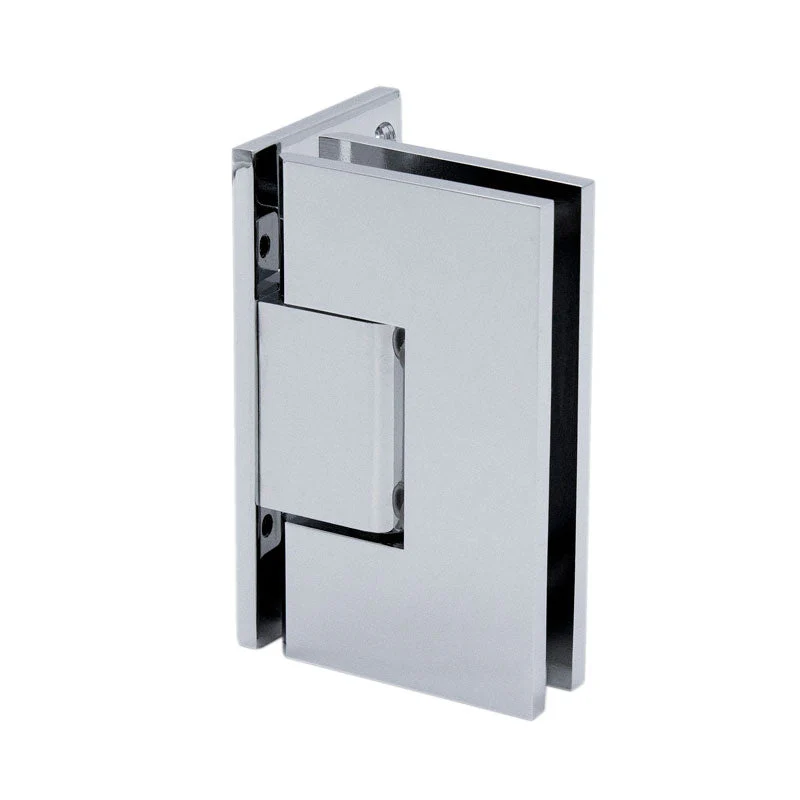

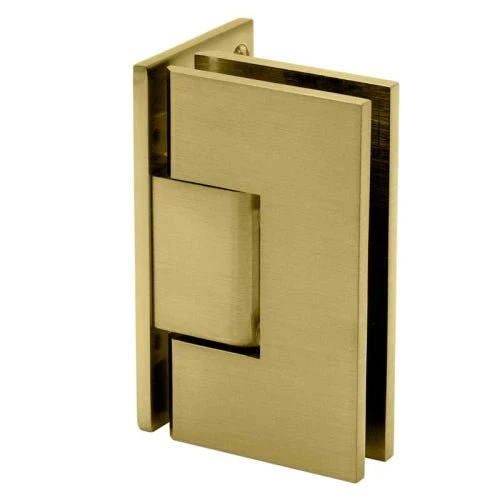

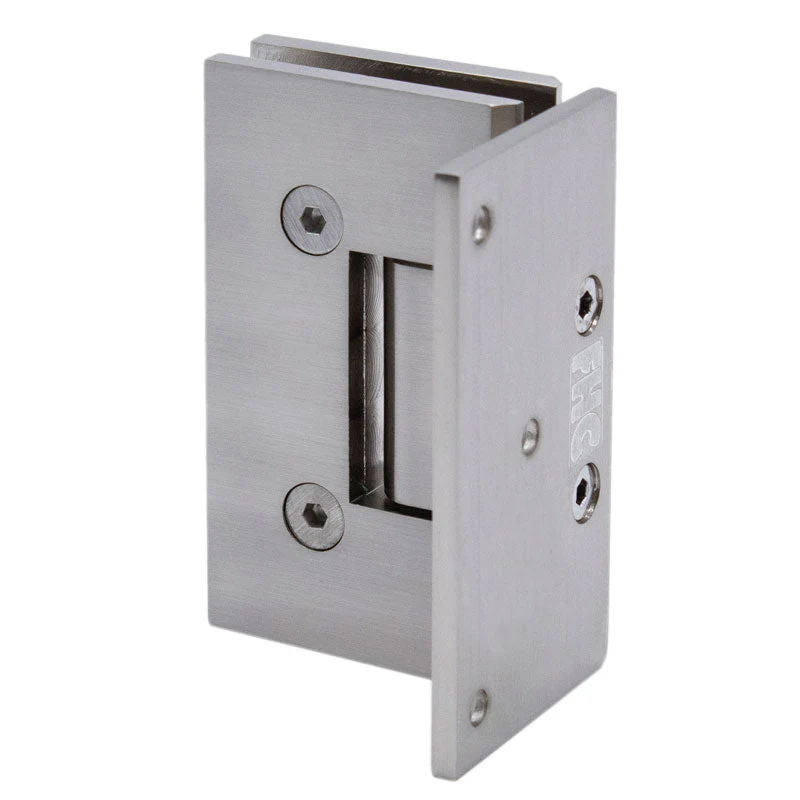

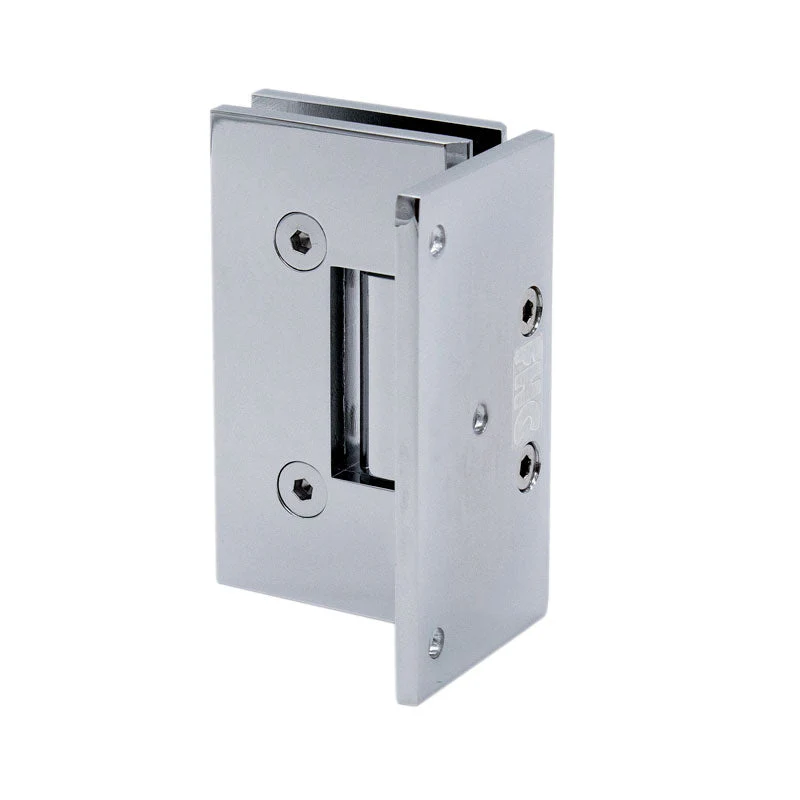

FHC Glendale Square 5 Degree Positive Close Wall Mount Offset Back Plate

FHC Glendale Square 5 Degree Positive Close Wall Mount Offset Back Plate

  • Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
  • Solid Brass Construction
  • Preset 5 Degree Pivot Pin
  • Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb/ft²		 1/2" (12 mm) GLASS
Approx. 6.4 lb/ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 80 LBS (36 kg) 28" (711 mm)
Using 3 Hinges 120 LBS. (54 kg) 32" (813 mm)


NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.

Select Finish
From $16.55

Original: $55.16

-70%
FHC Glendale Square 5 Degree Positive Close Wall Mount Offset Back Plate—

$55.16

$16.55

Product Information

Shipping & Returns

Description

  • Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
  • Solid Brass Construction
  • Preset 5 Degree Pivot Pin
  • Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb/ft²		 1/2" (12 mm) GLASS
Approx. 6.4 lb/ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 80 LBS (36 kg) 28" (711 mm)
Using 3 Hinges 120 LBS. (54 kg) 32" (813 mm)


NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
