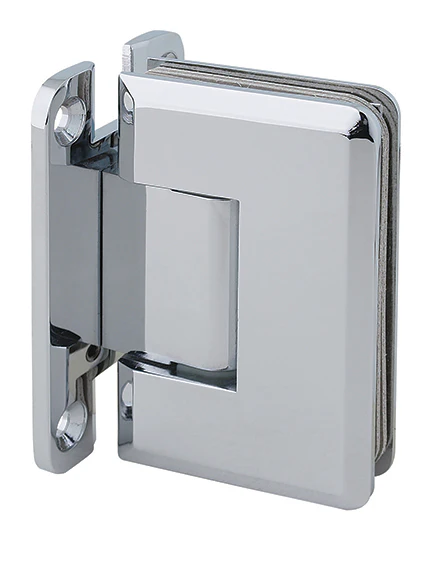

Wall to Glass Bevelled Shower Hinge for Frameless Heavy Glass Shower Doors

Wall to Glass Shower door hinge fits 3/8″ to 1/2″ thick Tempered Glass
Shower door hinges for glass shower doors

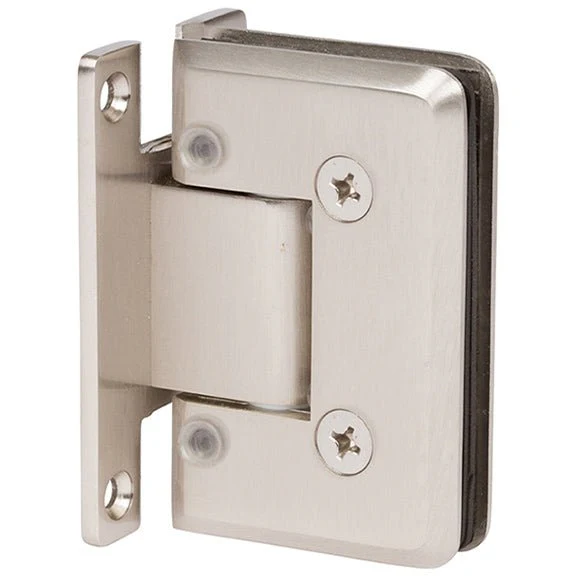

Bevelled Corners with Full H type Backplate
Preset at Zero degree standard Inline closing position
Finish: Chrome
Material: Solid Brass
Stainless Steel hardened Coil Springs
90 degree angle opening
Self-centering when within 15 degrees of closed position
Available with reversible Pivot Pin

Using 2 hinges, with 3/8″ glass the hinge will hold up to 80 lbs. with a maximum door width of 28″

Using 2 hinges, with 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 32″

Using 3 hinges, with 3/8″ glass the hinge will hold up to 80 lbs. with a maximum door width of 26″

Using 3 hinges, with 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 30″
