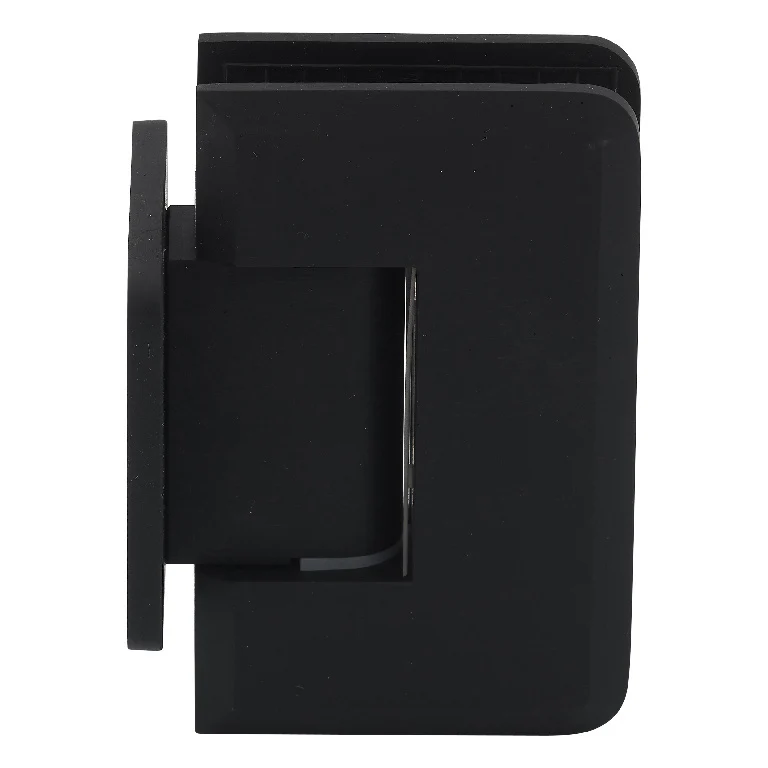

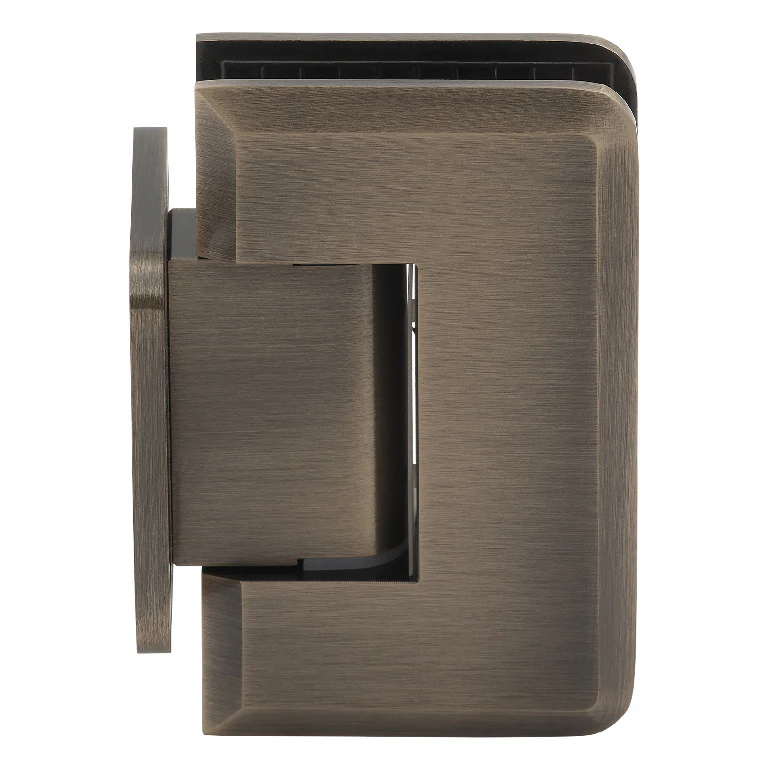

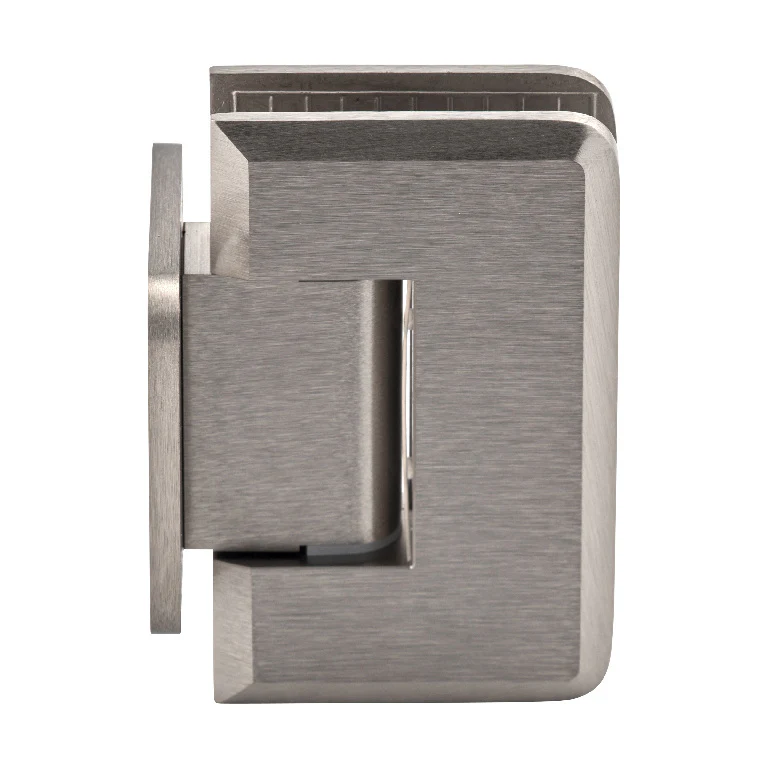

Wall Mount with Short Back Plate Premier Series Hinge

• Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
• Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
• Solid Forged Brass Construction
• Precision Machined 300 Series Stainless Steel Components
• Dual Precision Wound Stainless Steel Return Springs
• Self-Closing from 25 Degrees
• Mouse Ear Design
• Designed for 3/8" and 1/2" Glass
• Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
• Allen Wrench Included
• Rated at 40lbs Per Hinge



Additional Product Information: Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).

Adjustable Premier Series Short Plate Hinges take our popular Premier Hinge to a new level. Adjustment to accommodate the desired angle (up to 30 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 30 degree inward and also 30 degree outward (adjusting angle from factory set position will reduce 30 degree swing in that direction).
