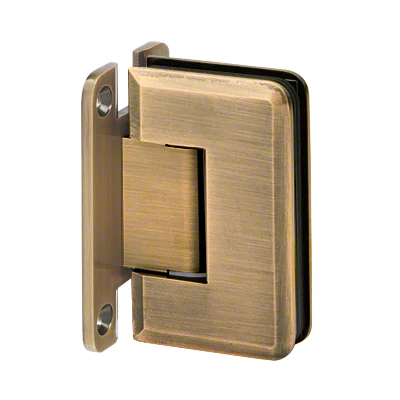

Wall Mount with "H" Back Plate Premier Series Hinge

• Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
• Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
• Solid Forged Brass Construction
• Precision Machined 300 Series Stainless Steel Components
• Dual Precision Wound Stainless Steel Return Springs
• Self-Closing from 25 Degrees
• Mouse Ear Design
• Designed for 3/8" and 1/2" Glass
• Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
• Allen Wrench Included
• Rated at 40lbs Per Hinge



Additional Product Information: Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).

The Premier Series Full Plate hinge with an H-Plate is our most popular hinge. The Premier Series Hinge has radius corners and beveled edges for a sleek appearance. The Premier Series Hinges accommodate 3/8" (10 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 ° of the closed position. Premier Series Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Premier Series Hinge also contains the same Reversible 5 ° Pivot Pin.
