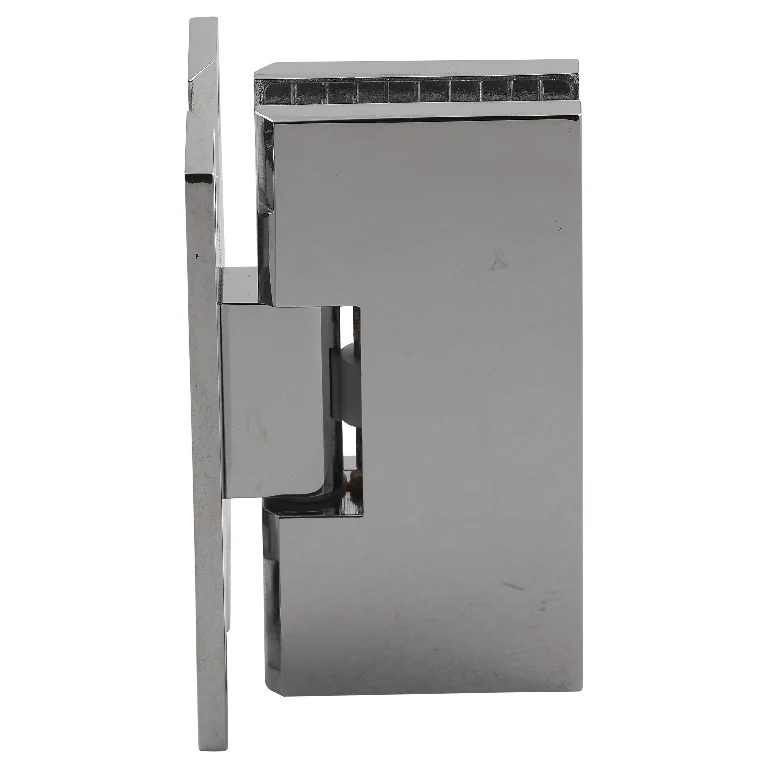

Wall Mount with "H" Back Plate Designer Mini Series Hinge
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Mouse Ear Design for Added Adjustment
- Self-Centering 0° Return with Reversible 5° Pin(Preset 5° Pins Also Available)
- Designed for 1/4" and 5/16" (6 and 8 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
ADDITIONAL PRODUCT INFORMATION: using two hinges with 1/4" to 5/16" glass the hinge will hold up to 55 lbs (25 kg) with a maximum door width of 32" (813 mm). Using three hinges with 1/4" to 5/16" glass the hinge will hold up to 85 lbs (38 kg) with a maximum door width of 36"(914 mm).
The Designer Full-Plate Mini Series of professional Hinges is able to accommodate 1/4" (6 mm) glass. Designer Mini Hinges are self-centering and contain a Reversible 5 ° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Original: $85.06
-70%$85.06
$25.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Mouse Ear Design for Added Adjustment
- Self-Centering 0° Return with Reversible 5° Pin(Preset 5° Pins Also Available)
- Designed for 1/4" and 5/16" (6 and 8 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
ADDITIONAL PRODUCT INFORMATION: using two hinges with 1/4" to 5/16" glass the hinge will hold up to 55 lbs (25 kg) with a maximum door width of 32" (813 mm). Using three hinges with 1/4" to 5/16" glass the hinge will hold up to 85 lbs (38 kg) with a maximum door width of 36"(914 mm).
The Designer Full-Plate Mini Series of professional Hinges is able to accommodate 1/4" (6 mm) glass. Designer Mini Hinges are self-centering and contain a Reversible 5 ° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel.
