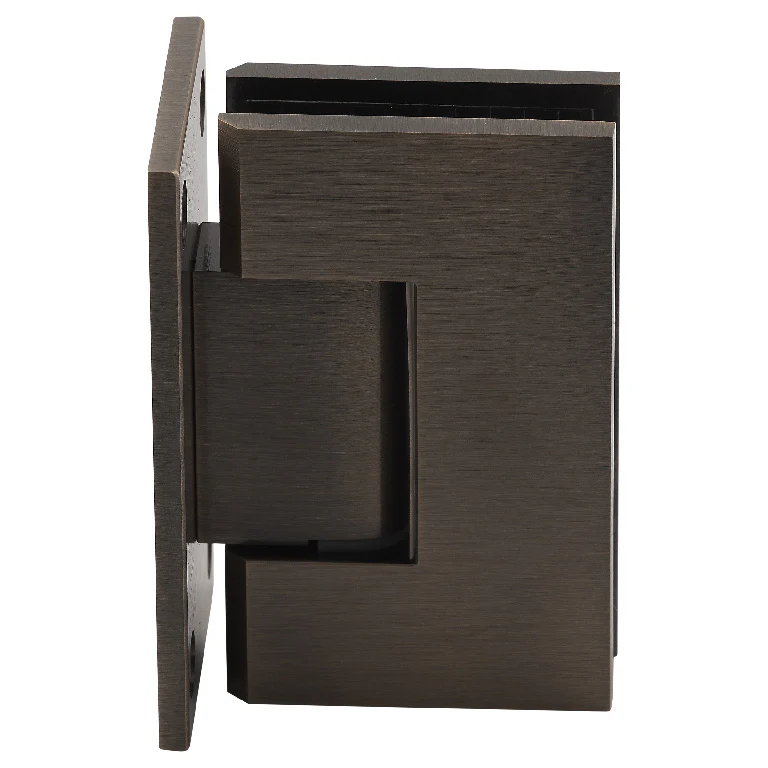

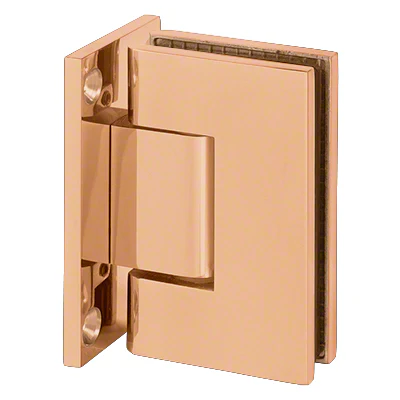

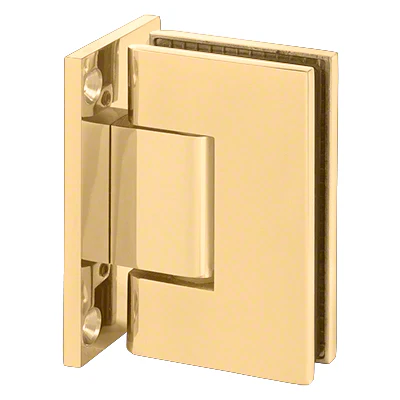

Wall Mount with Full Back Plate Designer Series Hinge
- Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" Glass
- Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
- Alan Wrench Included
- Rated at 40lbs Per Hinge
Additional Product Information: Using two hinges with 3/8" to 1/2" glass the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).
The Designer Full-Plate Series of professional Hinges is able to accommodate 3/8" (10 mm) to 1/2" (12 mm) glass. Designer Hinges are self-centering and contain a Reversible 5 ° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Original: $50.66
-70%$50.66
$15.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" Glass
- Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
- Alan Wrench Included
- Rated at 40lbs Per Hinge
Additional Product Information: Using two hinges with 3/8" to 1/2" glass the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).
The Designer Full-Plate Series of professional Hinges is able to accommodate 3/8" (10 mm) to 1/2" (12 mm) glass. Designer Hinges are self-centering and contain a Reversible 5 ° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel.
