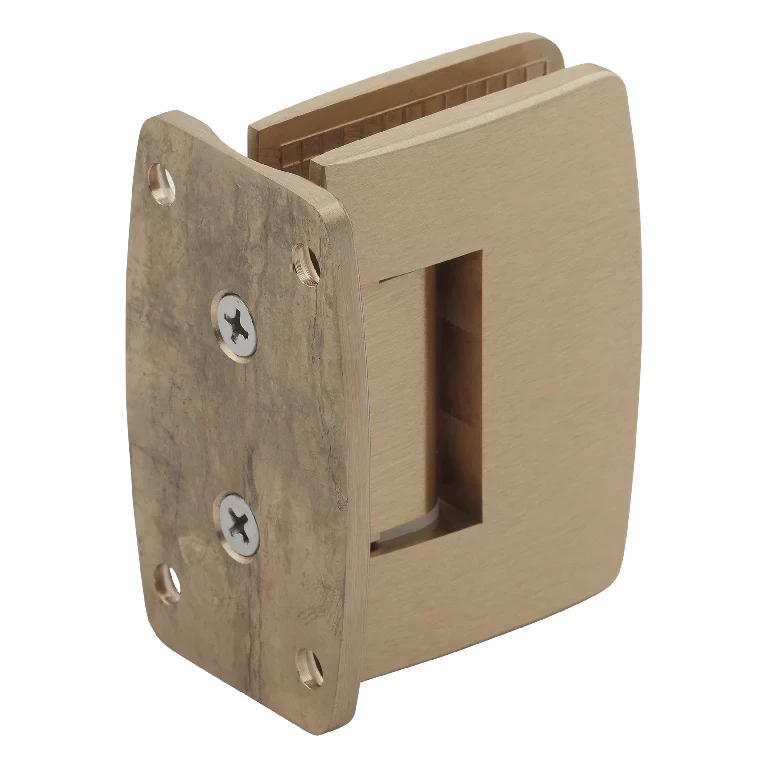

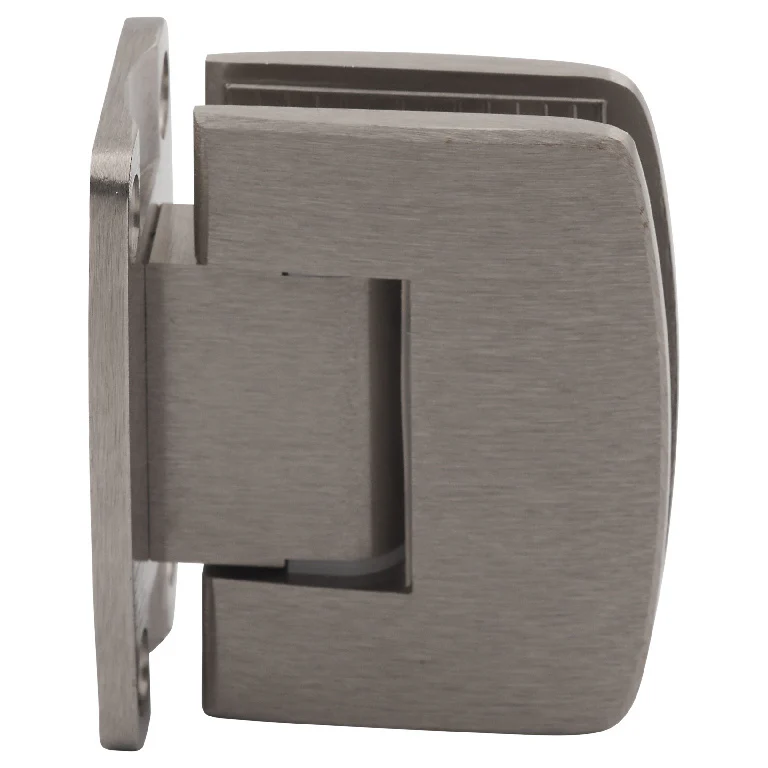

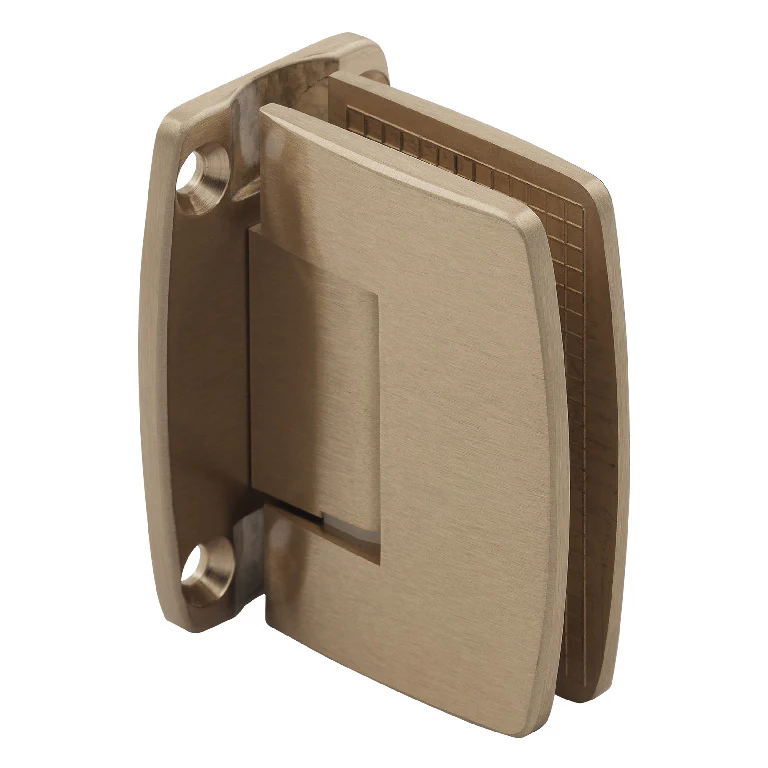

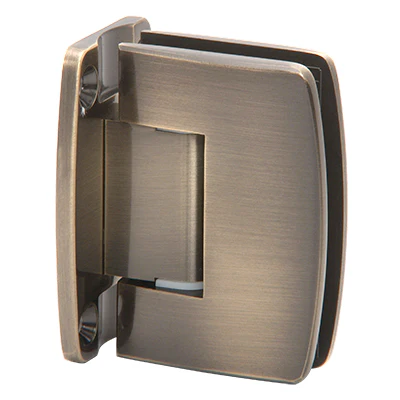

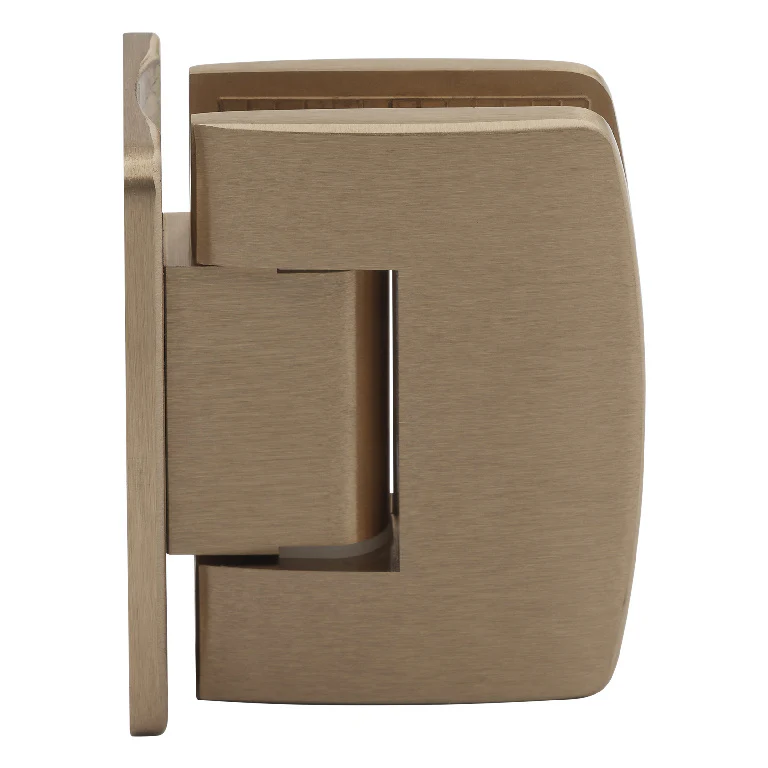

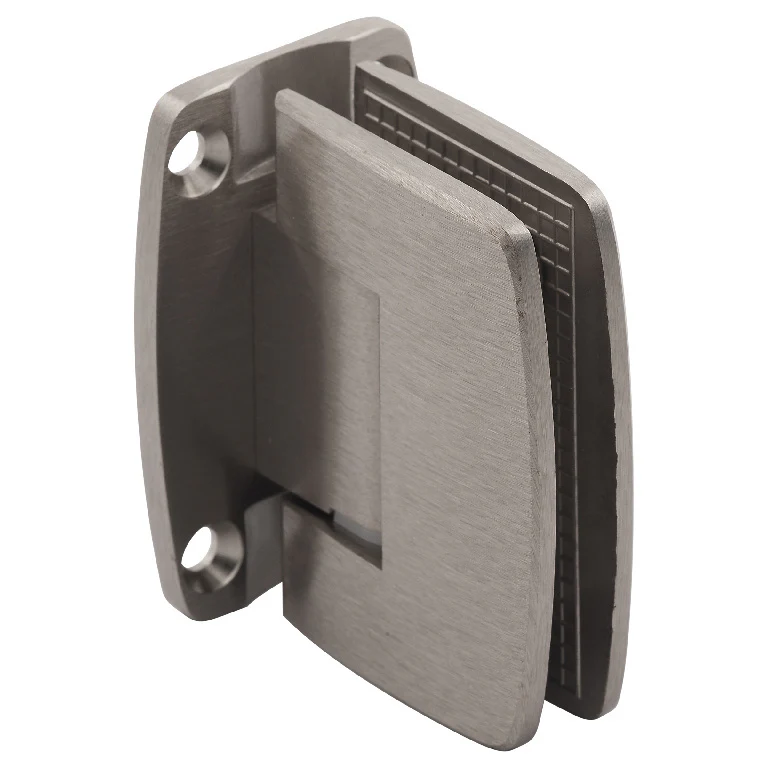

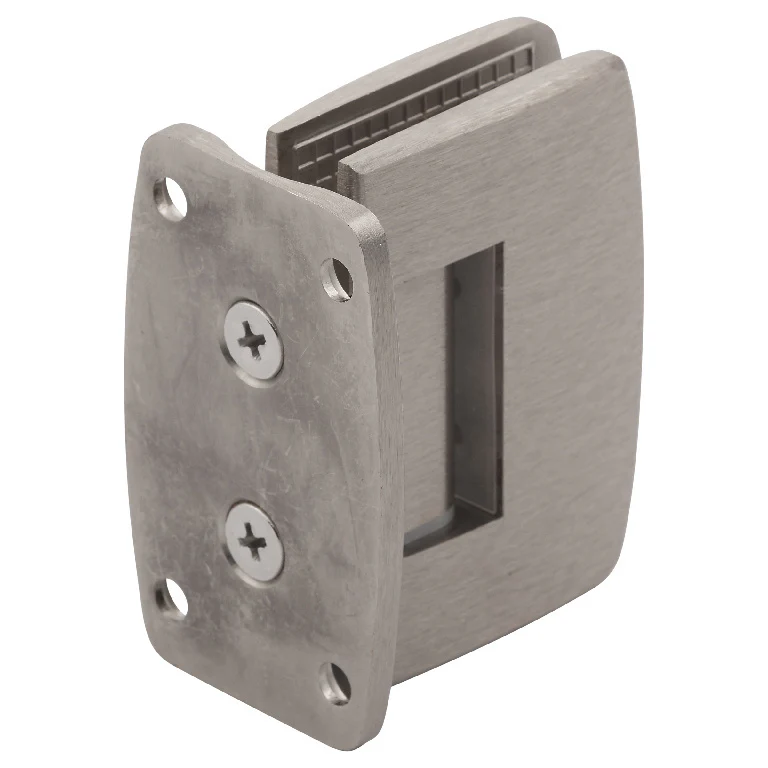

Wall Mount with Full Back Plate
- Finished to Match Stainless Steel Alan Style Clamp Screws (Phillips Screws Available on Request)
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Mouse Ear Design
- Self-Centering 0Ā° Return (5Ā° Positive Closure Available)
- Designed for 1/4" and 5/16" Glass
- Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
- Allen Wrench Included
ADDITIONAL PRODUCT INFORMATION: using two hinges with 1/4" to 5/16" glass the hinge will hold up to 55 lbs (25 kg) with a maximum door width of 32" (813 mm). Using three hinges with 1/4" to 5/16" glass the hinge will hold up to 85 lbs (38 kg) with a maximum door width of 36"(914 mm).
TheĀ Radial Series Wall Mount With Full Back Plate SeriesĀ of professional Hinges is able to accommodate 1/4" (6 mm) glass. Radial Hinges are self-centering and contain a Reversible 5 Ā° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel with cambered edges.
Original: $67.56
-70%$67.56
$20.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Finished to Match Stainless Steel Alan Style Clamp Screws (Phillips Screws Available on Request)
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Mouse Ear Design
- Self-Centering 0Ā° Return (5Ā° Positive Closure Available)
- Designed for 1/4" and 5/16" Glass
- Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
- Allen Wrench Included
ADDITIONAL PRODUCT INFORMATION: using two hinges with 1/4" to 5/16" glass the hinge will hold up to 55 lbs (25 kg) with a maximum door width of 32" (813 mm). Using three hinges with 1/4" to 5/16" glass the hinge will hold up to 85 lbs (38 kg) with a maximum door width of 36"(914 mm).
TheĀ Radial Series Wall Mount With Full Back Plate SeriesĀ of professional Hinges is able to accommodate 1/4" (6 mm) glass. Radial Hinges are self-centering and contain a Reversible 5 Ā° Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel with cambered edges.
