Wall to Glass Square Shower Hinge Finish for Frameless Heavy Glass Shower Doors

Classic Wall to Glass Shower door hinges fits 3/8″ to 1/2″ thick Tempered Glass

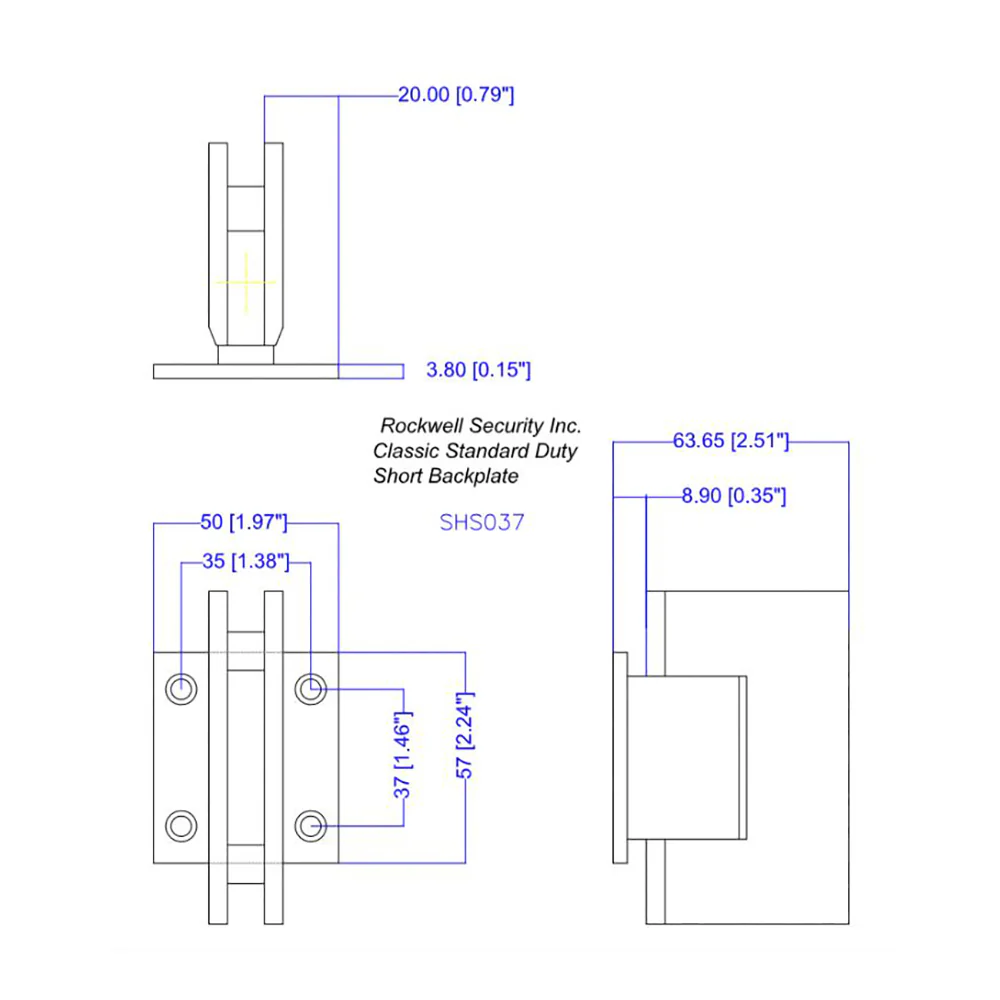

Square Corners Short Backplate
Hinge Preset at Zero degree standard inline closing position
Finish: Chrome
Material: Solid Brass
Load Approximately 40 lbs per hinge
Opening Angle 90 degrees
Stainless Steel hardened Coil Springs
90 degree angle opening
Self-centering when within 15 degrees of closed position
Available with reversible Pivot Pin

Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 80 lbs. with a maximum door width of 28″

Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 32″
