Rockwell Titan Heavy Duty Shower Hinge With Full Backplate

Solid Brass Drop Forged Construction

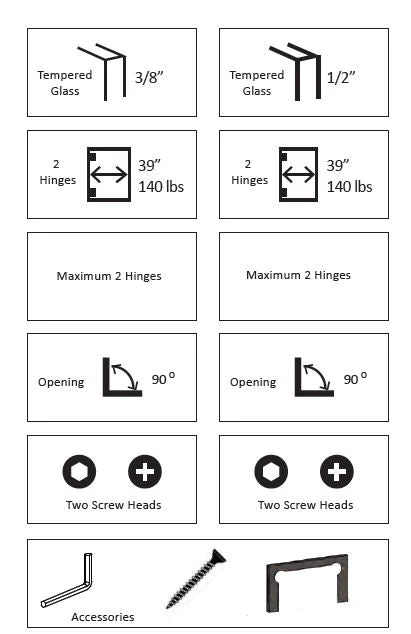

Glass Thickness: 3/8” (10mm) to 1/2” (12mm) Tempered Glass

Stainless Steel Hardened Coil Springs and Pin

90 Degree Opening angles

Self centering within 15 degrees from closing position

Industry standard fits typical glass cutout templates

Supplied with both Phillips and Allen Key screw heads

Accessories – gaskets, Stainless steel mounting screws, Allen wrench, template cut out dimensions

For doors 3/8″ thick, 140 lbs. max up to 39″ width

For doors 1/2″ thick, 140 lbs. max up to 39″ width
