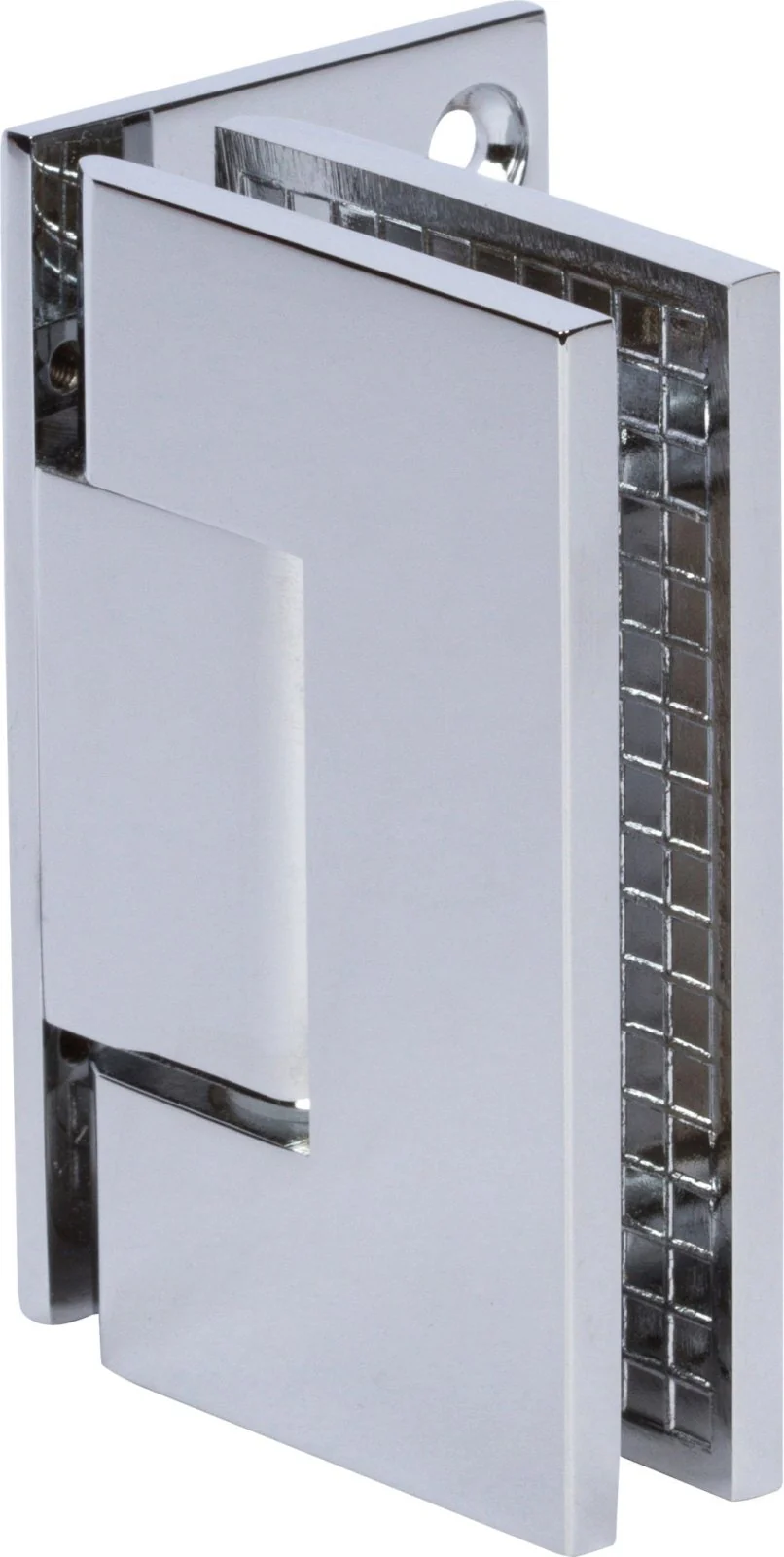

Rockwell Offset Square Corner Shower Hinge for heavy tempered Glass Shower Doors

Rockwell Offset Square Corner Shower Hinge in Chrome Finish for heavy tempered Glass Shower Doors

Classic Wall to Glass Shower door hinges fits 3/8″ to 1/2″ thick Tempered Glass

Square Corners OFFSET Full Backplate

Hinge Preset at Zero Degree Finish: Polished Chrome

Material: Solid Brass

Opening Angle 90 degrees

Stainless Steel hardened Coil Springs

Self-centering when within 15 degrees of closed position

Reversible Pivot Pin

Also available Preset at 5 degree positive position

Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 80 lbs. with a maximum door width of 28″

Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 32″
