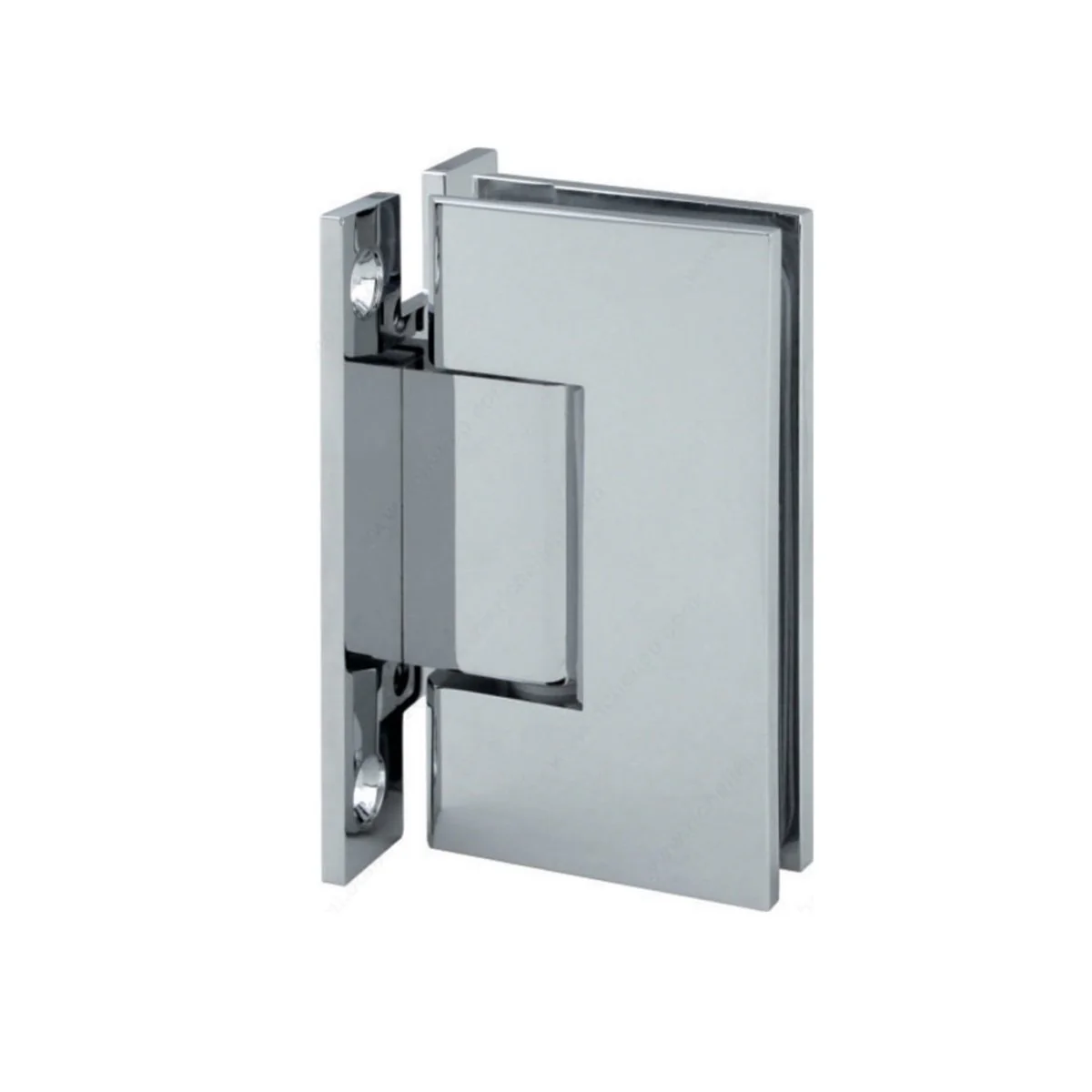

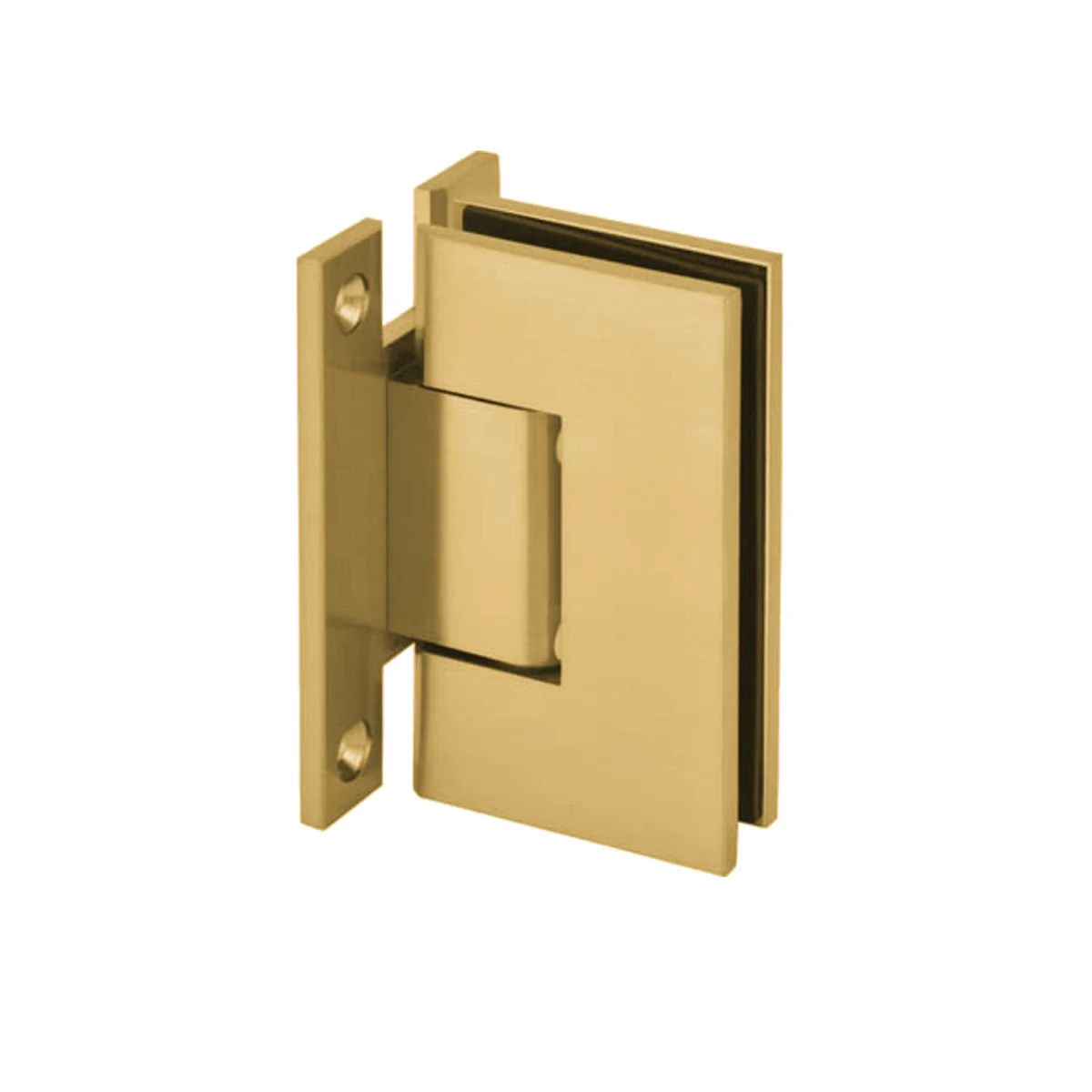

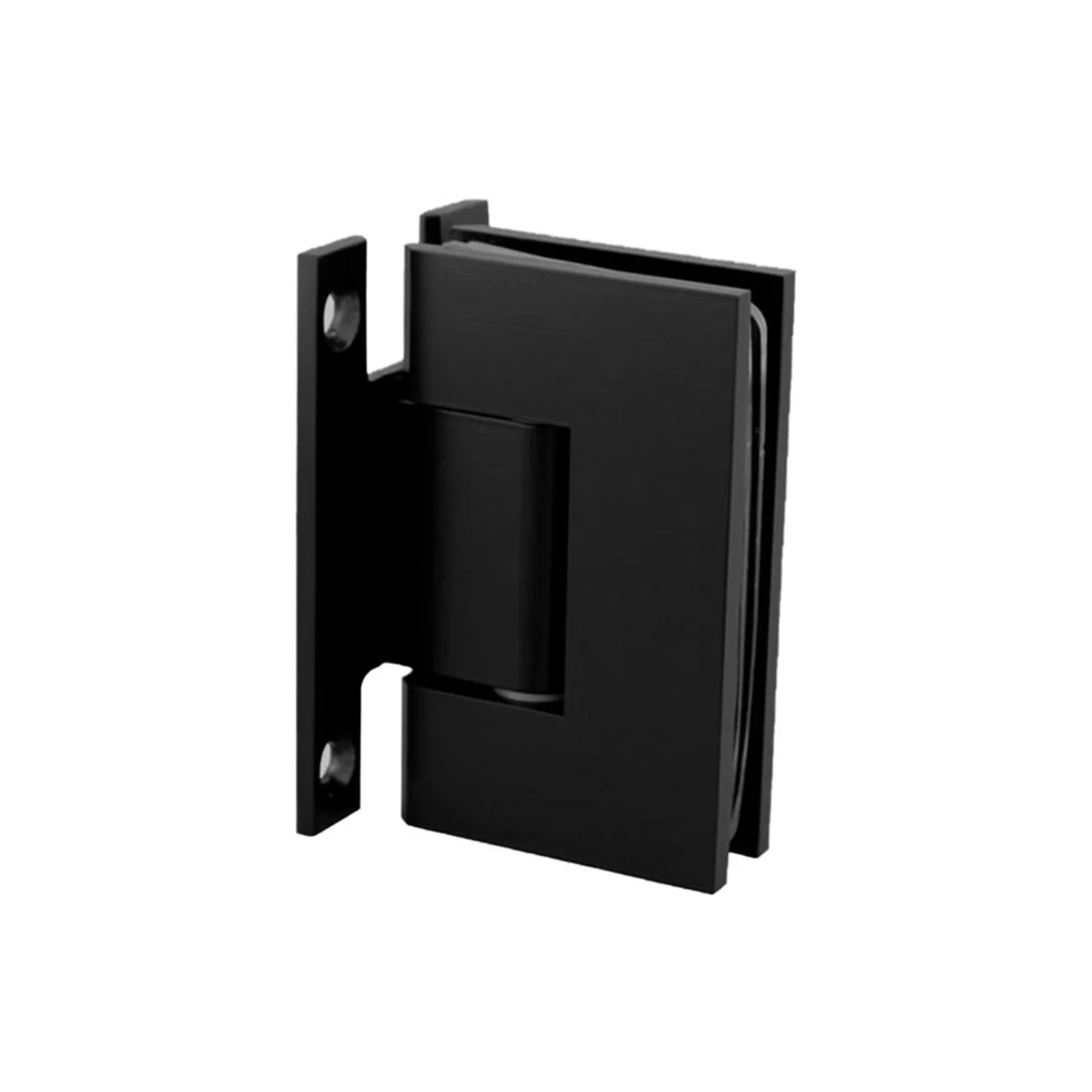

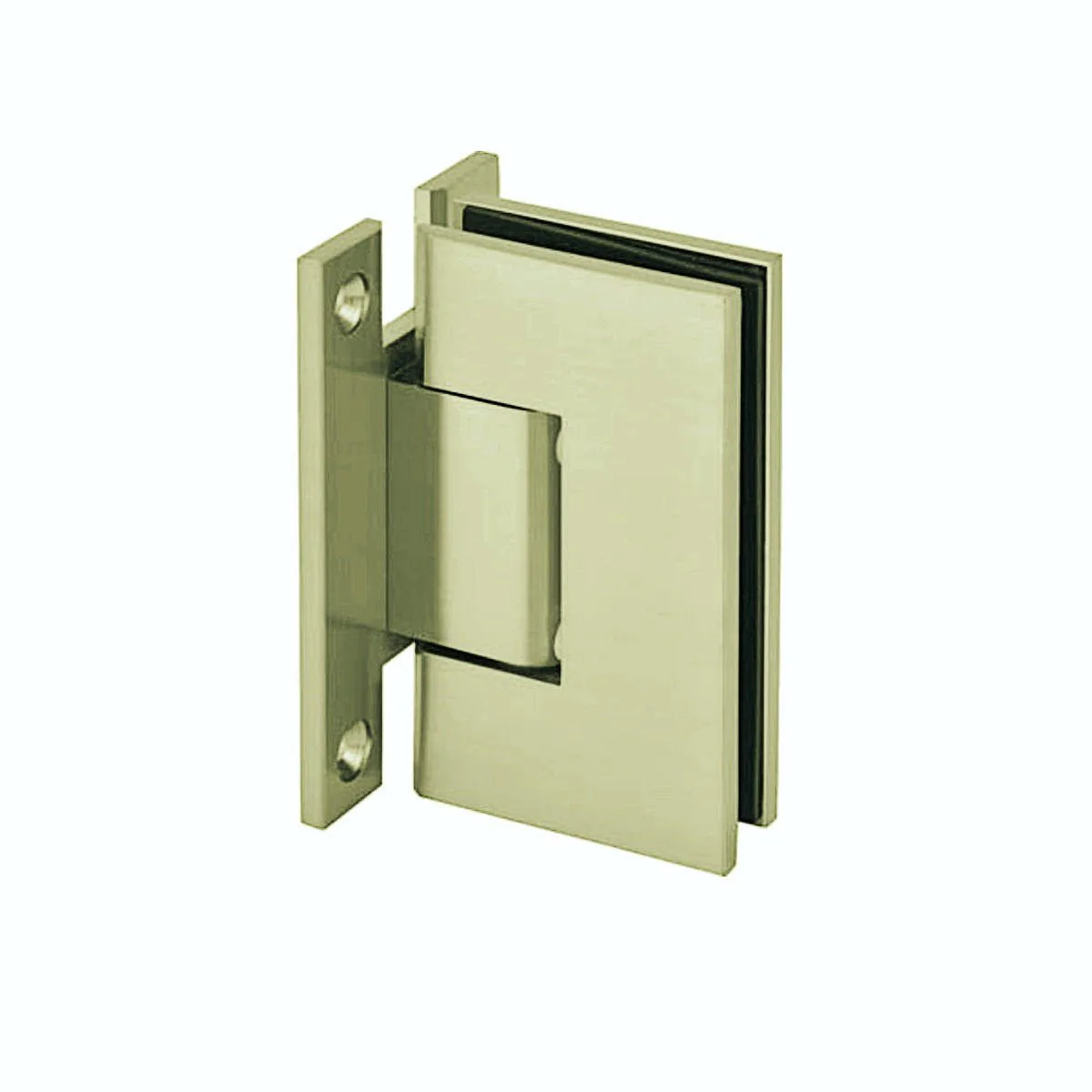

Heavy Duty Wall to Glass "H" Back Plate Hinge

• Heavy Duty Style

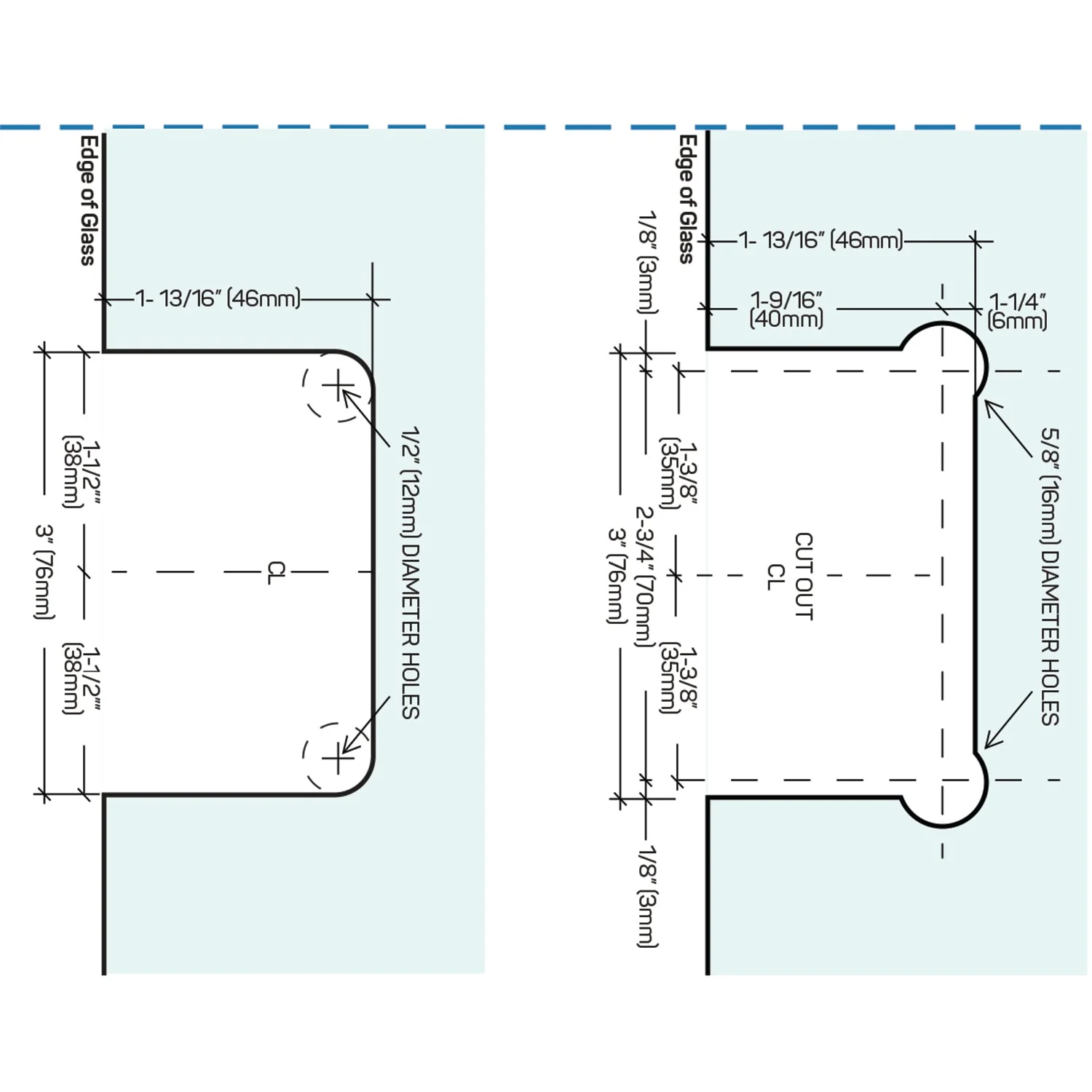

• Designed For 3/8"-1/2" Tempered Glass
• Many Popular Finishes to Select From
• Self-Centering within 15 Degrees of Closing Position
• Commonly used in Residential Bath and Commercial Hotel Applications
• Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction

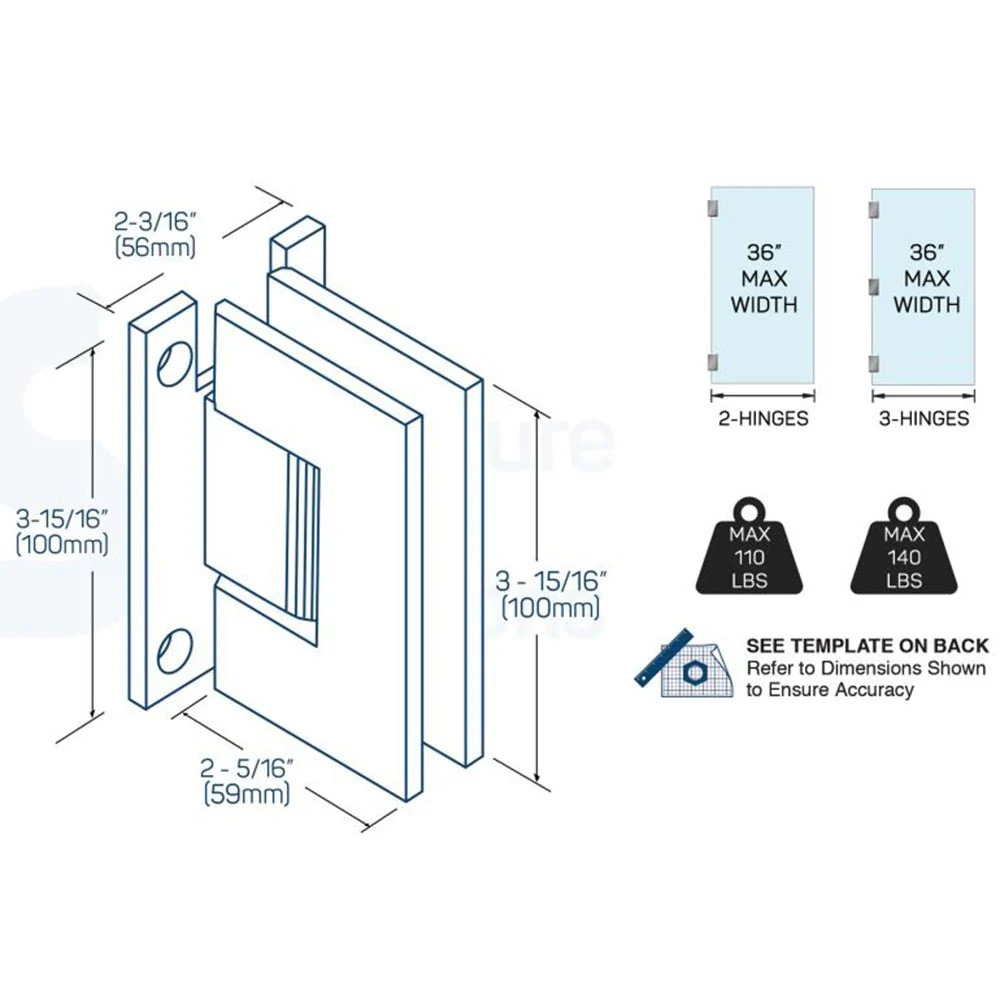

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. with a maximum door width of 36"

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. with a maximum door width of 36".
