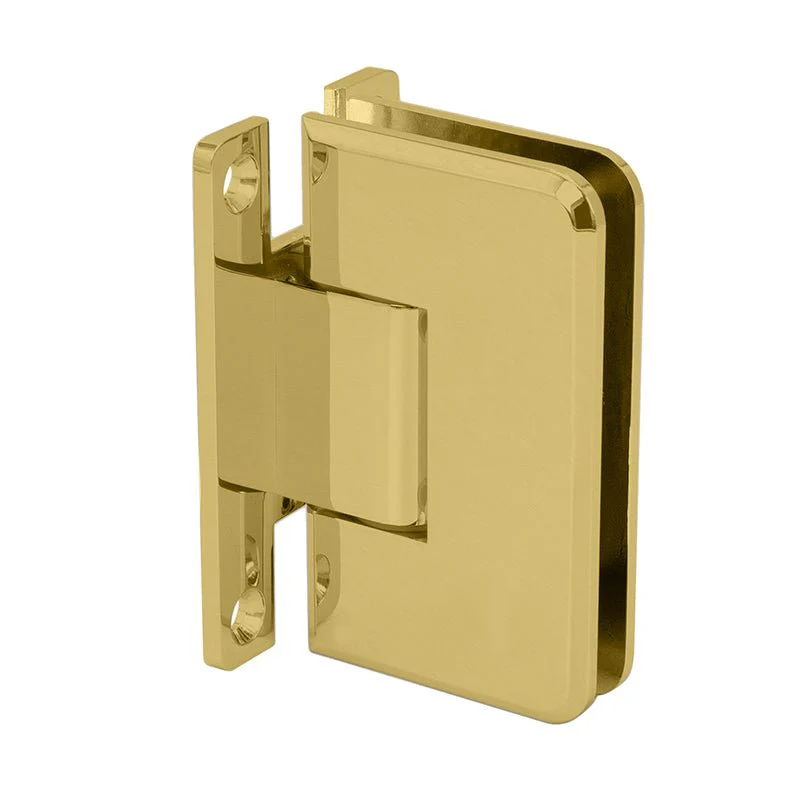

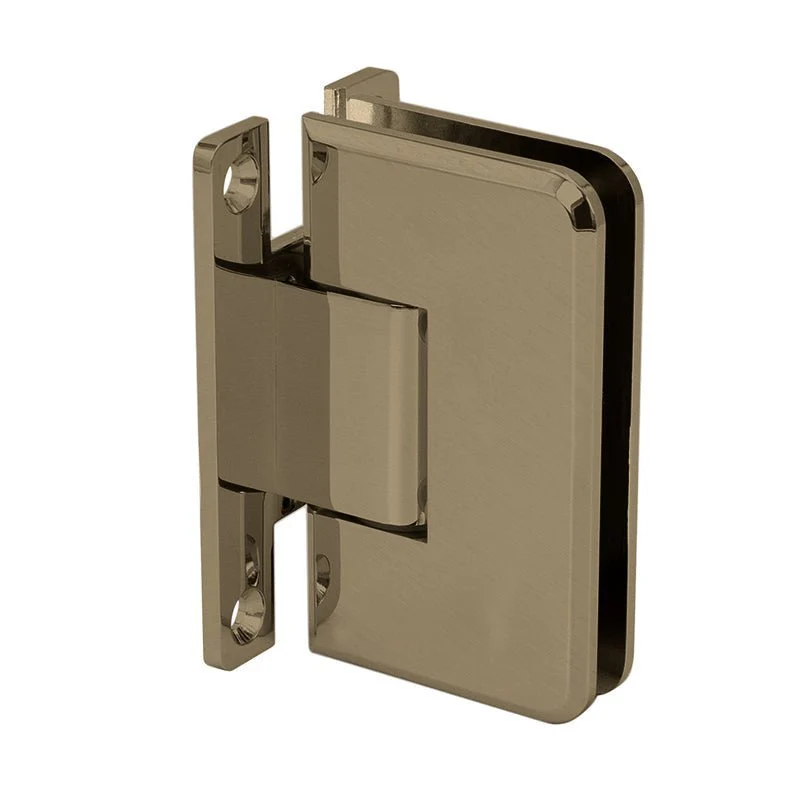

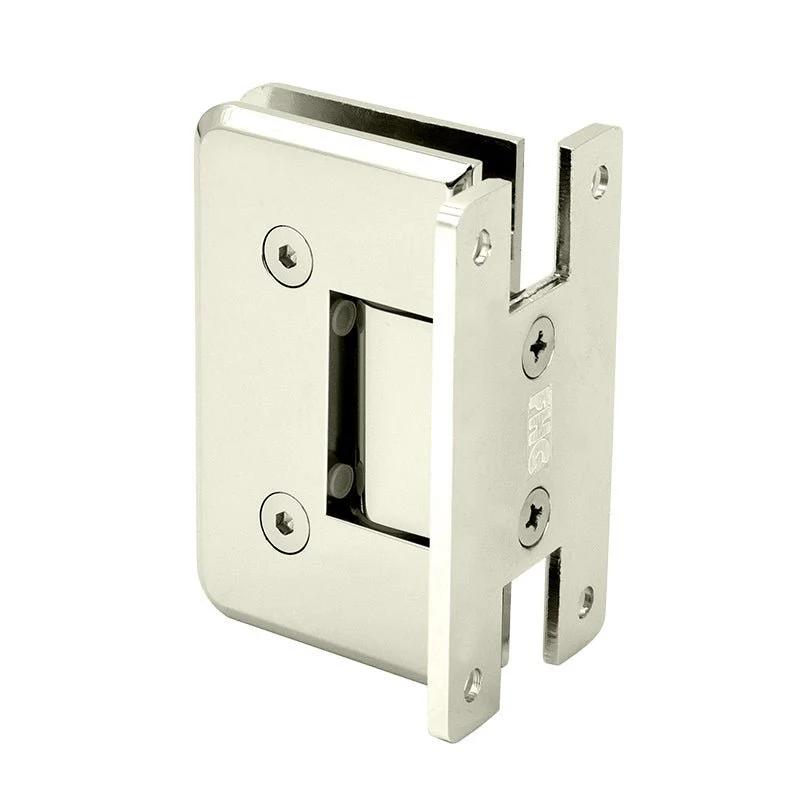

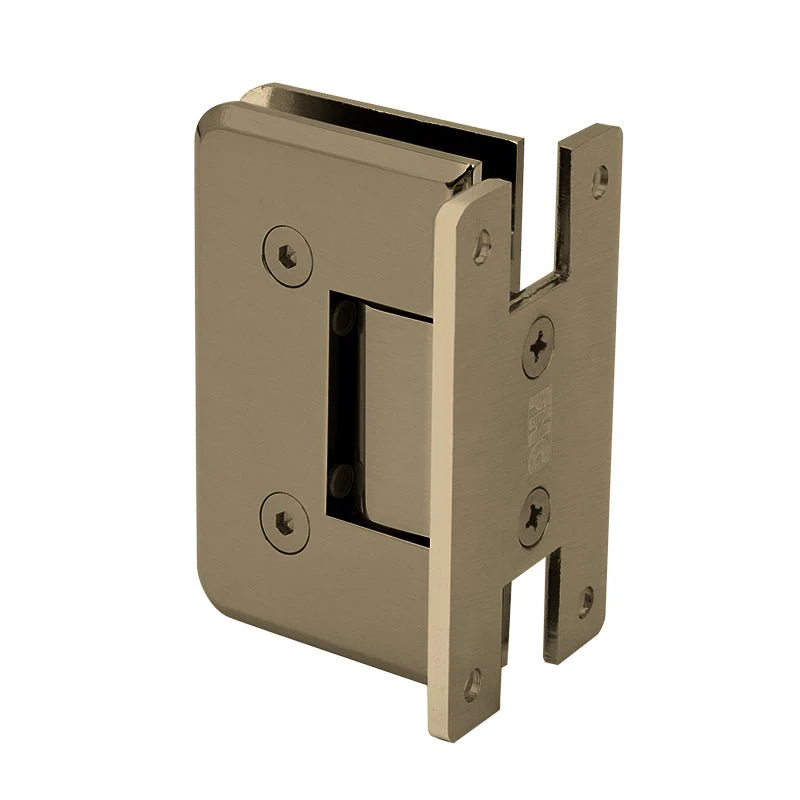

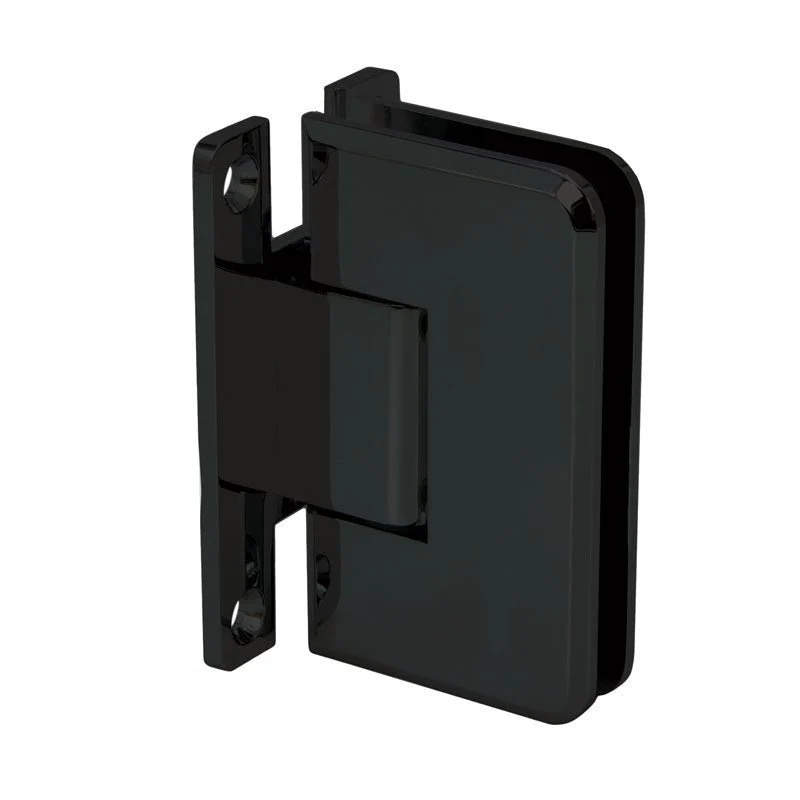

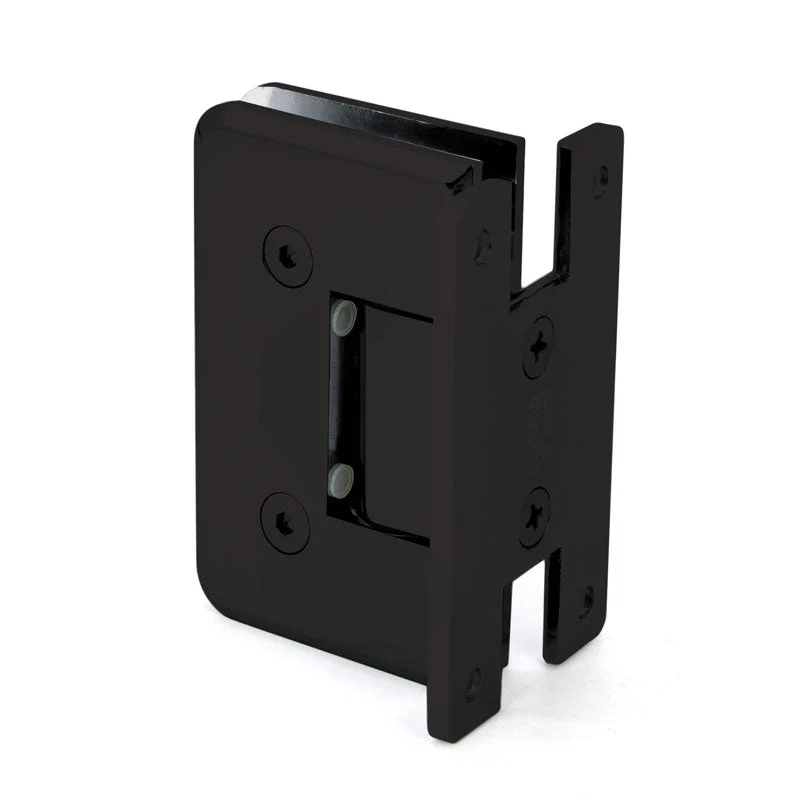

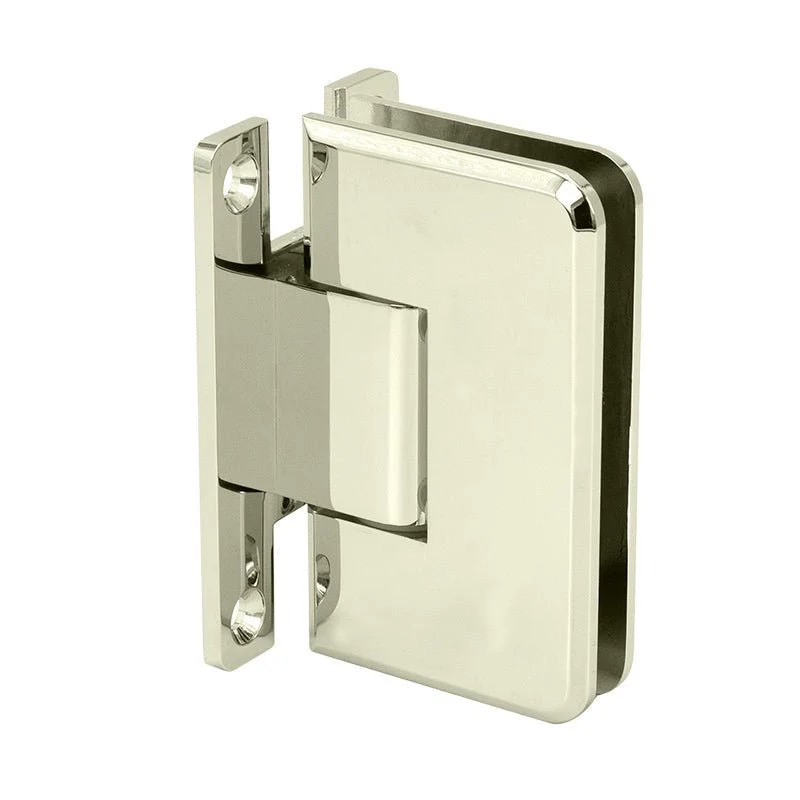

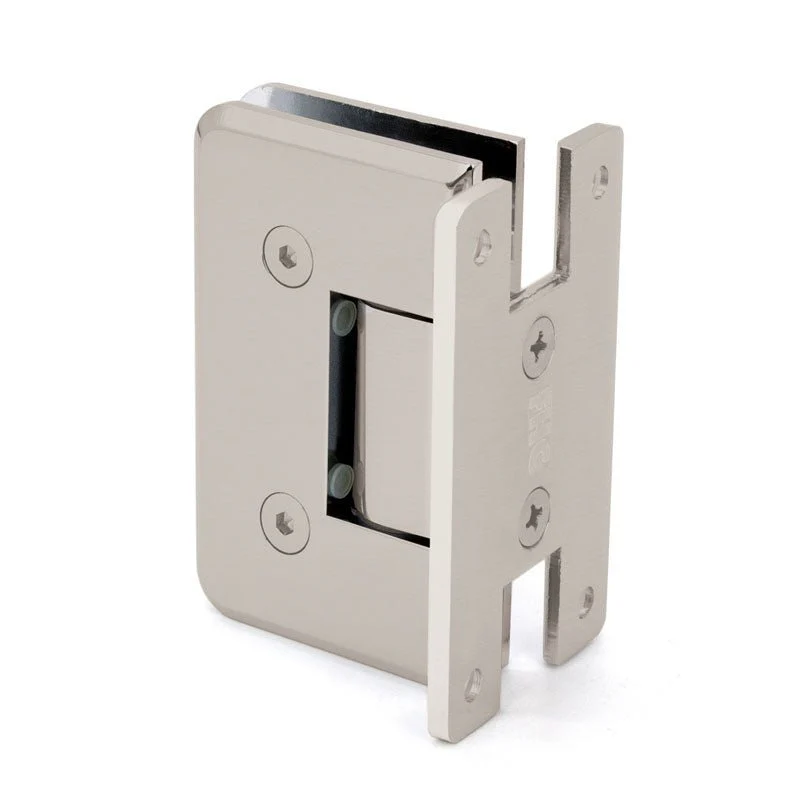

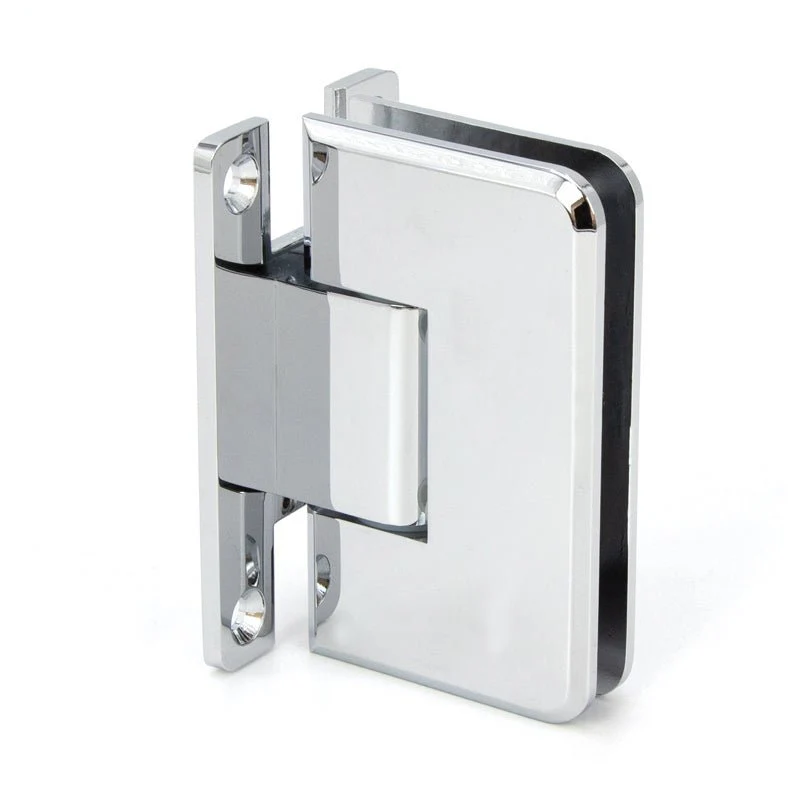

FHC Pasadena HD Wall Mount Hinge - Full Back Plate

FHC Pasadena HD Wall Mount Hinge - Full Back Plate

  • For Heavier and Wider Doors, Max 145 lbs. rating
  • Beveled Profile Heavy-Duty Glass to Wall Shower Hinge with Full Back Plate
  • Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
  • Many Popular Finishes to Select From
  • Self-Centering within 15 Degrees of Closing Position
  • Commonly used in Residential Bath and Commercial Hotel Applications
  • Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
  • Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction

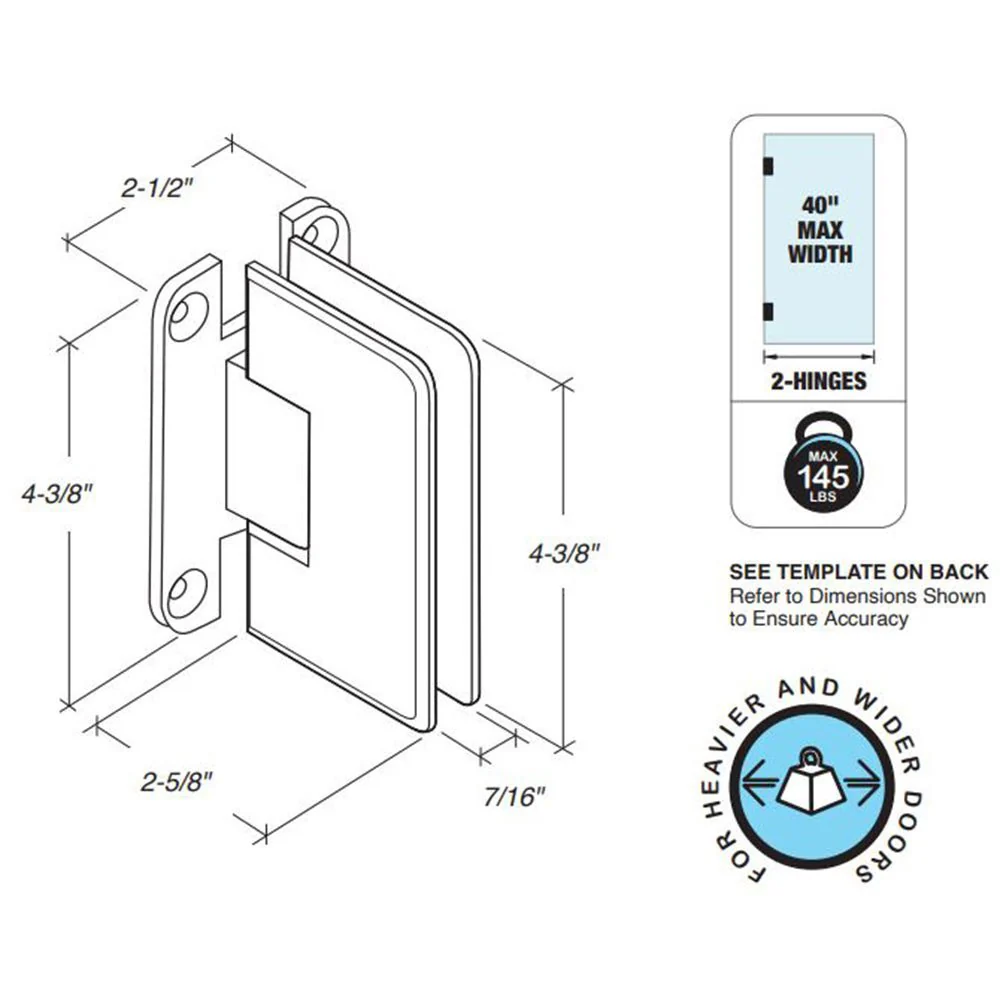

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb./ft²		 1/2" (12 mm) GLASS
Approx. 6.4 lb./ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 145 LBS (50 kg) 40" (914 mm)


NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.

Select Finish
From $47.60

Original: $158.68

-70%
FHC Pasadena HD Wall Mount Hinge - Full Back Plate—

$158.68

$47.60

Product Information

Shipping & Returns

Description

  • For Heavier and Wider Doors, Max 145 lbs. rating
  • Beveled Profile Heavy-Duty Glass to Wall Shower Hinge with Full Back Plate
  • Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
  • Many Popular Finishes to Select From
  • Self-Centering within 15 Degrees of Closing Position
  • Commonly used in Residential Bath and Commercial Hotel Applications
  • Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position
  • Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction

Glass Specifications

MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb./ft²		 1/2" (12 mm) GLASS
Approx. 6.4 lb./ft²
DOOR WEIGHT DOOR WIDTH
Using 2 Hinges 145 LBS (50 kg) 40" (914 mm)


NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
