FHC Pasadena HD Beveled Glass To Glass 180 Degree Hinge
- Heavy Duty Beveled Profile Glass to Glass 180 Degree Hinge
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Heavy Duty Design For Wider and Heavier Doors, Max 145lb
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Many Popular Finishes to Select From
- Includes Hinge Body, Glazing Gaskets, Mounting Screws and Allen and Phillips Head Cover Plate Screws
- Solid Brass Construction

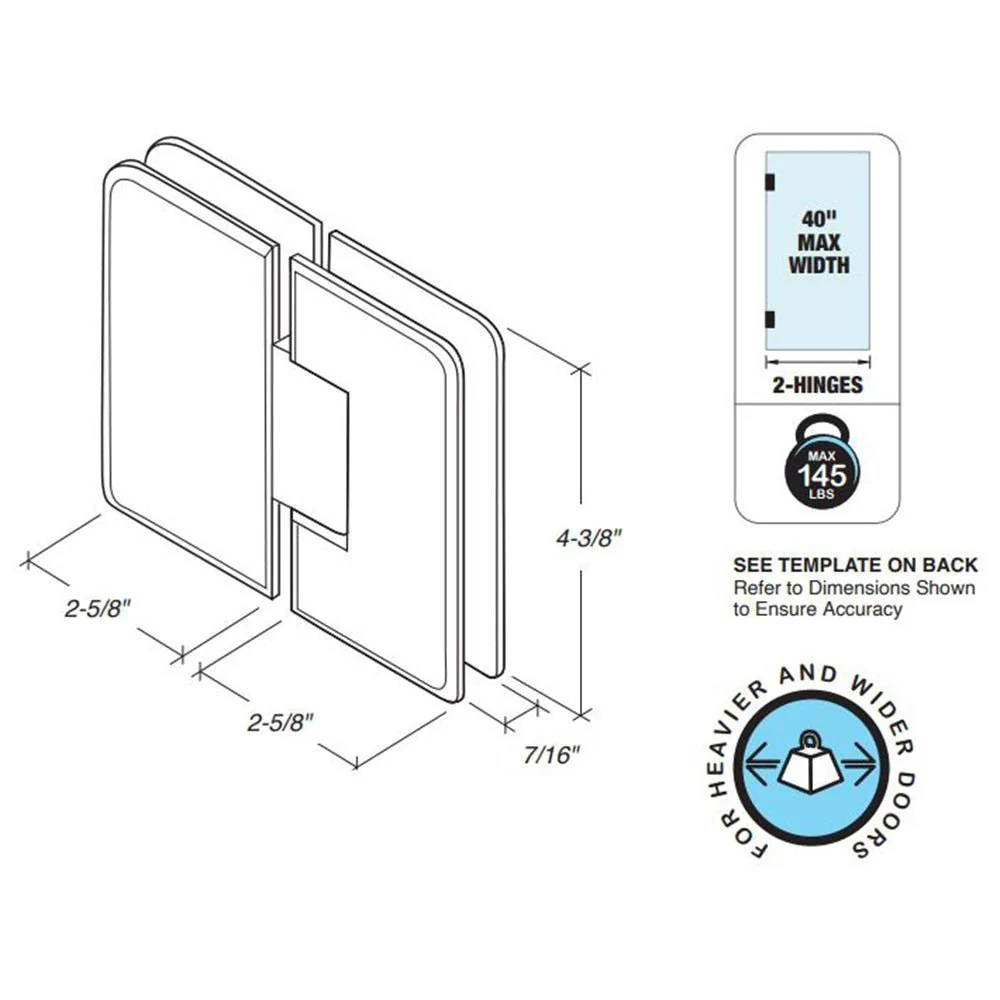

Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 145 LBS (50 kg) | 40" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
Select Color
From $55.31
Original: $184.36
-70%FHC Pasadena HD Beveled Glass To Glass 180 Degree Hinge—
$184.36
$55.31Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Heavy Duty Beveled Profile Glass to Glass 180 Degree Hinge
- Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
- Heavy Duty Design For Wider and Heavier Doors, Max 145lb
- Self-Centering within 15 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Many Popular Finishes to Select From
- Includes Hinge Body, Glazing Gaskets, Mounting Screws and Allen and Phillips Head Cover Plate Screws
- Solid Brass Construction
Glass Specifications
| MAXIMUM DOOR CAPACITY | 3/8" (10 mm) GLASS Approx. 5 lb./ft² |
1/2" (12 mm) GLASS Approx. 6.4 lb./ft² |
|---|---|---|
| DOOR WEIGHT | DOOR WIDTH | |
| Using 2 Hinges | 145 LBS (50 kg) | 40" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
