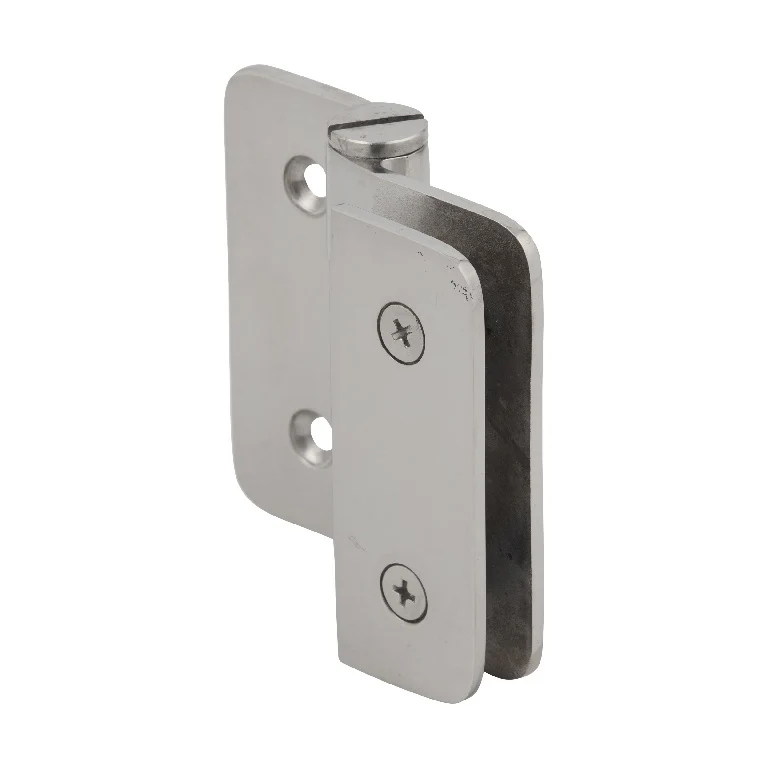

Zurich 05 Series Wall Mount Outswing Hinge

Zurich 05 Series Wall Mount Outswing Hinge

  • Wall Mount Outswing
  • Ideal for Bi-Fold Application
  • Available in Several Beautiful Finishes
  • Use Monolithic Tempered Glass
TheĀ CRL Zurich SeriesĀ of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. In addition, screws and washers are interchangeable for a special design accent. Only two holes per Hinge per panel are required, with no cut-out necessary.

Screw and Washer Accent Kit:Ā Interchangeable Screws and Washers for Zurich Series Hinges let you add a special highlighting accent to the installation (e.g., Cat. No. ZUR70). Available in four finishes: Brass, polished stainless, satin stainless, and gold plated.

NOTE:Ā Not Available in Germany.

Using two hingesĀ with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).

Using three hingesĀ with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).

SPECIFICATIONS:
  • Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
  • Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
  • Construction: Stainless Steel or Solid Brass
  • Hinge Swings: See descriptions next to photos of hinges.
  • Closing Type: Free-Swinging
  • Two Holes Required Per Hinge Per Panel (No Cut-Out)
  • Includes: Gaskets, Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

    Product Warning:

    CRL Shower Door HingesĀ are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

    Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
    • Select Finish
    From $28.85

    Original: $96.18

    -70%
    Zurich 05 Series Wall Mount Outswing Hingeā€”

    $96.18

    $28.85

    Product Information

    Shipping & Returns

    Description

    • Wall Mount Outswing
    • Ideal for Bi-Fold Application
    • Available in Several Beautiful Finishes
    • Use Monolithic Tempered Glass
    TheĀ CRL Zurich SeriesĀ of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. In addition, screws and washers are interchangeable for a special design accent. Only two holes per Hinge per panel are required, with no cut-out necessary.

    Screw and Washer Accent Kit:Ā Interchangeable Screws and Washers for Zurich Series Hinges let you add a special highlighting accent to the installation (e.g., Cat. No. ZUR70). Available in four finishes: Brass, polished stainless, satin stainless, and gold plated.

    NOTE:Ā Not Available in Germany.

    Using two hingesĀ with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).

    Using three hingesĀ with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).

    SPECIFICATIONS:
  • Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
  • Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
  • Construction: Stainless Steel or Solid Brass
  • Hinge Swings: See descriptions next to photos of hinges.
  • Closing Type: Free-Swinging
  • Two Holes Required Per Hinge Per Panel (No Cut-Out)
  • Includes: Gaskets, Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

    Product Warning:

    CRL Shower Door HingesĀ are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

    Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
