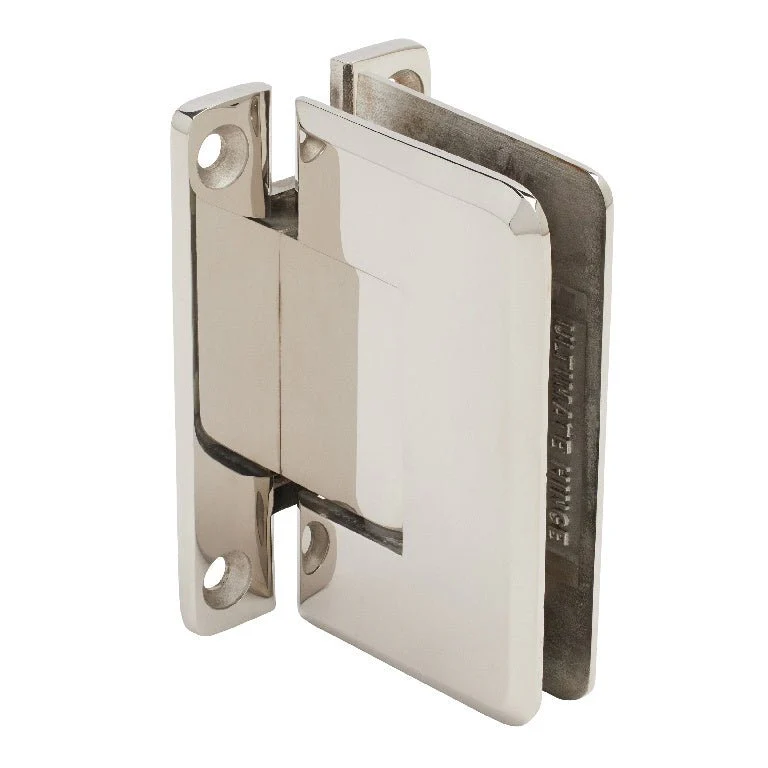

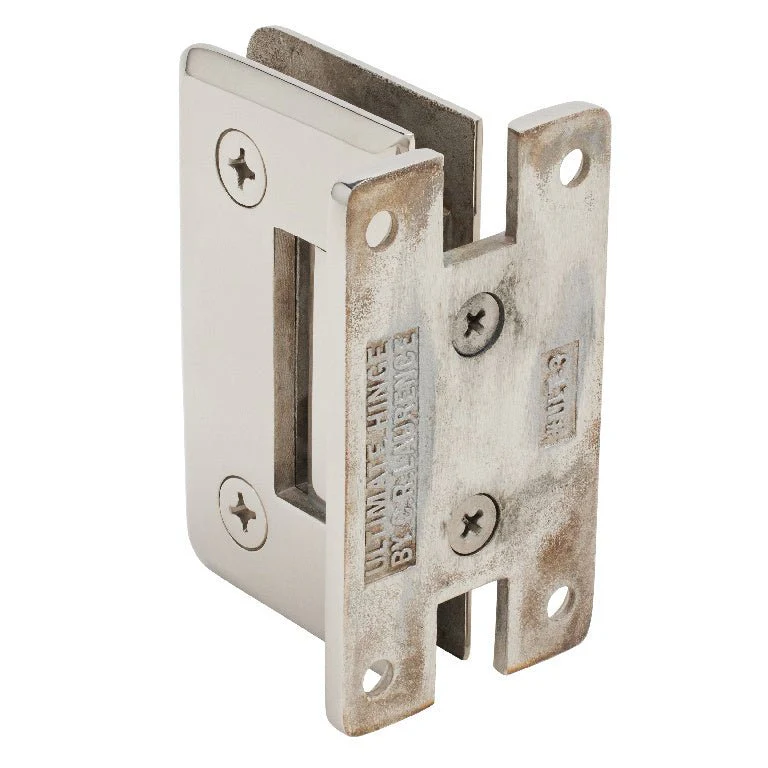

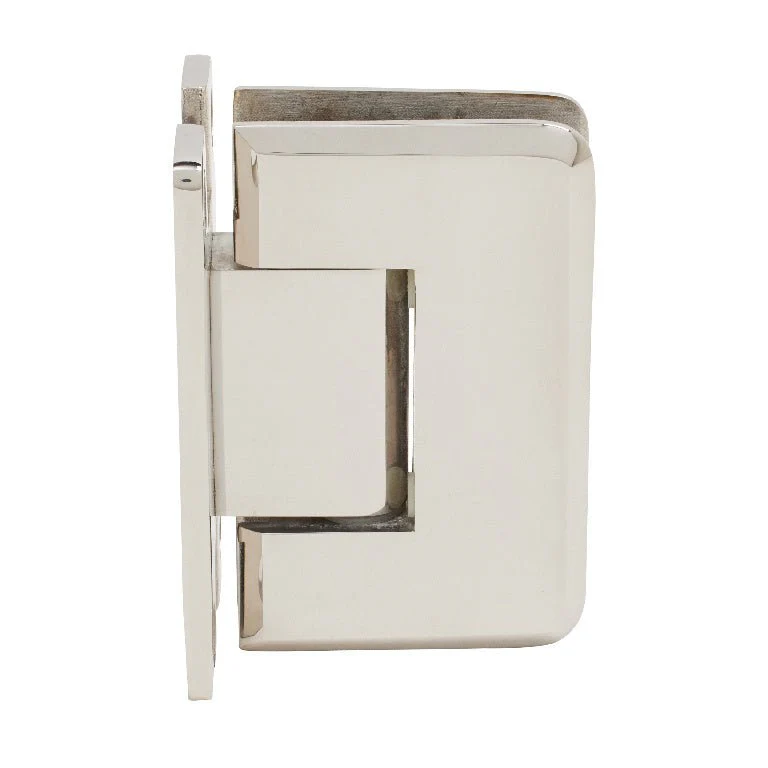

Ultimate 037 Series Wall Mount 'H' Back Plate Hinge
- Self-Centering with Reversible 5 Degree Pivot Pin

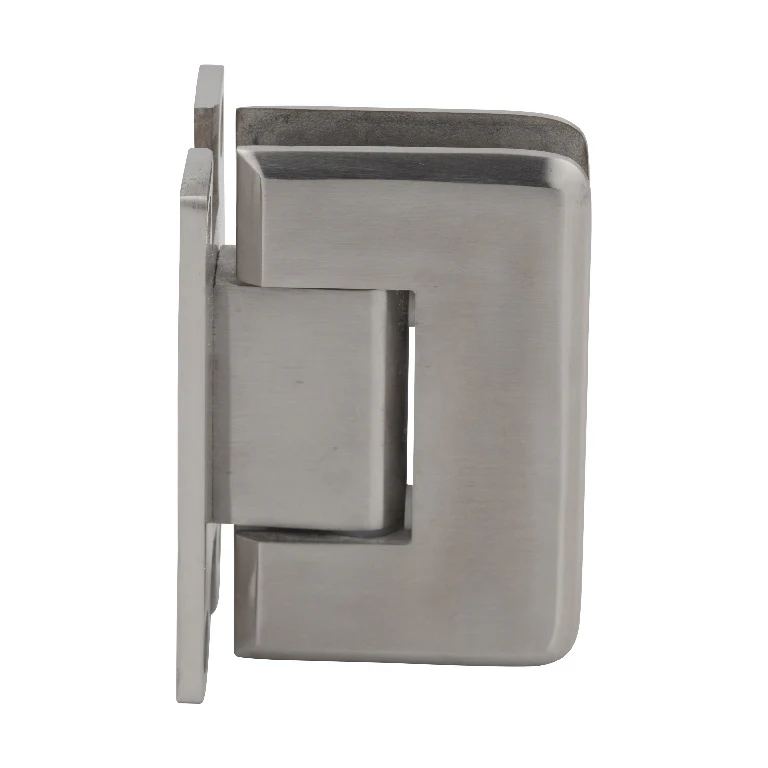

- Available in Two Beautiful Finishes
- 3 Year Warranty
- Wall Mount
- Use Monolithic Tempered Glass
TheĀ CRL Ultimate Series HingeĀ is named primarily for its combination of design elegance and service life. Featuring the same beautiful rounded corners and beveled edges of the Pinnacle Hinge, the Ultimate Hinge is constructed entirely of 316 stainless steel. This all-stainless construction gives the Ultimate Hinge a durability not usually found in brass hinges. The Ultimate has superior survivability in conditions of accelerated corrosion, such as seaside communities with high atmospheric salt levels. The Ultimate Hinge has stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. It also has the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Pinnacle, Roman, and Elite Series Hinges. A Custom Pivot Pin is available for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN:Ā Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN:Ā Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hingesĀ with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).
Using three hingesĀ with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).
Special Feature:Ā 316 Stainless steel construction provides greater durability in conditions subject to accelerated corrosion, such as seaside communities with high atmospheric salt levels.
Custom finishes are available on request.
Product Warning:
CRL Shower Door HingesĀ are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

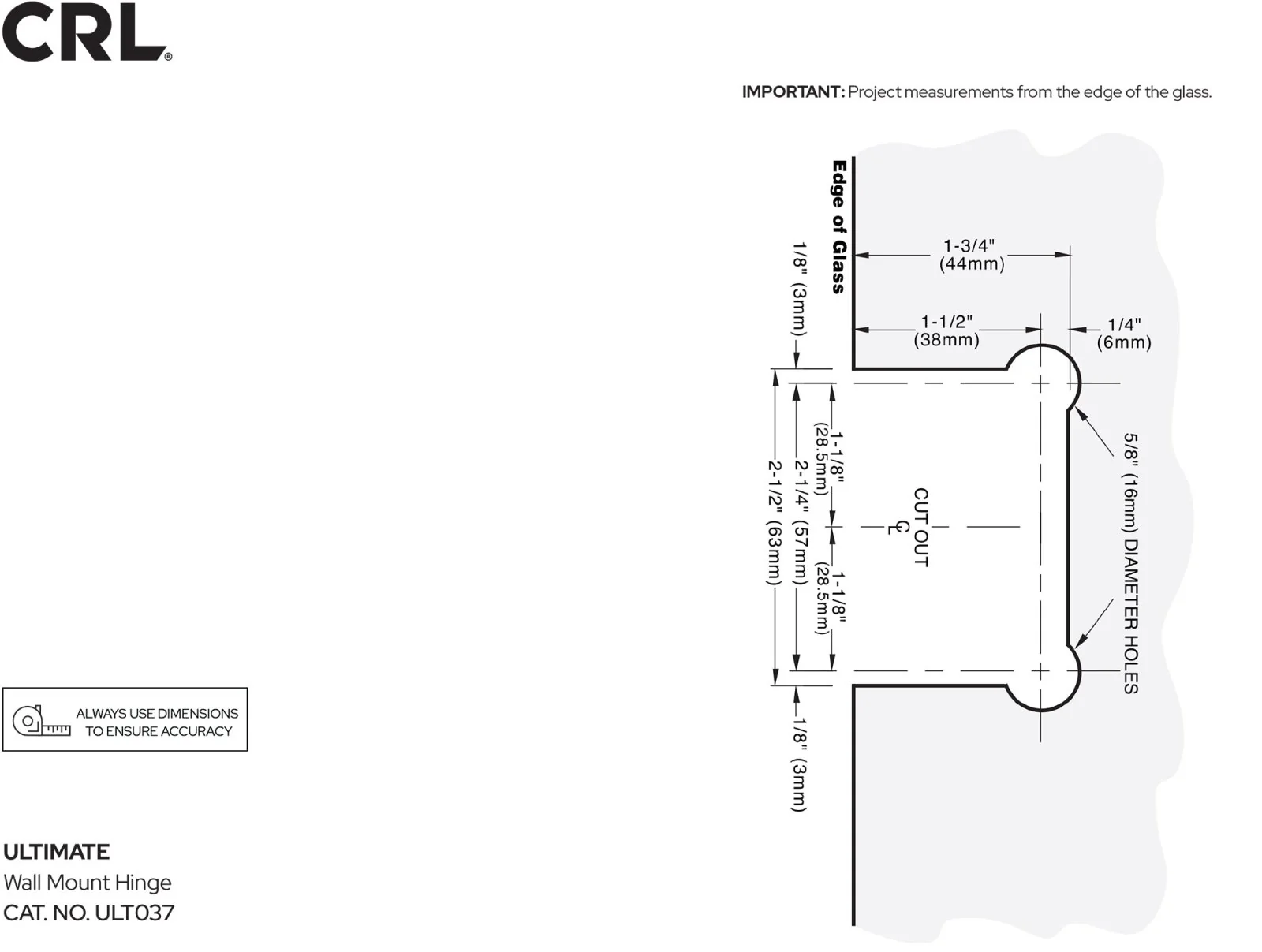

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
