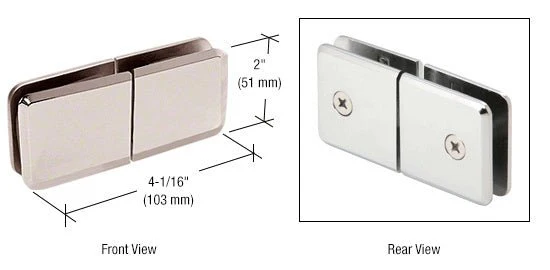

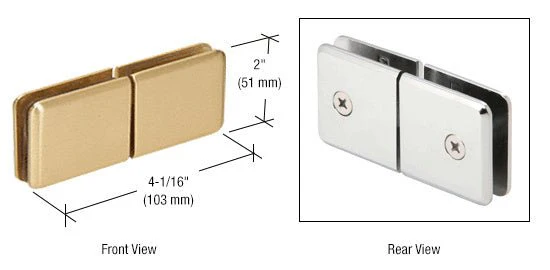

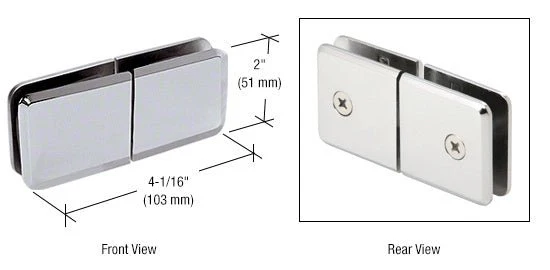

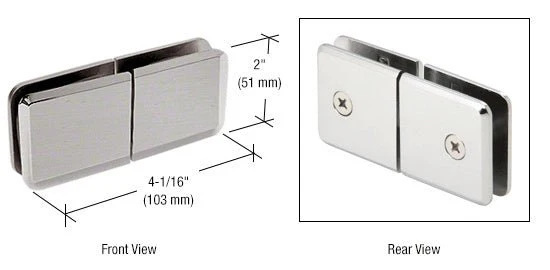

Square Beveled 180º Glass-to-Glass Movable Transom Clamp
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Wall Mount, and 180º Models Available
- Solid Brass Material
- Use Monolithic Tempered Glass

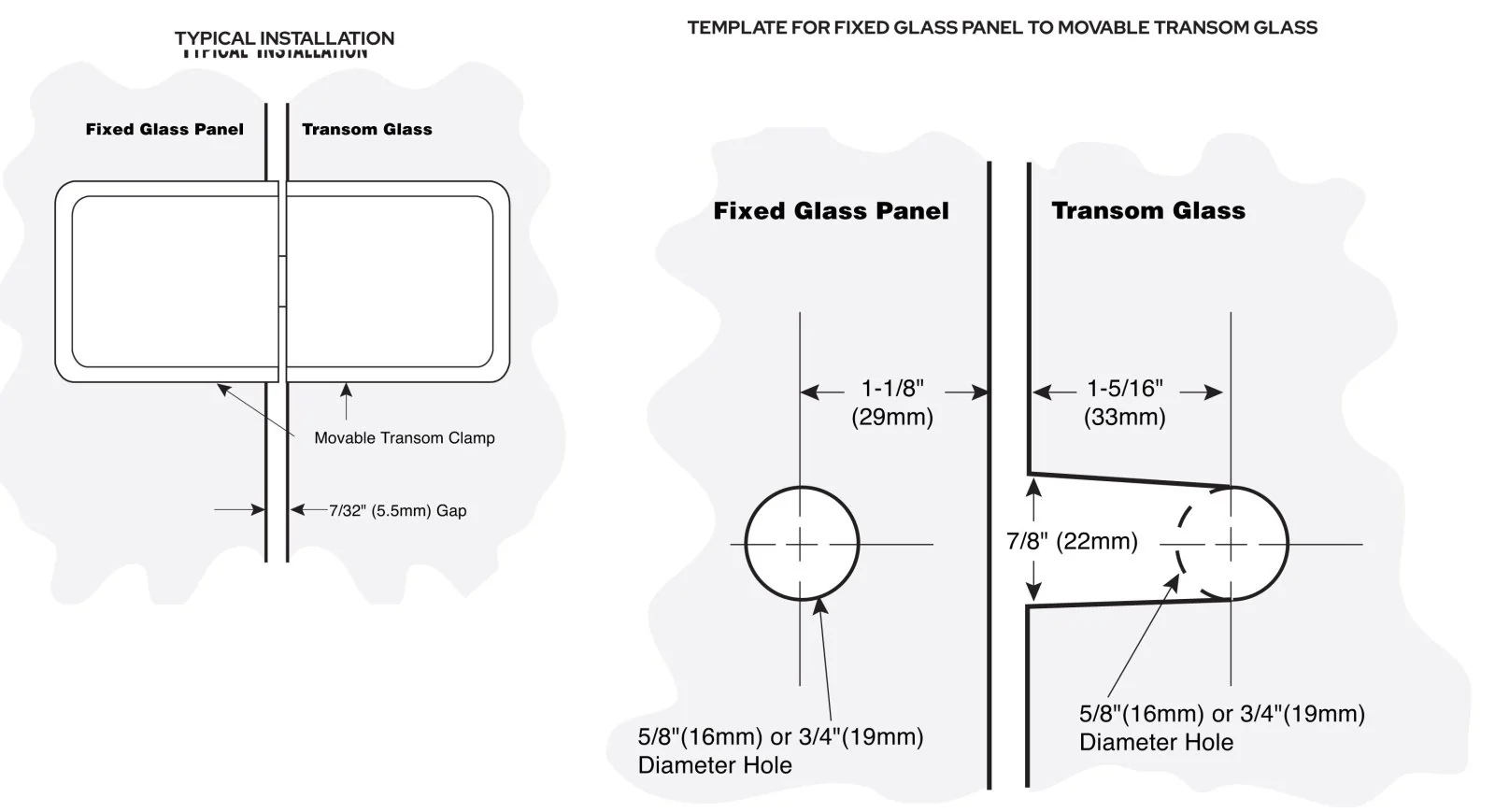

CRL Beveled 180º Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement.
Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
Original: $30.22
-70%$30.22
$9.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Wall Mount, and 180º Models Available
- Solid Brass Material
- Use Monolithic Tempered Glass
CRL Beveled 180º Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement.
Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
