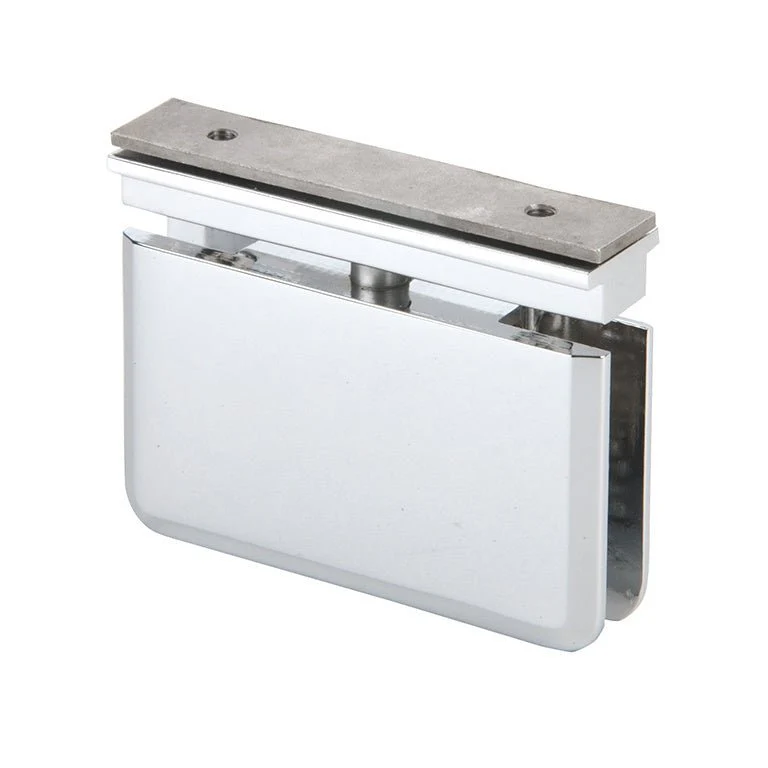

Senior Prima 06 Series EZ-Adjust Top Mount Hinge
- Top Mount (Compatible Only with EZ-Adjust Header. Use Cat. No. SRPPH01 as Bottom Hinge)
- For Use with 1/2" (12 mm) Glass
- Available in Several Beautiful Finishes
- No Drilling Required to Install Hinge Into EZ-Adjust Header
- Adjustable Side-to-Side After Installing
- 3 Year Warranty
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
Advantages ofĀ CRL Senior and Junior Prima HingesĀ include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. The Junior Prima Series is adaptable to our Junior Header Kit.
SENIOR PRIMA:Ā Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA:Ā Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Special Feature:Ā Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).
Custom finishes are available on request.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use.

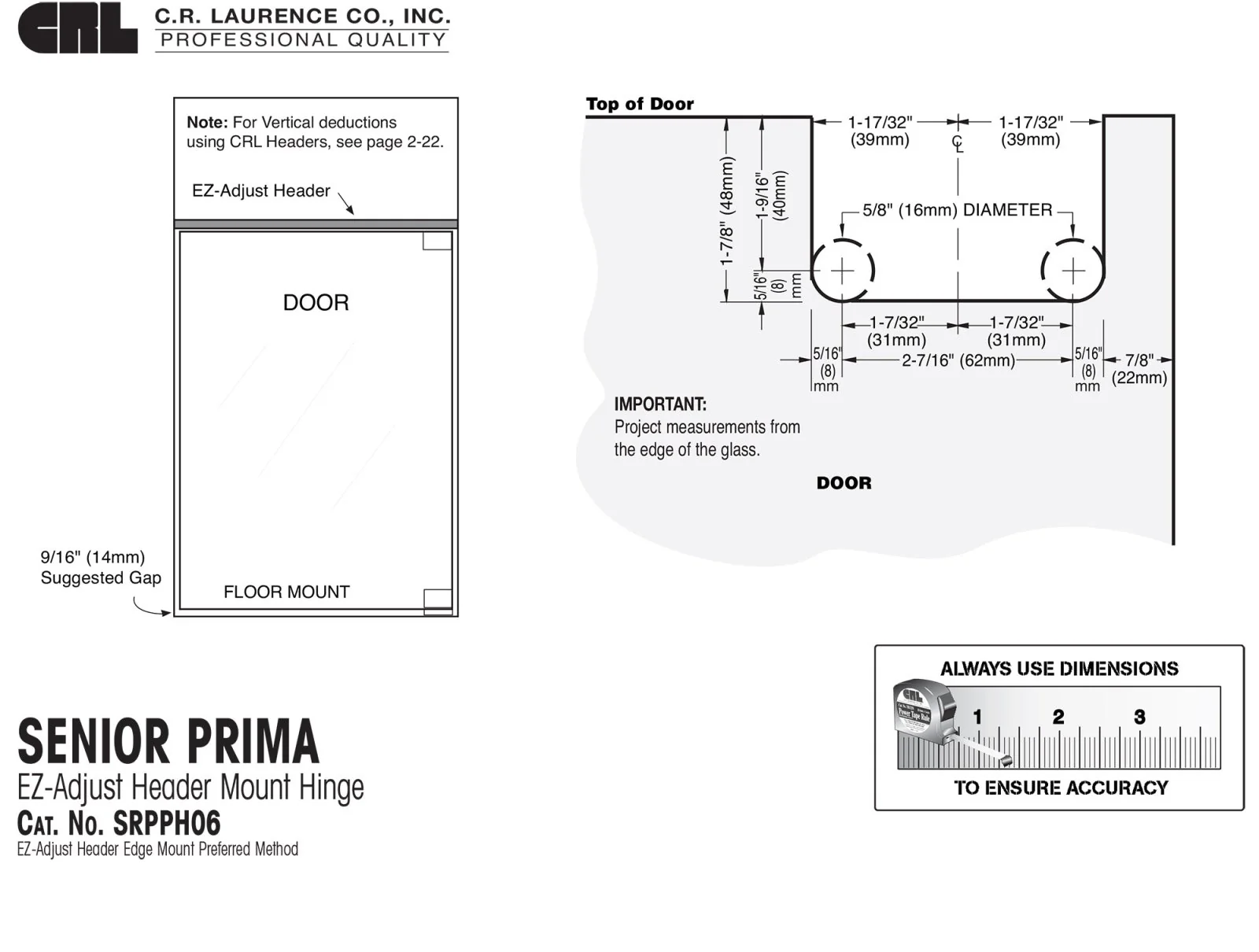

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
