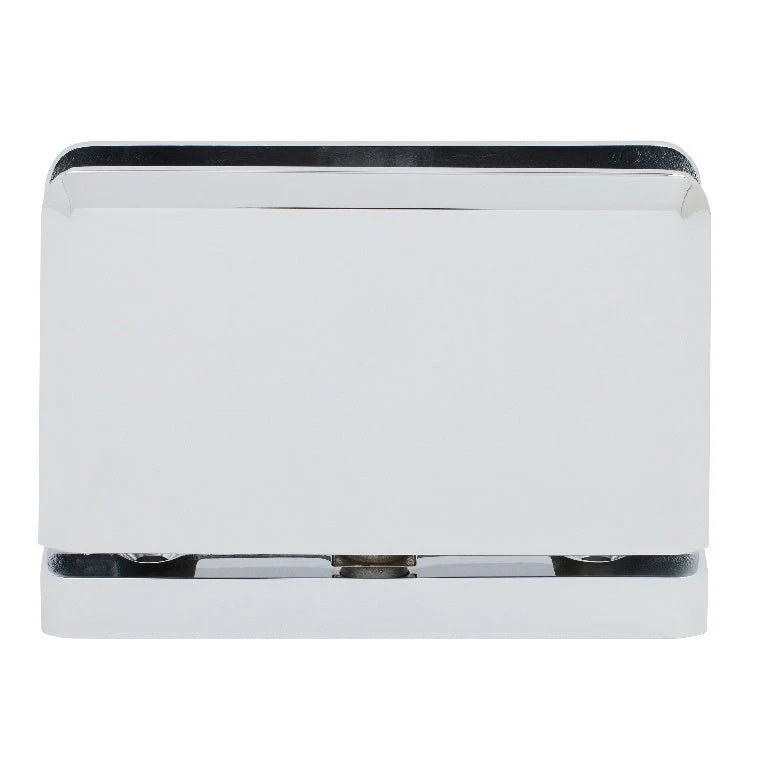

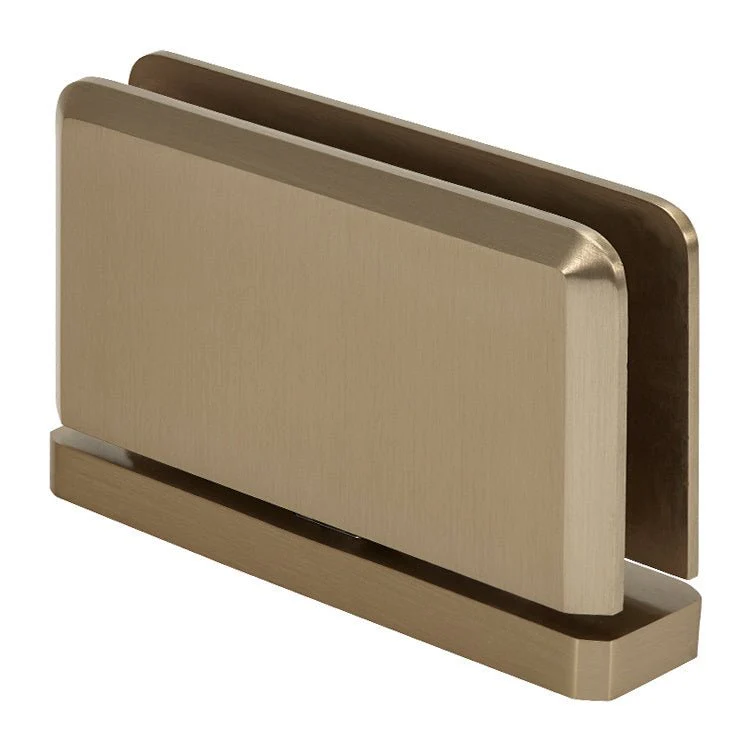

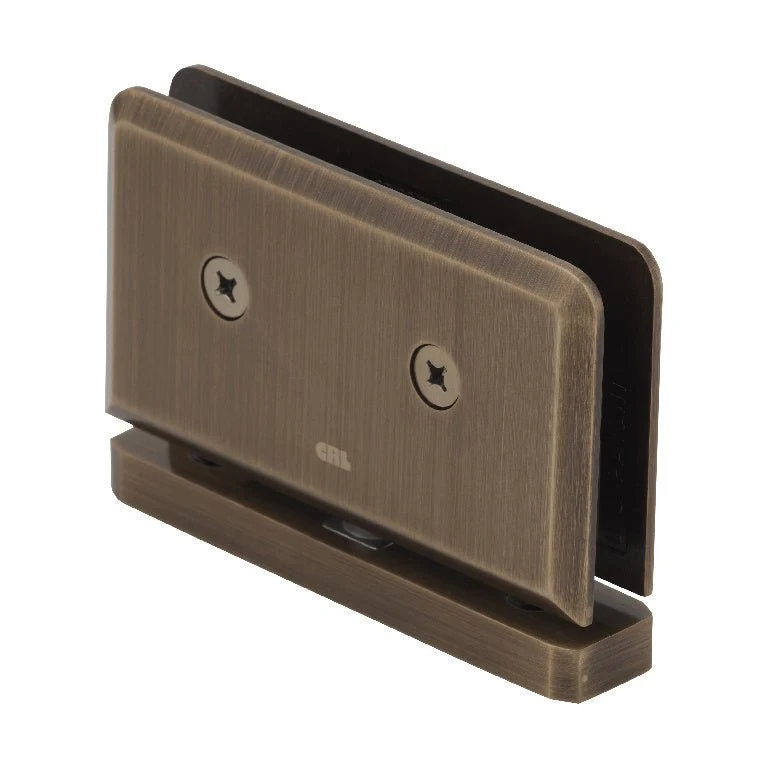

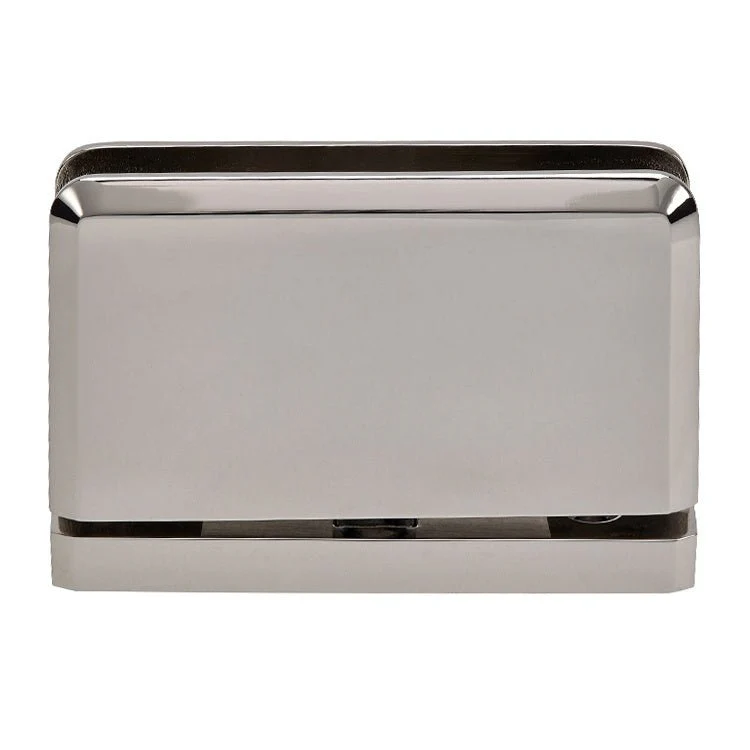

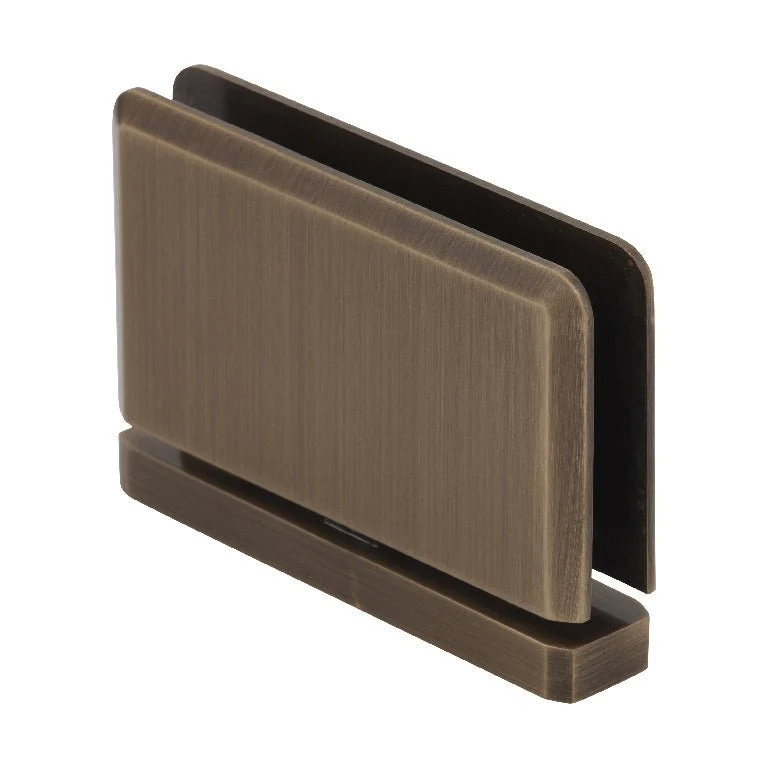

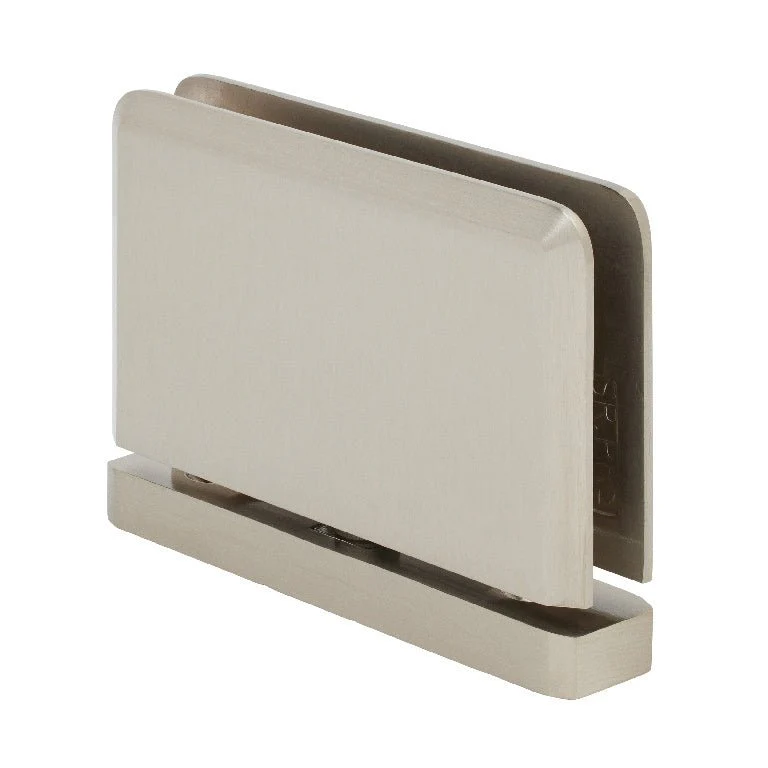

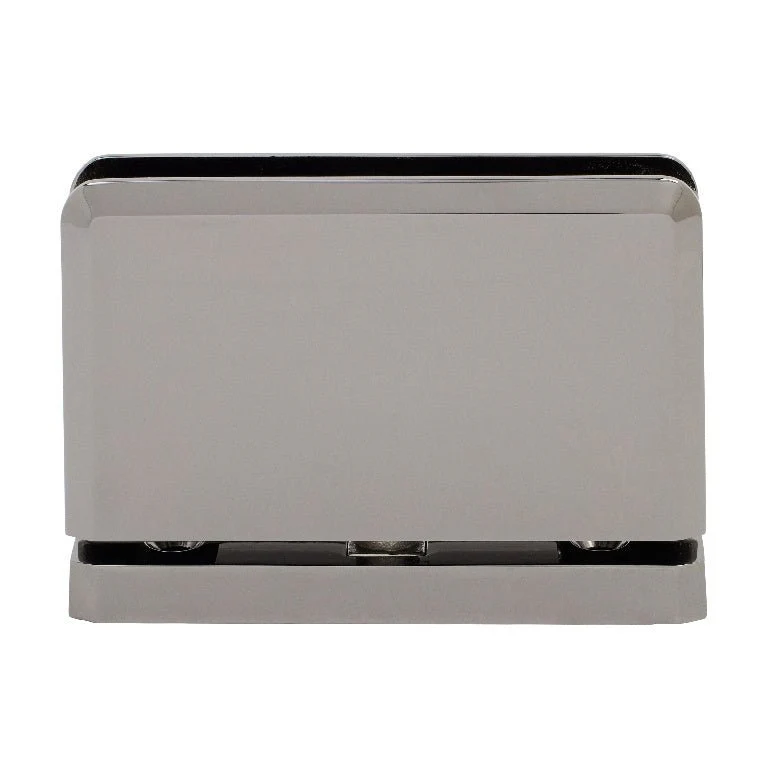

Senior Prima 01 Series Top or Bottom Mount Hinge
- Top or Bottom Mount
- For Use with 1/2" (12 mm) Glass
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
- 3 Year Warranty
- U.S. Patent 5,297,313
Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System.
NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System.
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)
Custom finishes are available on request.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Original: $78.20
-70%$78.20
$23.46Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Top or Bottom Mount
- For Use with 1/2" (12 mm) Glass
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
- 3 Year Warranty
- U.S. Patent 5,297,313
Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System.
NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System.
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)
Custom finishes are available on request.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
