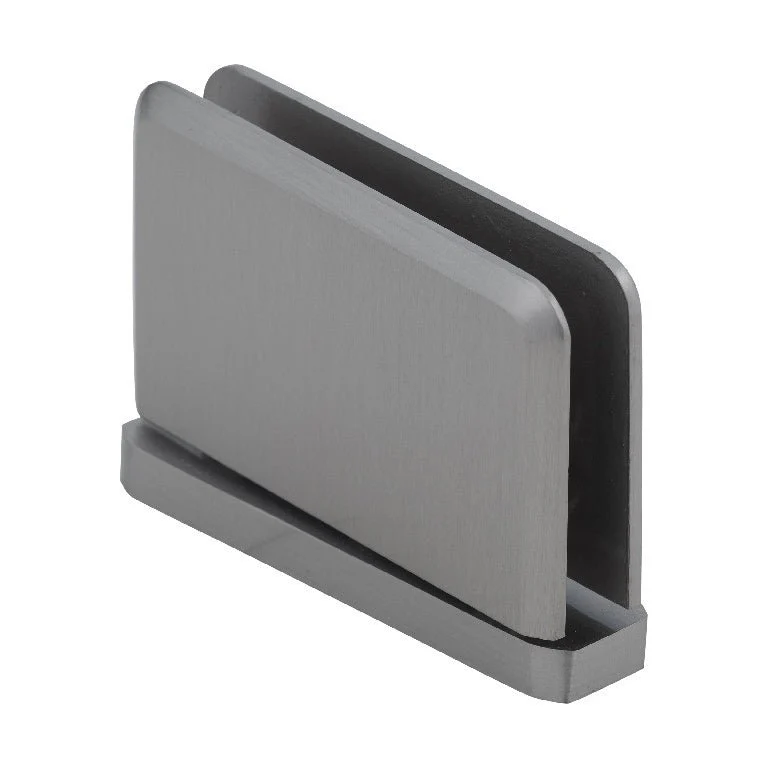

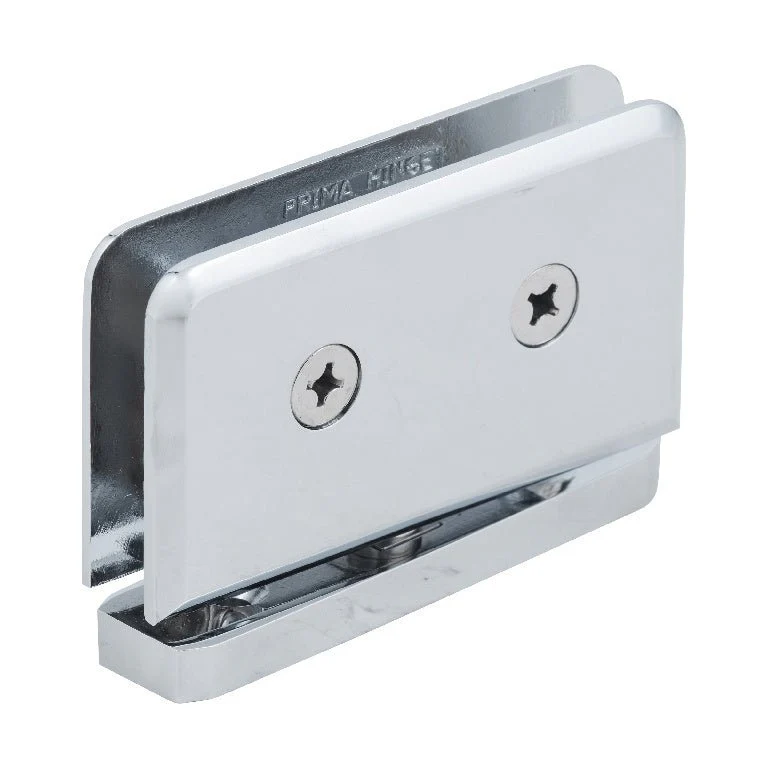

Prima #1 Pin 01 Series Top or Bottom Mount Hinge

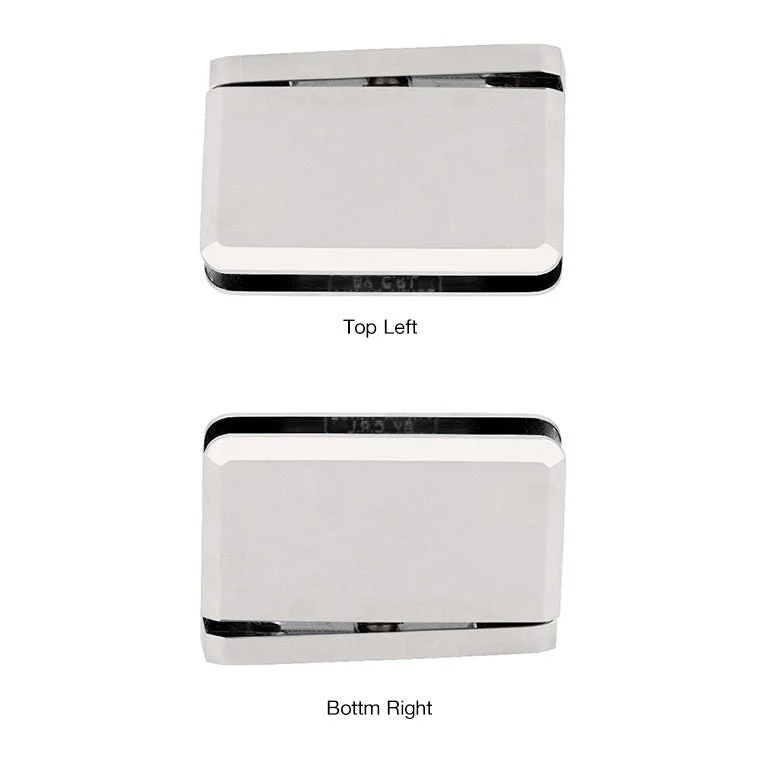

- Number One Pivot Pin Model for Mounting at Top Left or Bottom Right of Door (Viewed from Outside)
- Pre-Set 5 Degree Pin for Tighter Door Closure
- Available in Several Beautiful Finishes
- 3 Year Warranty
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
CRL Prima 5 degree Pre-Set HingesĀ are designed for use with 5/16" (8 mm) to 3/8" (10 mm) thick tempered safety glass. The Number One Pivot Pin Model is set so that it would be used at either the top left or bottom right of the door. The Number Two Pivot Pin Model is set so that it would be used at either the top right or bottom left of the door. When installing, you will always use one Number One Model, and one Number Two Model. They can then be positioned with the options described above. The 5 degree Pivot Pins allow the door to close 5 degree further into the shower enclosure. This is especially helpful in closing the door tightly against a strike jamb. These hinges may be mounted floor and ceiling, or into our Deluxe Header System.
Using two hingesĀ with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).
This hinge series is patented (Patent No. 5,297,313).
*ORDERING TIP:Ā When ordering Prima 5 degree Pre-Set Hinges, you should order one each of the Number One Pivot Pin Model, and one each of the Number Two Pivot Pin Model per door.
Custom finishes are available on request.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
