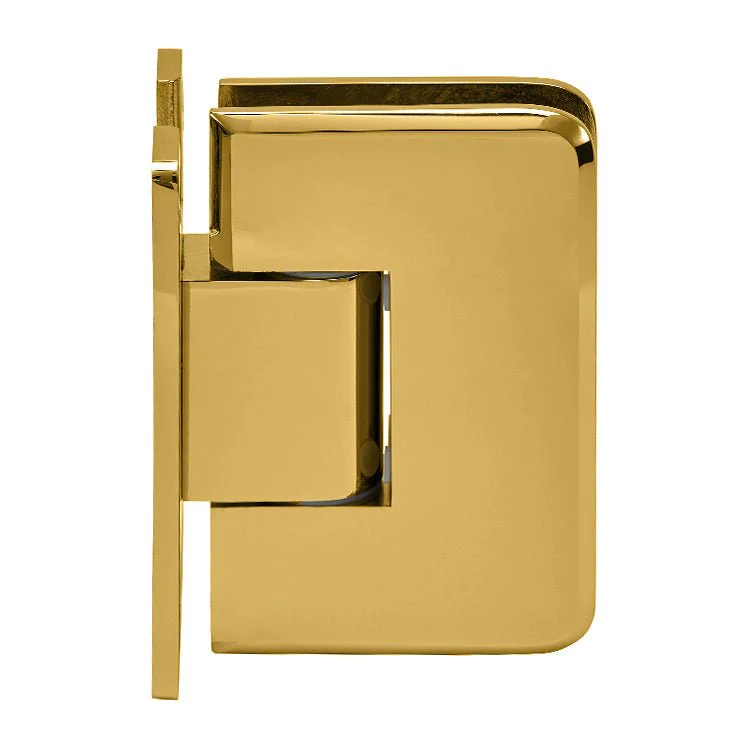

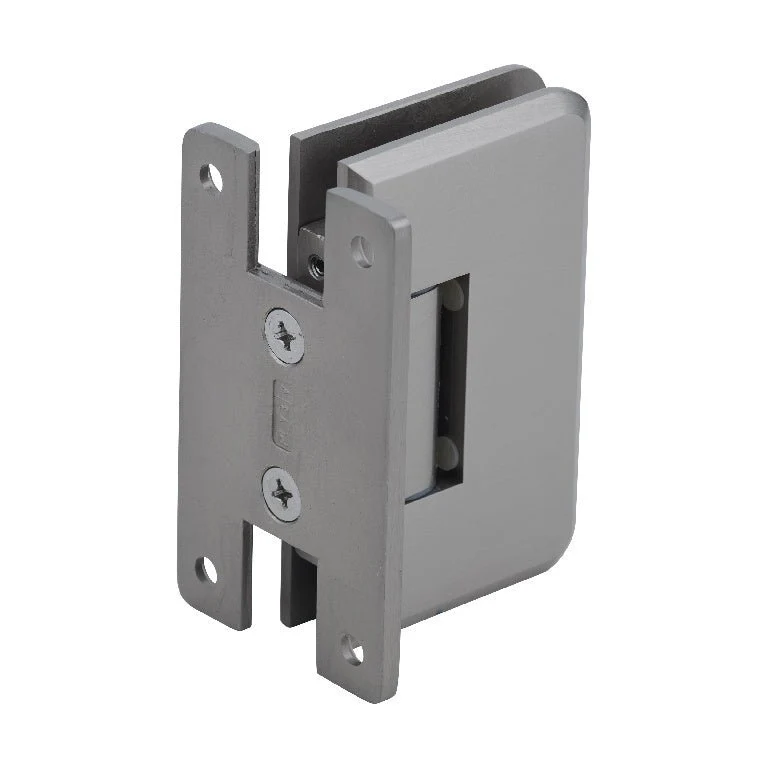

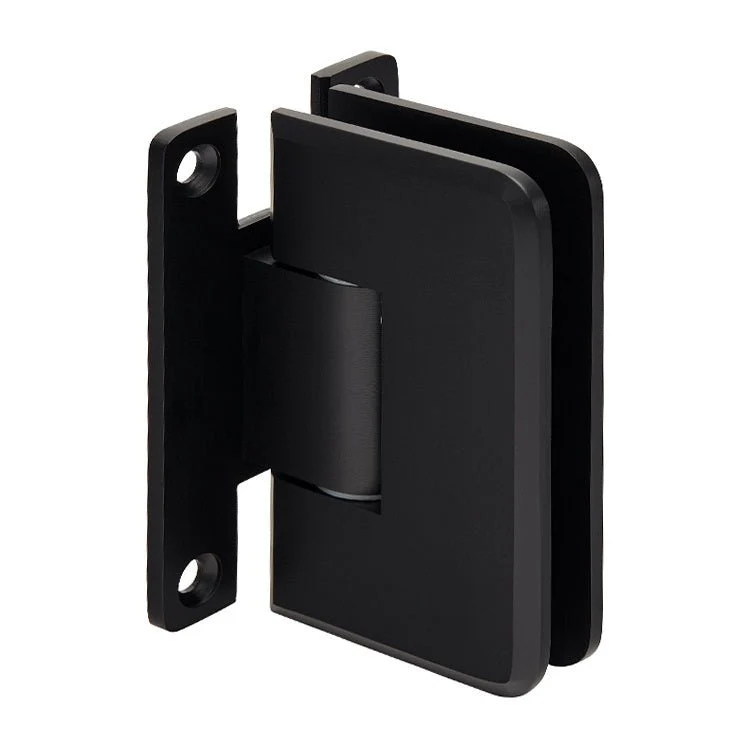

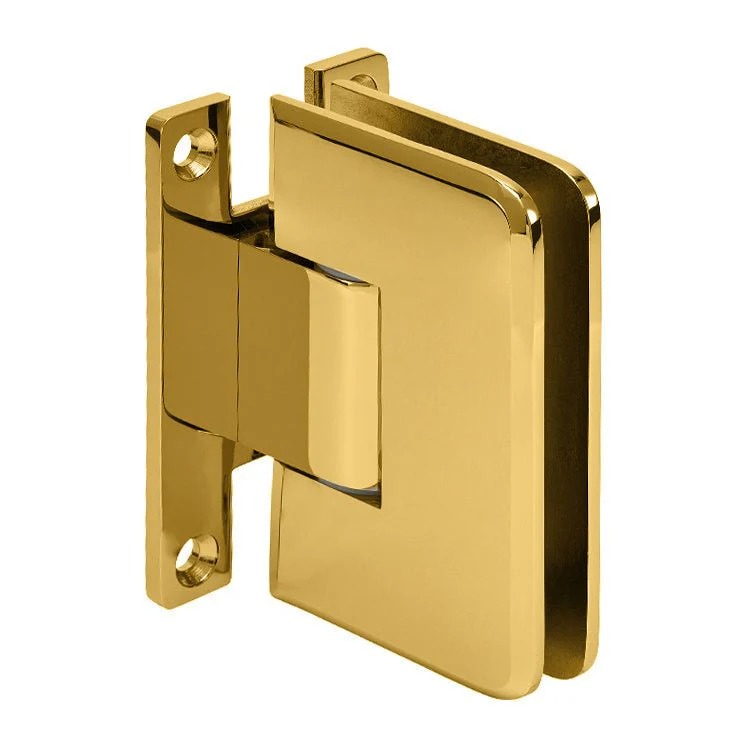

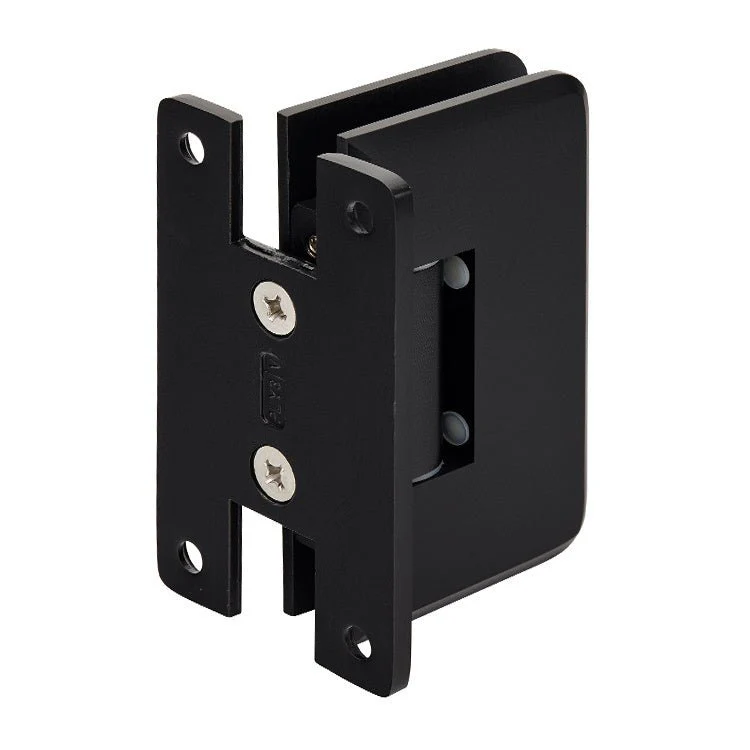

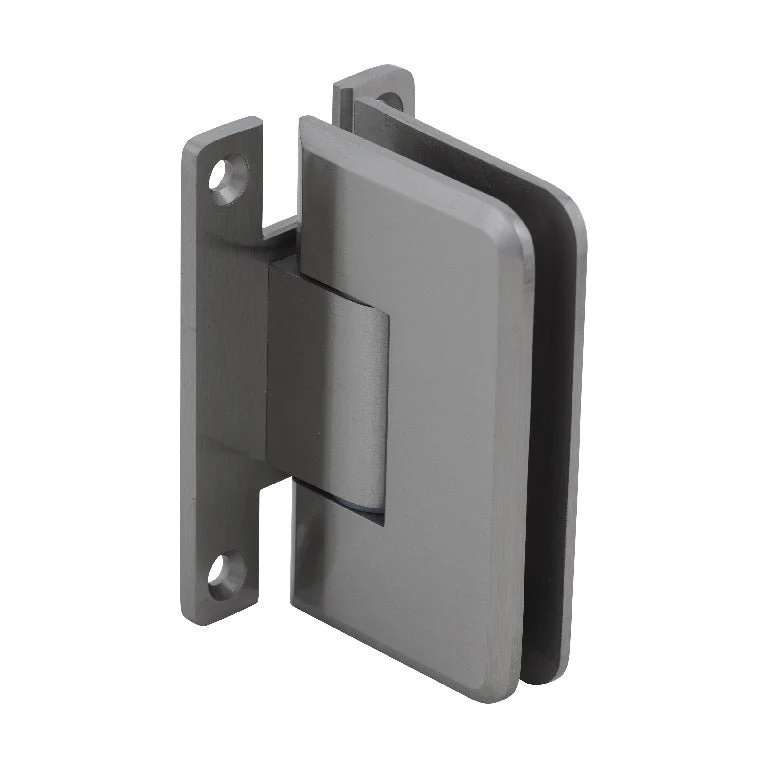

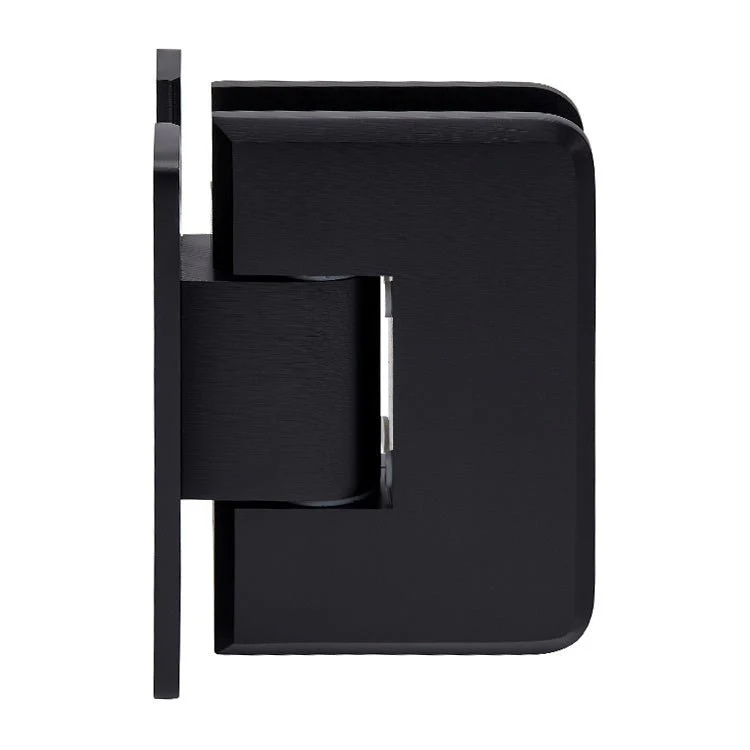

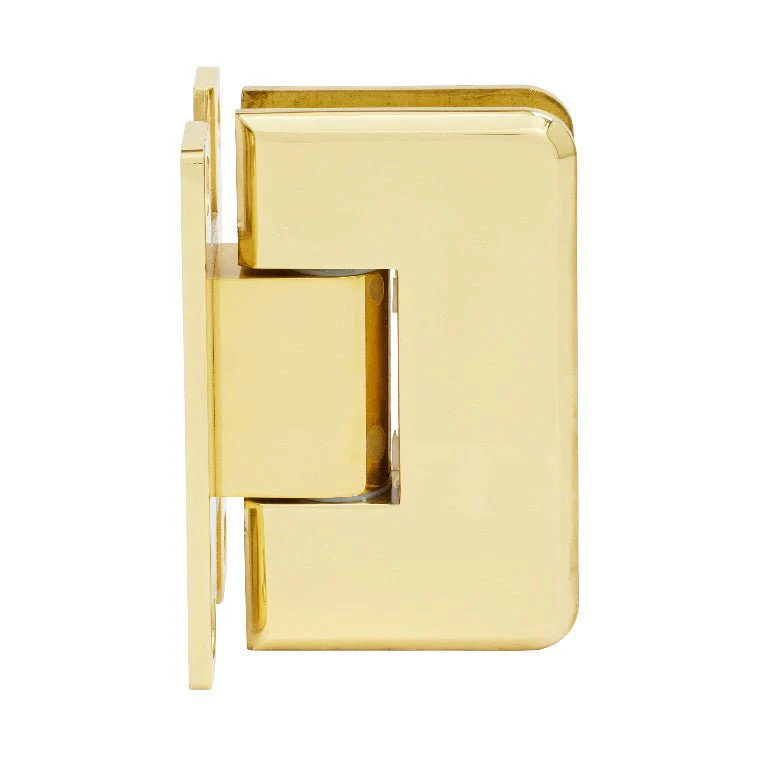

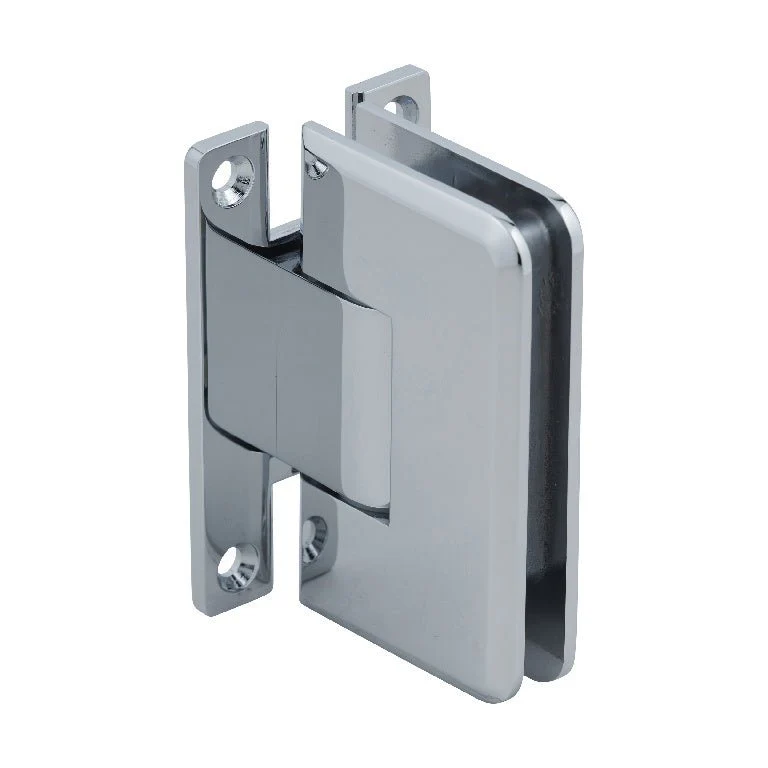

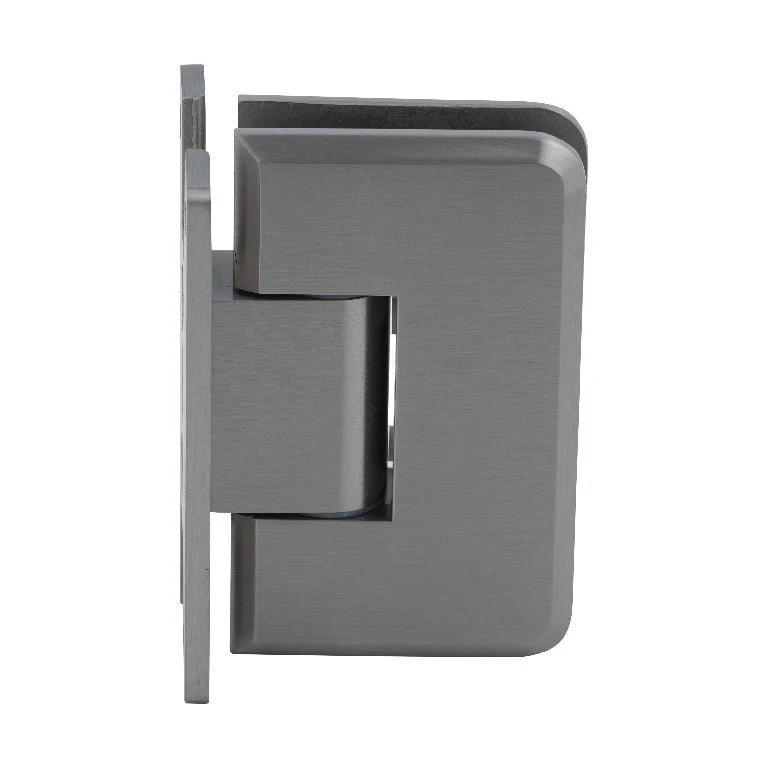

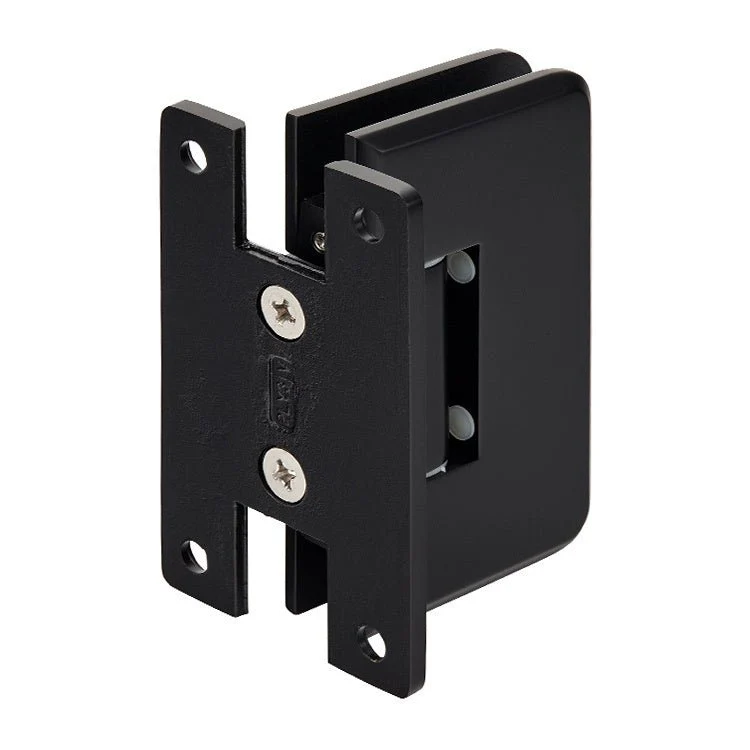

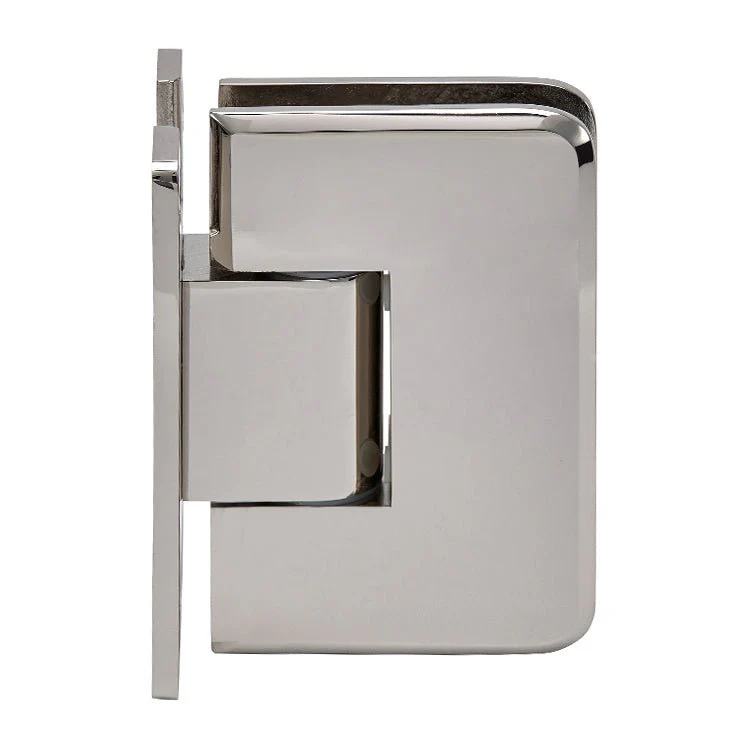

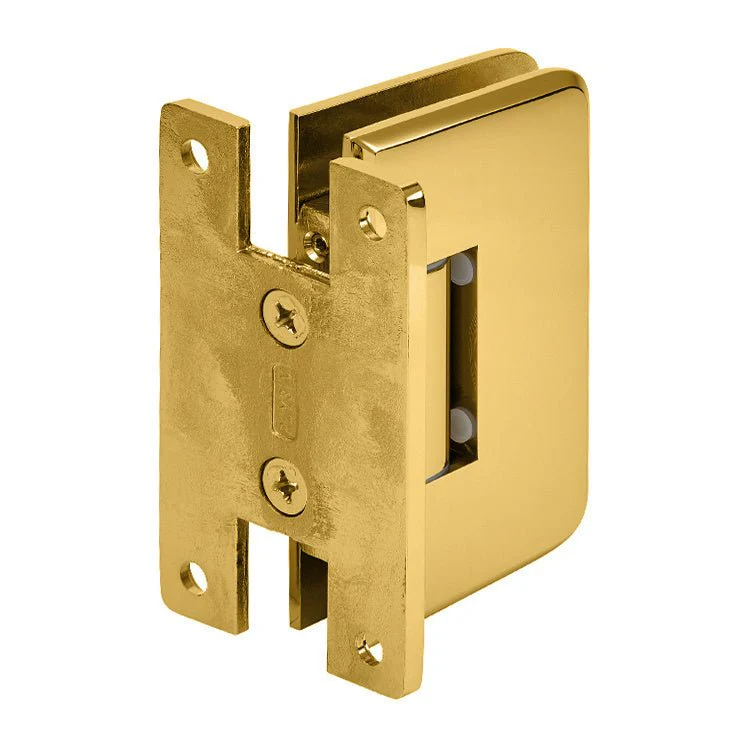

Plymouth Series Wall Mount 'H' Back Plate Hinge
- An Excellent Choice for Heavier, Wider Shower Doors
- Integrated Safety Interlock Enhances Glass Panel Control
- Wall Mount and 180 Degree Glass-to-Glass Models Available
- For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass
CRL Plymouth Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.
NOTE: Do not use three hinges.
This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).
NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.
Product Warning:

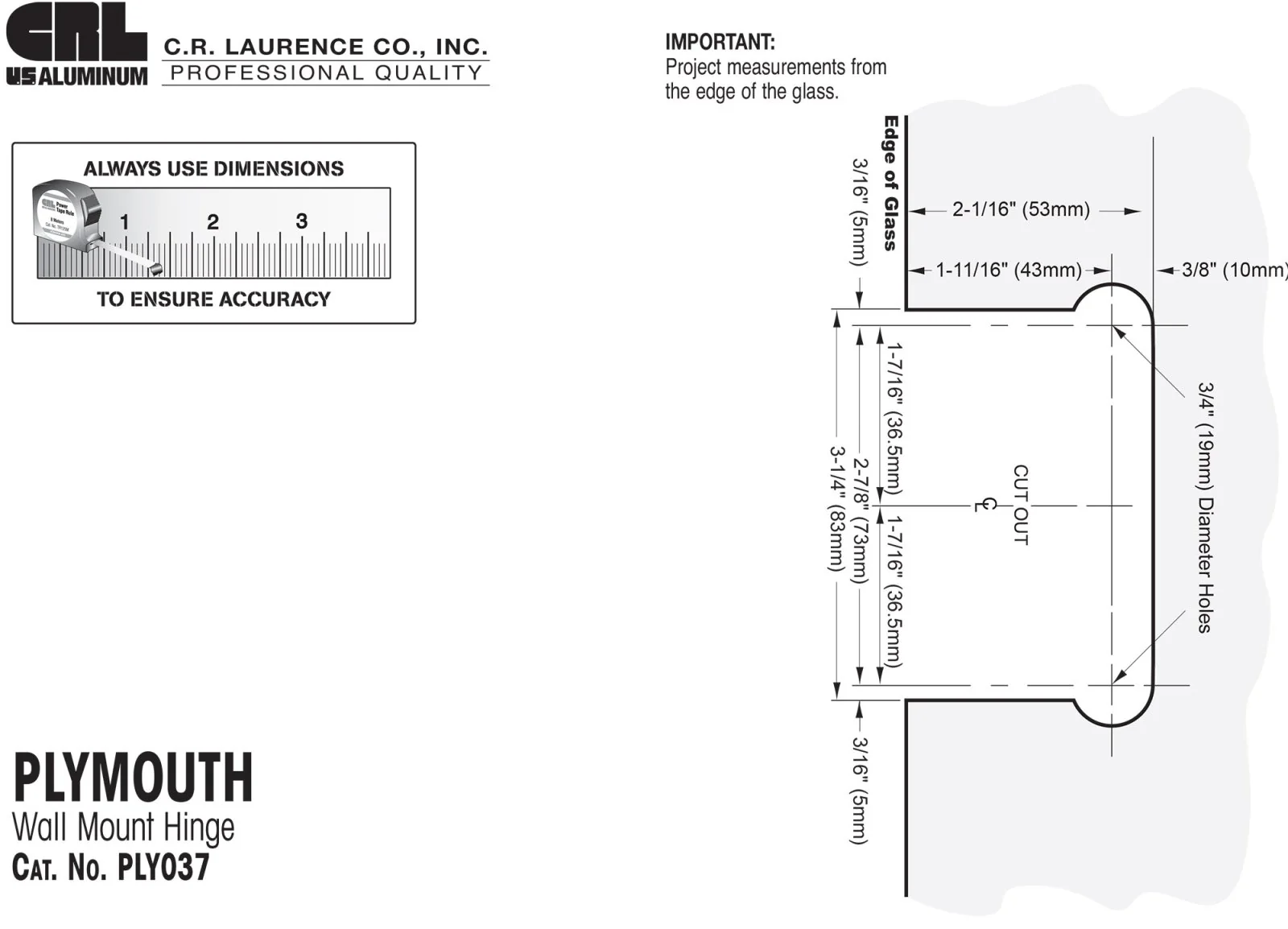

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
