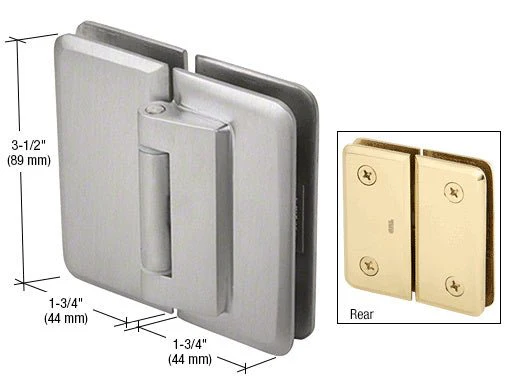

Petite 181 Series 180 Degree Glass-to-Glass Hinge Swings Out Only

• 180 Degree Glass-to-Glass (Door Swings Degree Out Only). Requires Holes Only, No Cut-Out! Provides Added Adjustment Room
• Precise Closing Feature to Zero Degrees
• Available in Several Beautiful Finishes
• Three Year Warranty
• Use Monolithic Tempered Glass

The CRL Petite Series provides a complete spectrum of Hinges for frameless shower doors using 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Developed to allow virtually every application configuration, they deliver design freedom. The Petite Series includes three unique types: The PET044 Wall Mount Flush Back Plate Hinge allows for a clean exterior sight line by having all mounting screws inside the shower; the PET181 Glass-to-Glass Hinge is used to mount a door to a fixed panel in a 180 degree plane, and allows the door to swing in a complete 180 degree arc outwards; the PET182 Glass-to-Glass Hinge allows the door to swing in a complete 180 degree arc inwards. Petite Hinges have mitered edges with curved corners to provide an aesthetically pleasing look. Petite Hinges have 25% thicker plates than competitive Hinges, thereby reducing deflection and providing greater holding power.

Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).

Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).

CRL Shower Door Hinges are designed for residential or hotel shower use.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
