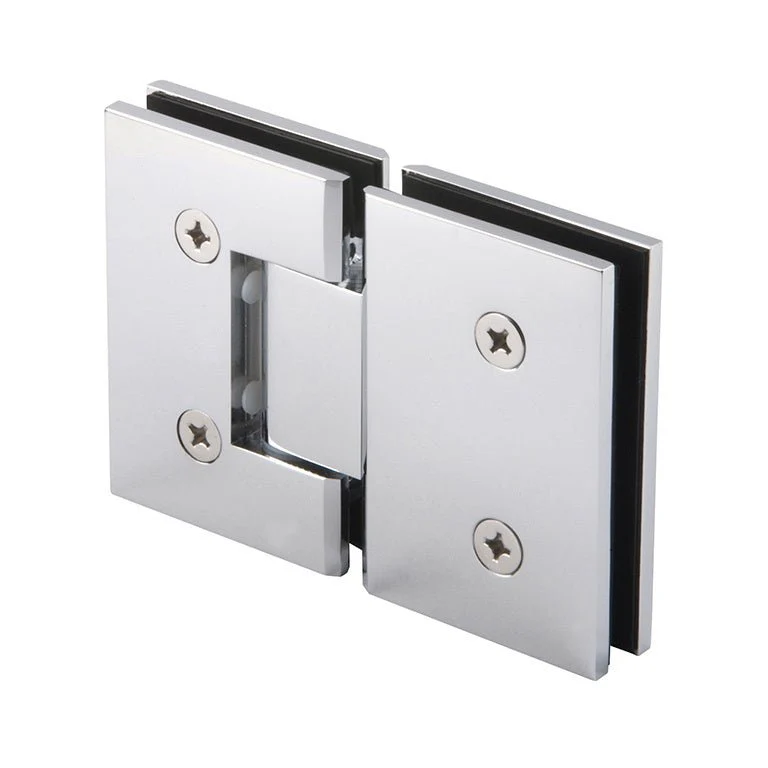

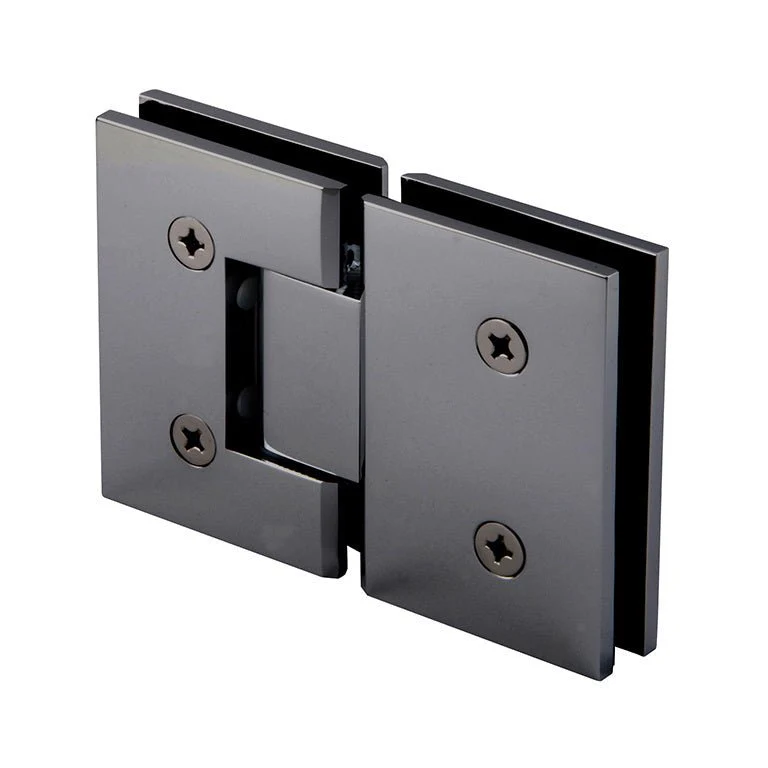

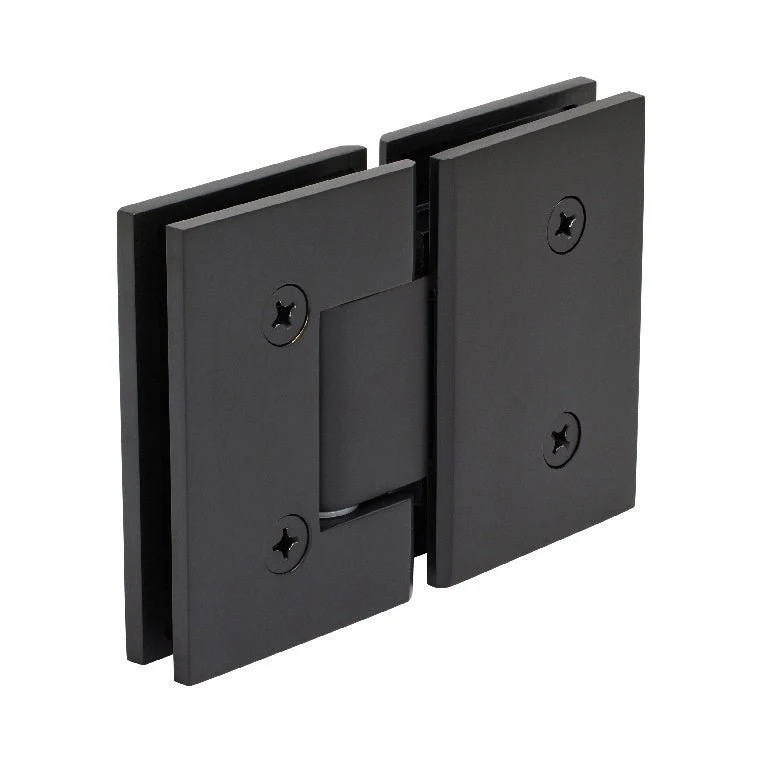

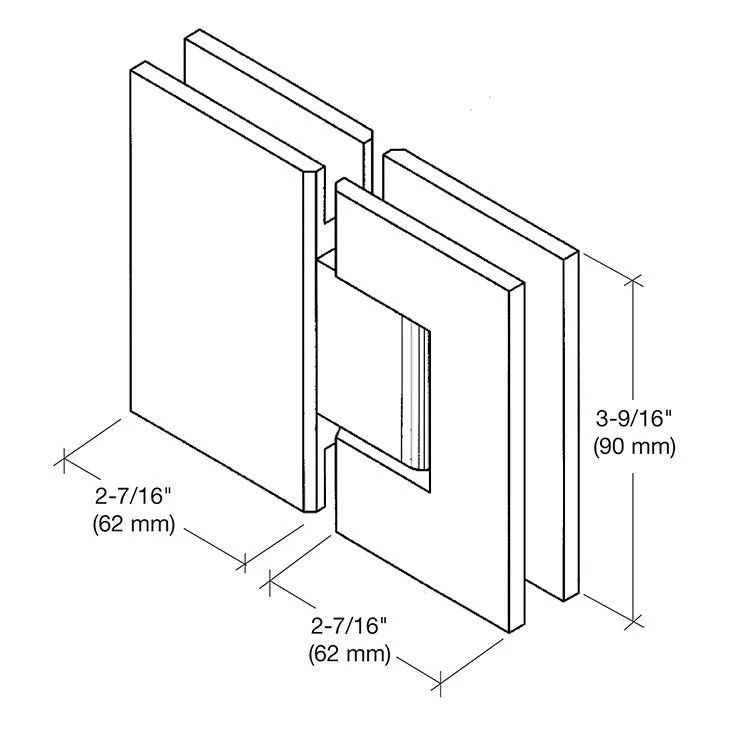

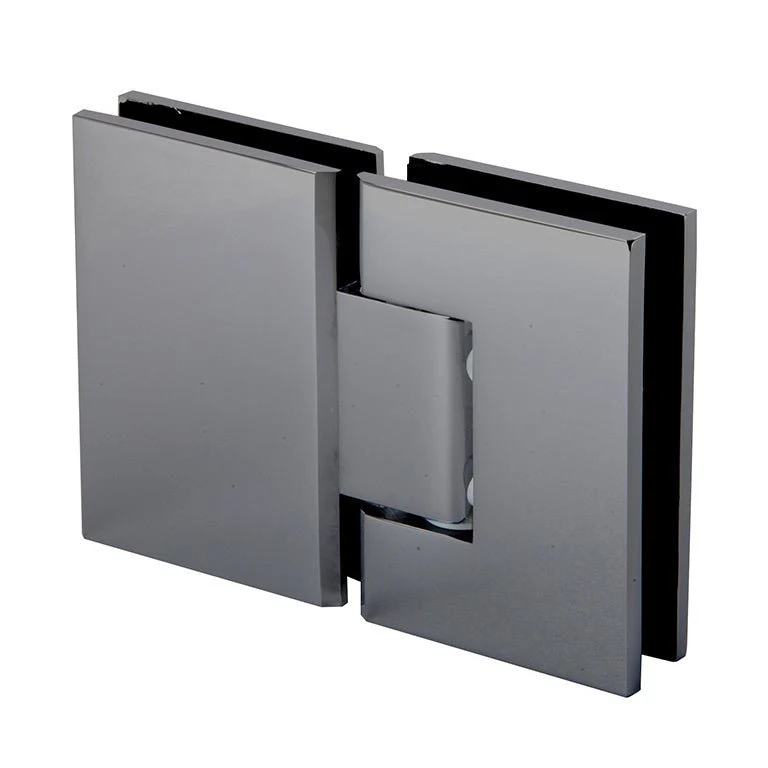

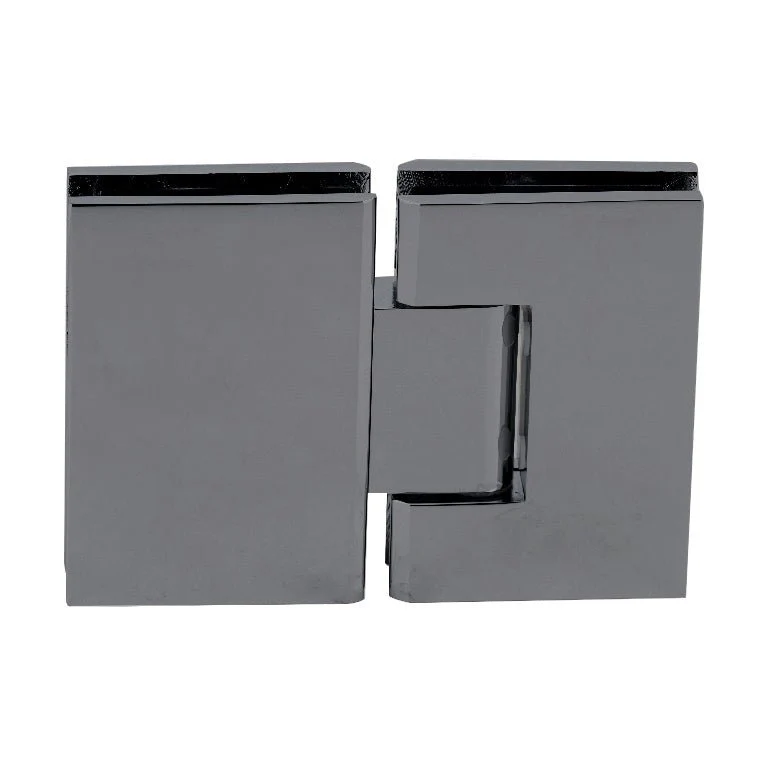

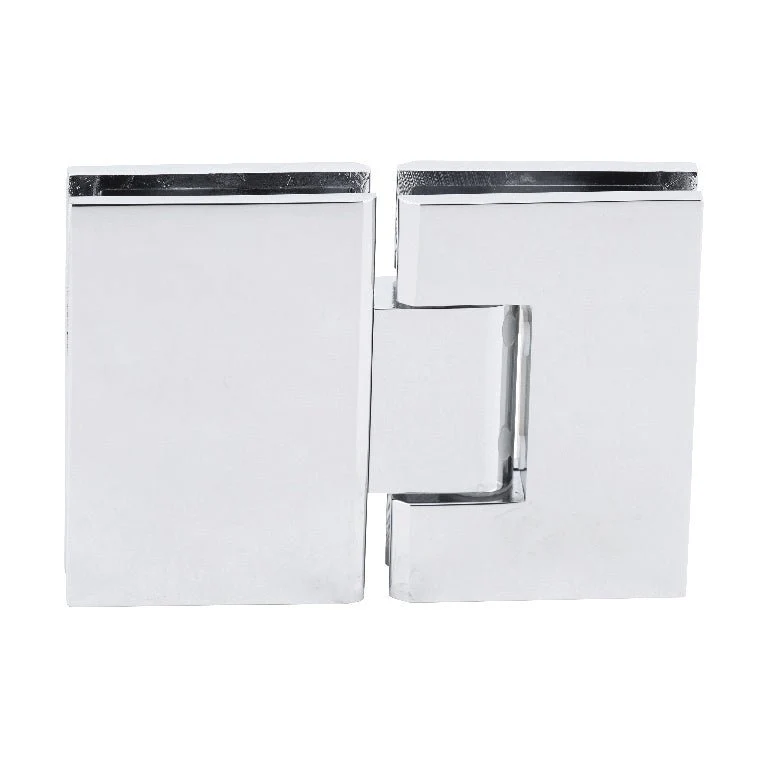

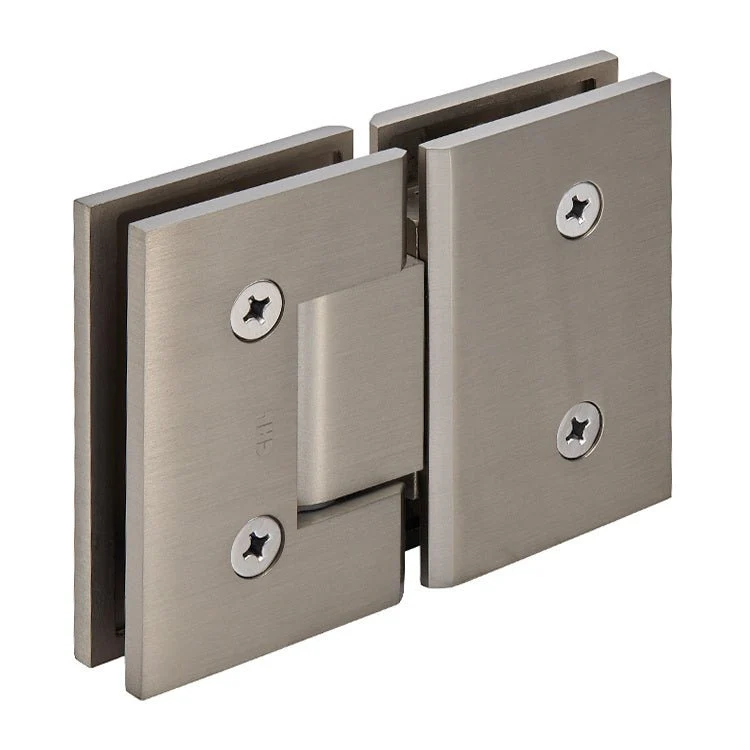

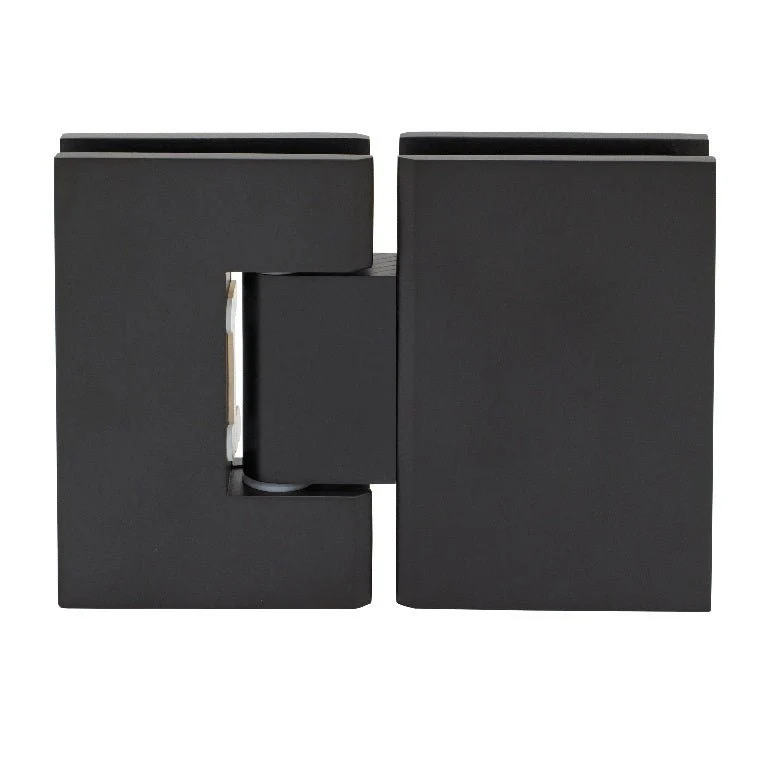

Melbourne 180 Degree Glass-to-Glass Hinge
- Large Hinge Plates Provide More Clamping Force
- Inset Style Gasket System Allows Ease of Installation

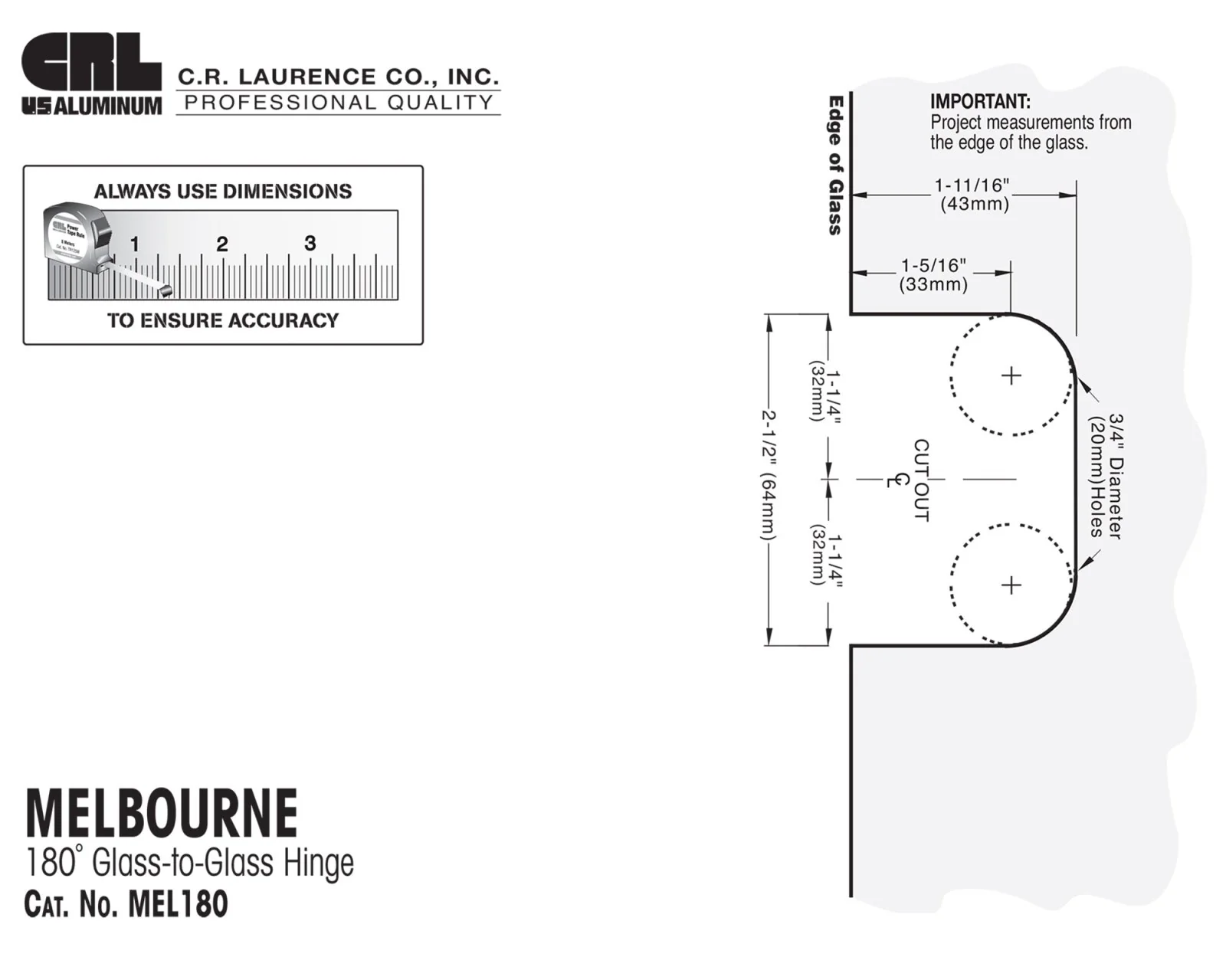

- Glass Fabrication Required is a Simple Rectangular Cut-out
- For Use With 1/2" 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out and inset style gasket system allow ease of installation. Constructed of solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates (for MEL024 only) to conceal the rear hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finished available.
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
