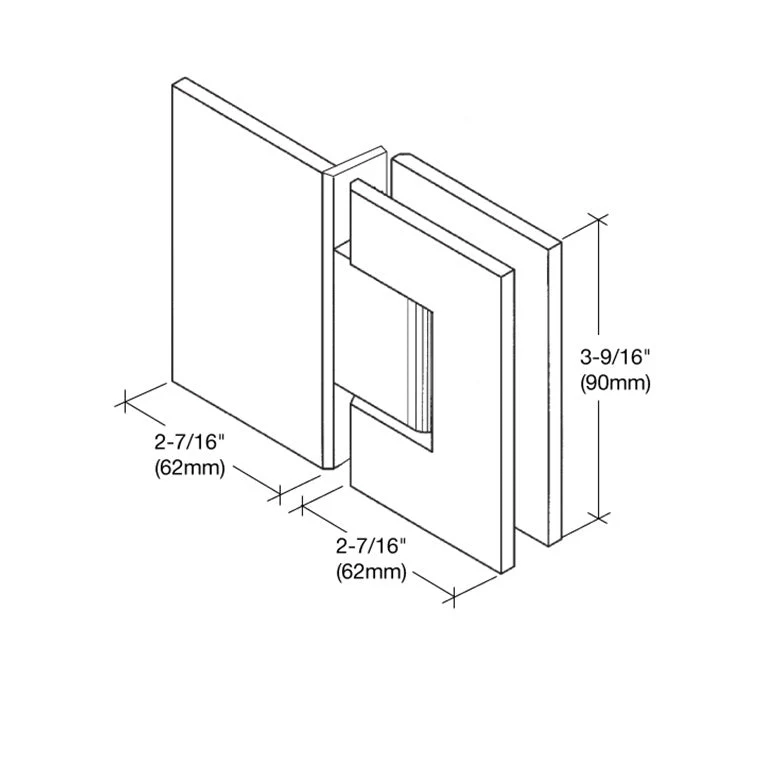

CRL Face Mount Melbourne Hinge with Cover Plate
- Large Hinge Plates Provide More Clamping Force
- Simple Rectangular Cut-Out for Ease of Glass Fabrication
- For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
- Stocked in Three Popular Finishes, with Custom Finishes Available
CRL Melbourne Series HingesĀ feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers Four versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Original: $160.32
-70%$160.32
$48.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Large Hinge Plates Provide More Clamping Force
- Simple Rectangular Cut-Out for Ease of Glass Fabrication
- For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
- Stocked in Three Popular Finishes, with Custom Finishes Available
CRL Melbourne Series HingesĀ feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers Four versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
