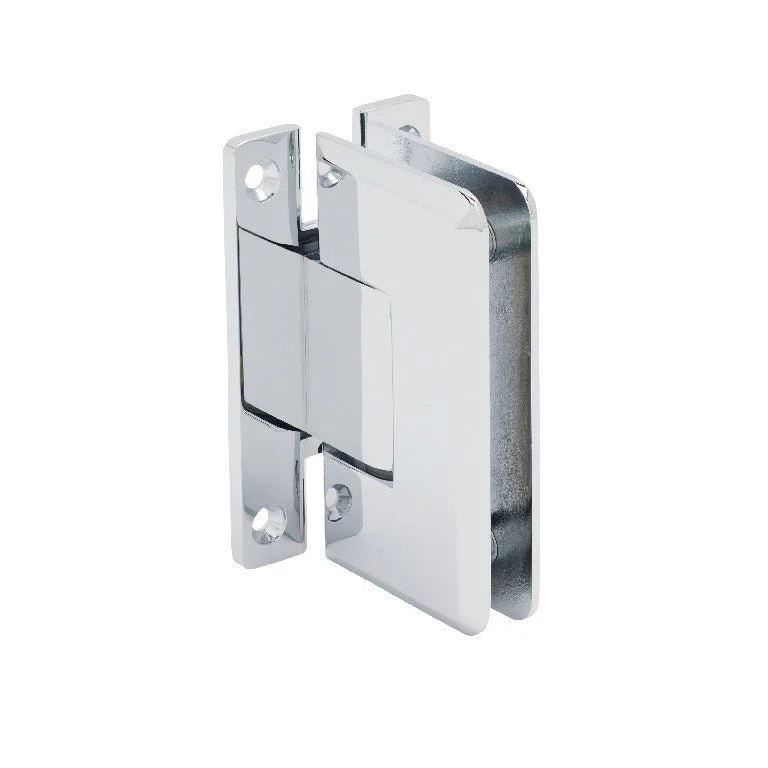

Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge

• Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
• Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges
• Stocked in Four Most Popular Finishes
• Other Finished Available Upon Special Order

The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

Custom finishes are available on request.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
