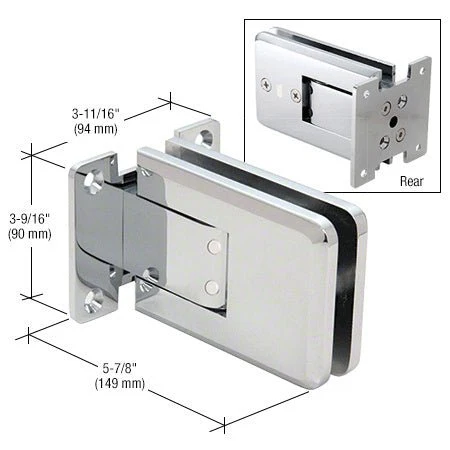

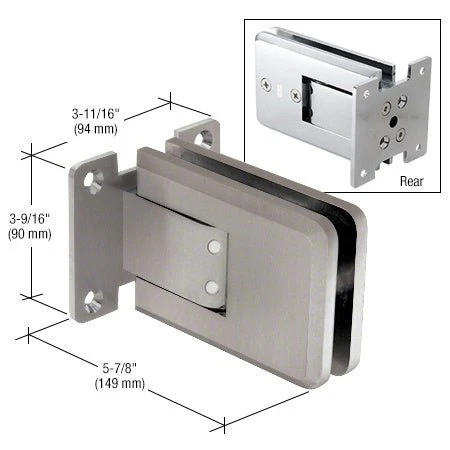

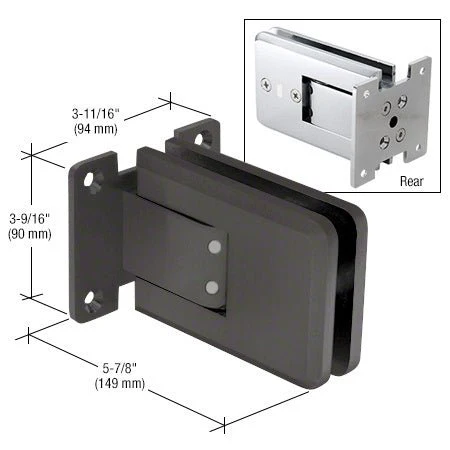

Atlas Glass Door Hinge

Atlas Glass Door Hinge

  • Self-Centering Function
  • Hold Open at 90 Degrees
  • Use Monolithic Tempered Glass
  • Easy to Set Closed Position
  • Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
  • Easy Closed Position Adjustment for Double Door or Inline Panel Applications
  • Four Architectural Finishes
This innovative CRL Atlas Series 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).

The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.

The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.

NOTE: Do not exceed two Hinges per door.

Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;
Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Select Finish
From $97.94

Original: $326.46

-70%
Atlas Glass Door Hinge—

$326.46

$97.94

Product Information

Shipping & Returns

Description

  • Self-Centering Function
  • Hold Open at 90 Degrees
  • Use Monolithic Tempered Glass
  • Easy to Set Closed Position
  • Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
  • Easy Closed Position Adjustment for Double Door or Inline Panel Applications
  • Four Architectural Finishes
This innovative CRL Atlas Series 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).

The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.

The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.

NOTE: Do not exceed two Hinges per door.

Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;
Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
