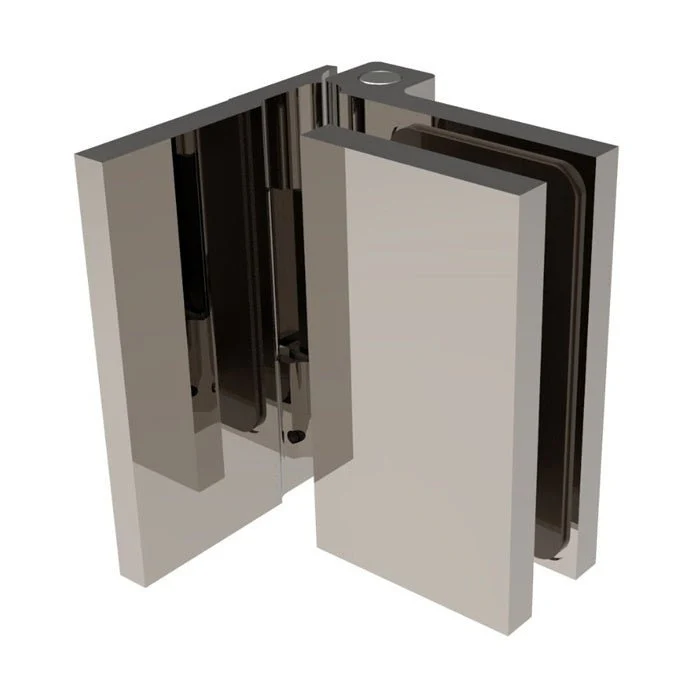

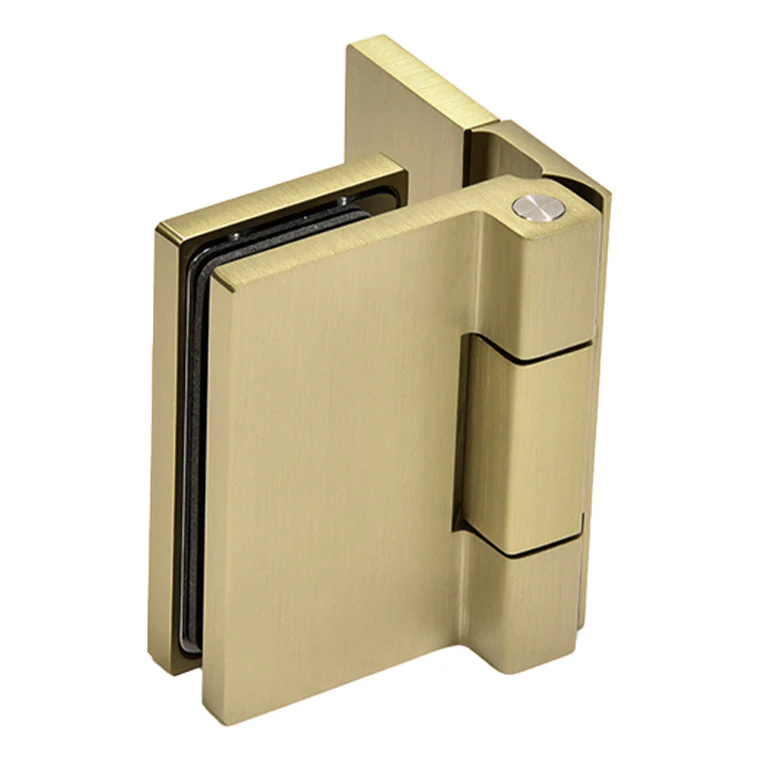

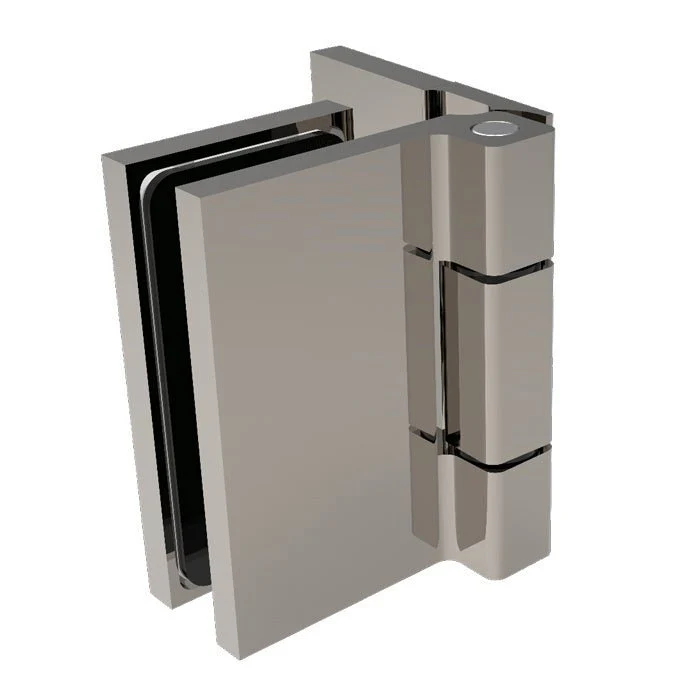

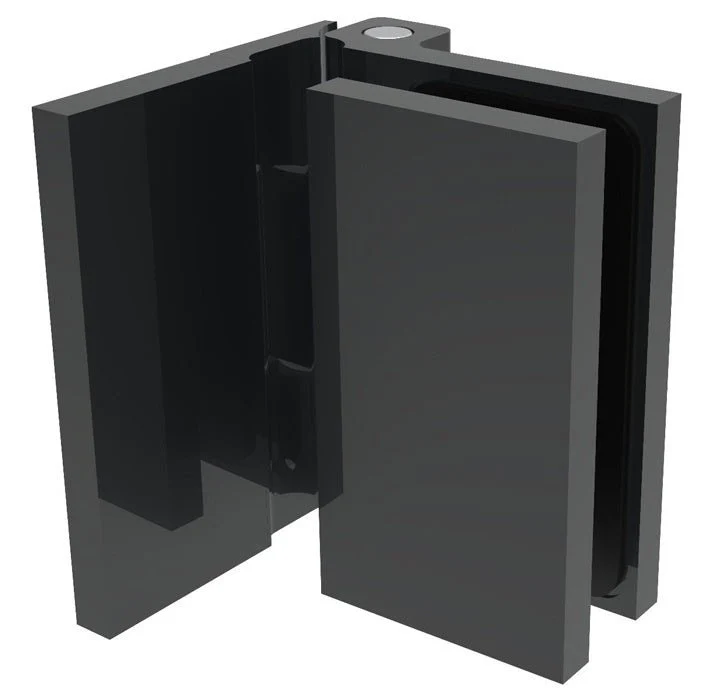

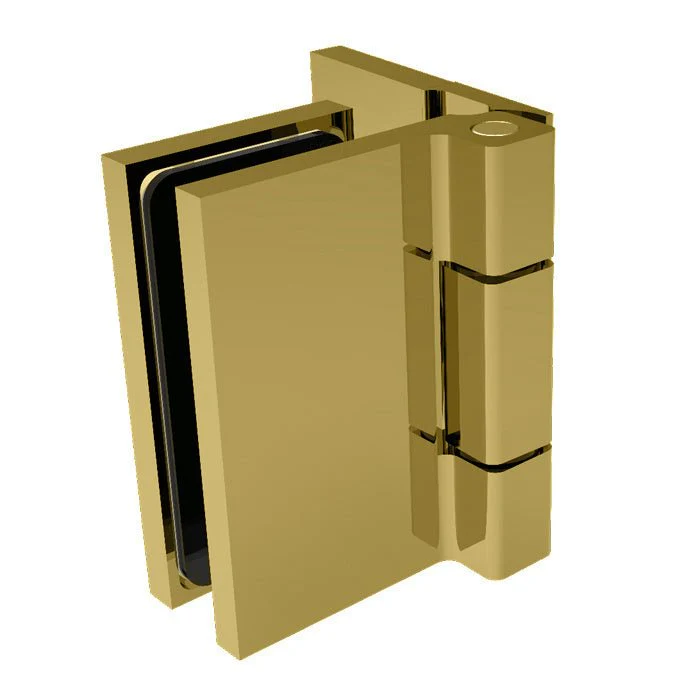

Como Series Wall Mount Outswing Hinge

• Wall Mount Outswing
• Works with 5/16" to 3/8" (8 to 10 mm) glass
• 180-Degree Free Swing

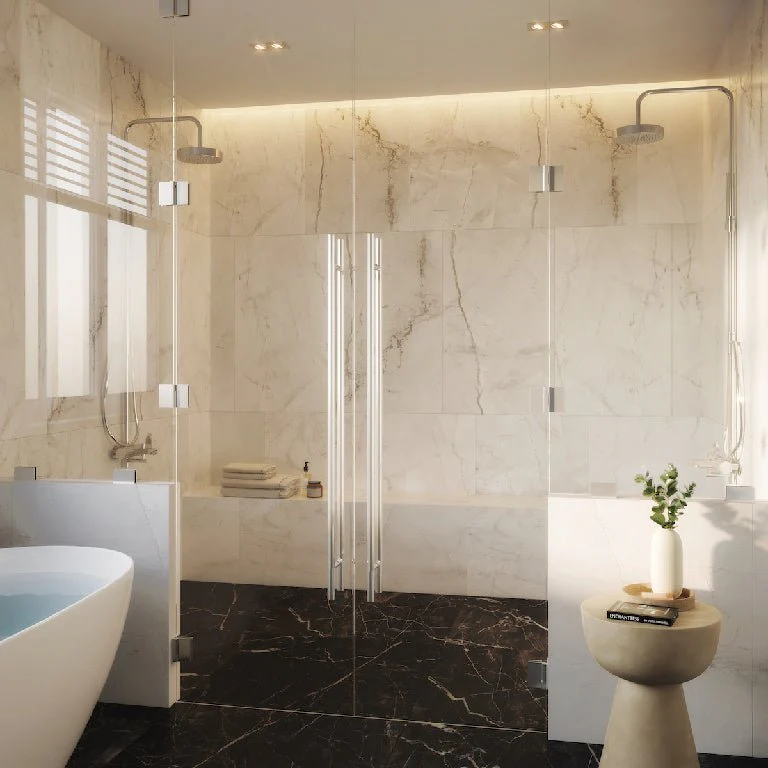

• Allows Saloon Door Configuration
• Ideal for Wheelchair Accessibility

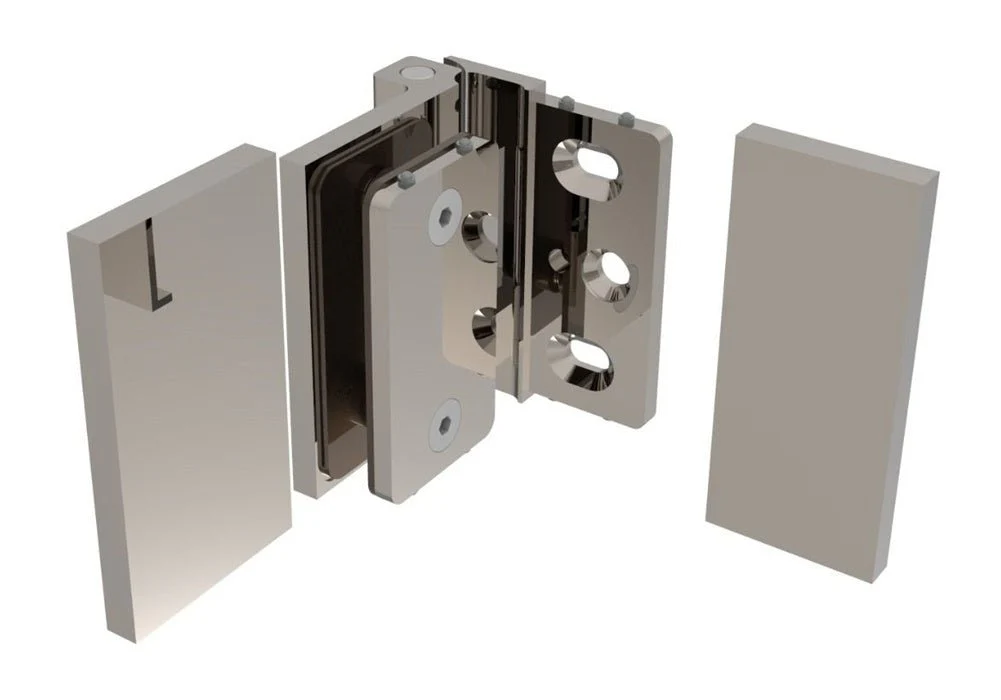

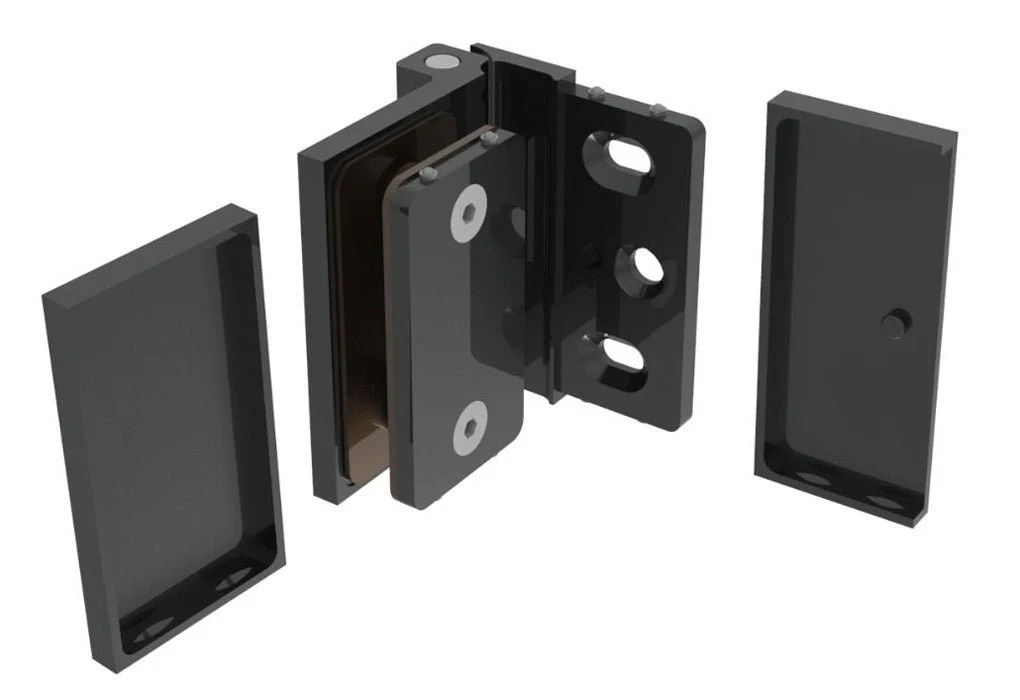

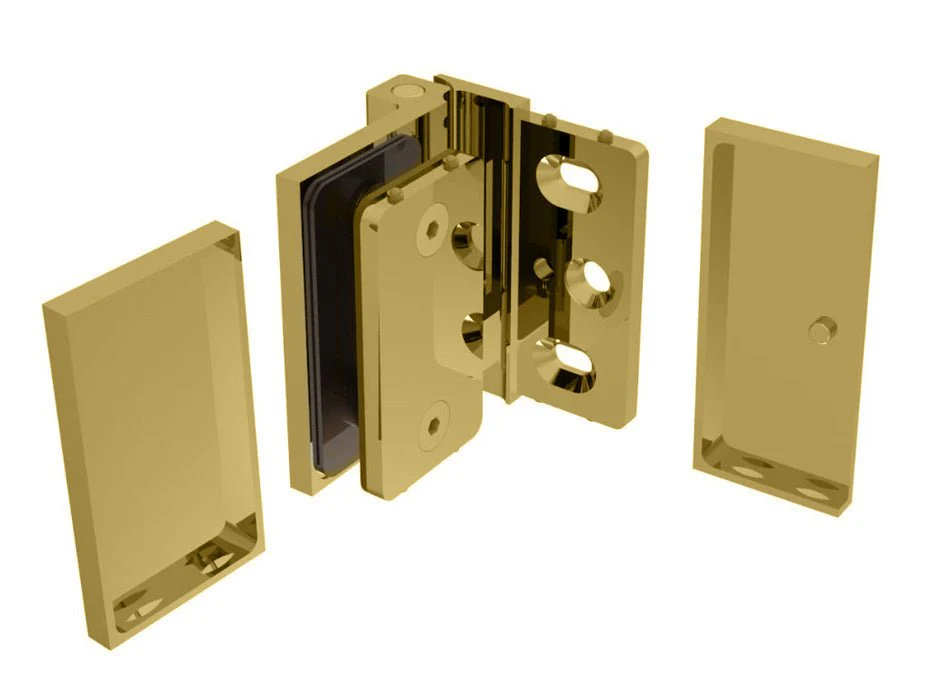

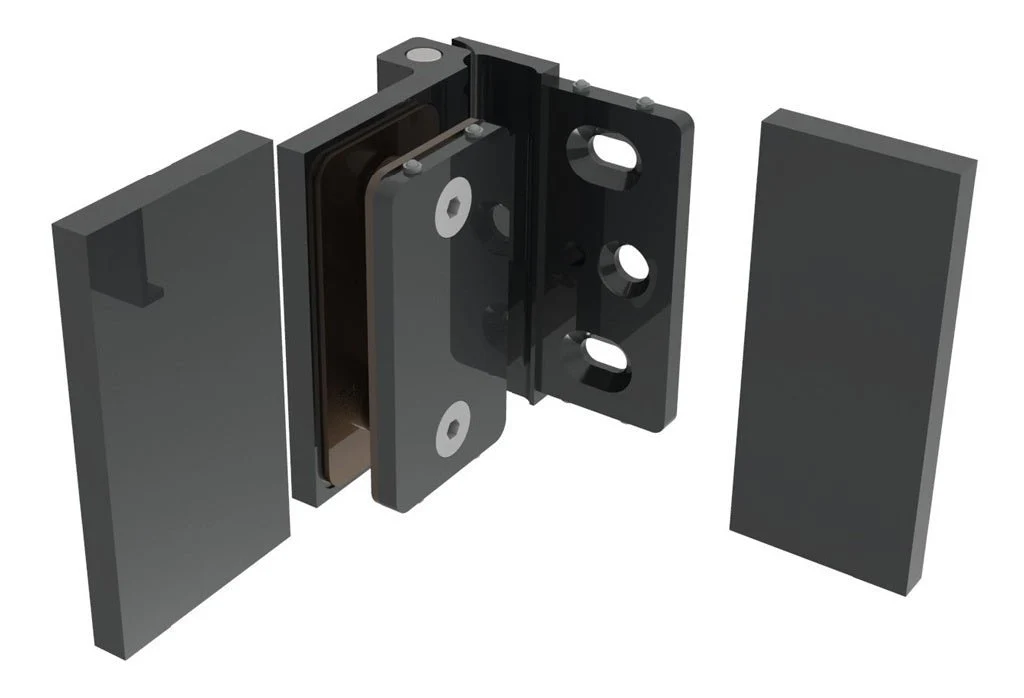

• Snap-on Covers Conceal Screws
• Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39” (914 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39” (914 m).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass

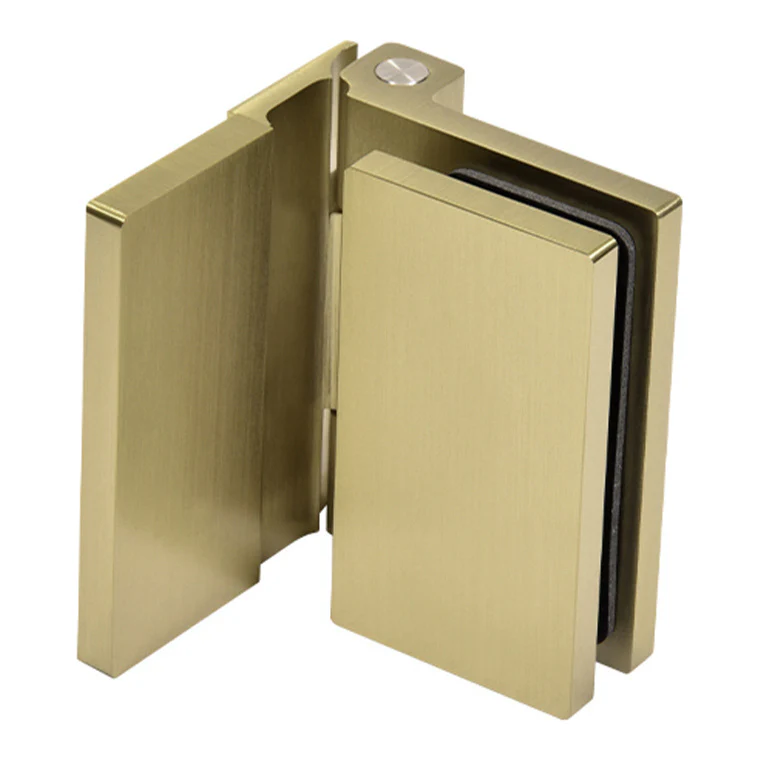

Construction: Stainless Steel or Solid Brass

Hinge Swings: See descriptions next to photos of hinges.

Closing Type: Free-Swinging

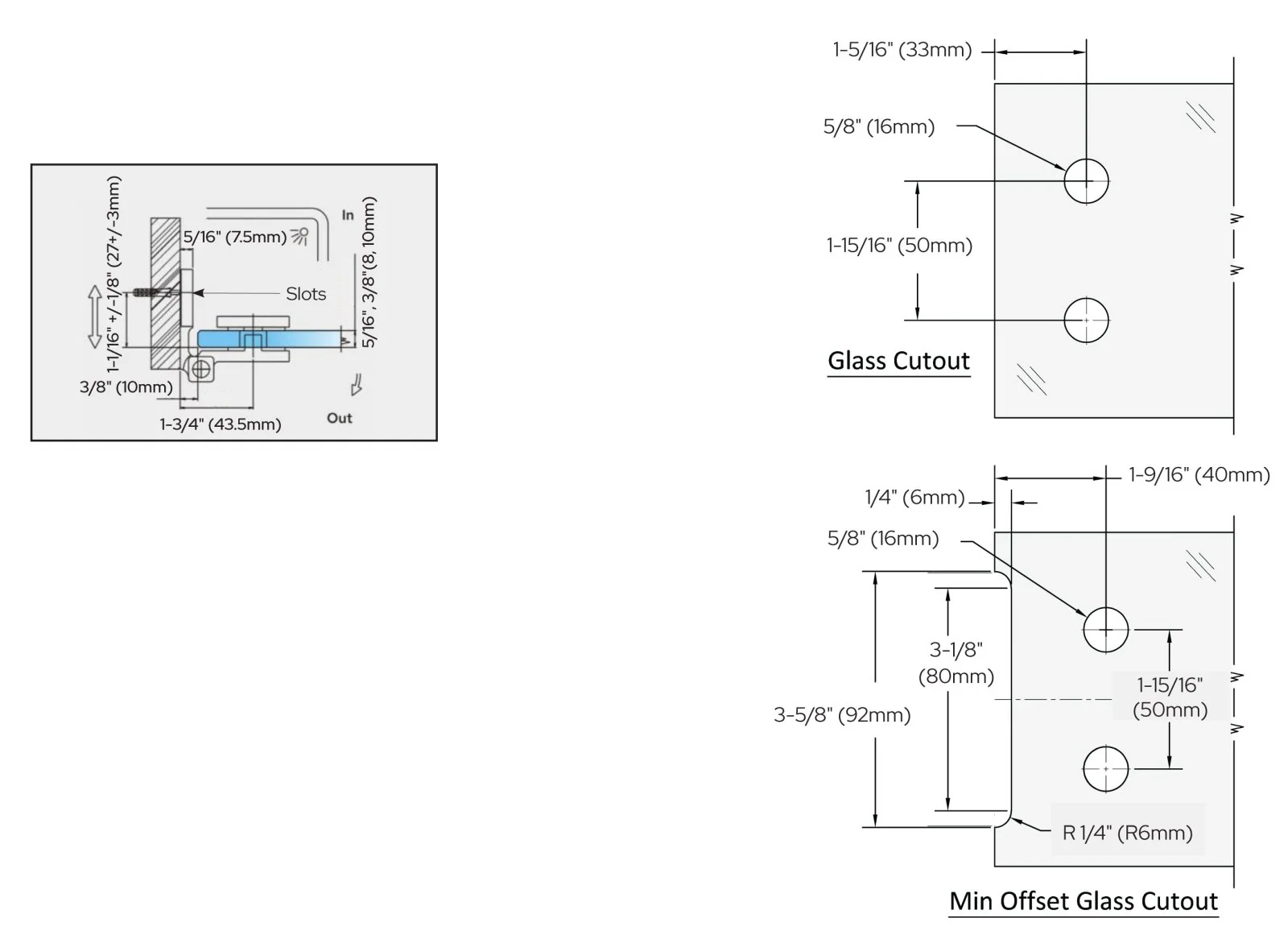

Two Holes Required Per Hinge Per Panel (No Cut-Out)

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

.

Product Warning:

Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the Shower Door Technical Sales Department.
