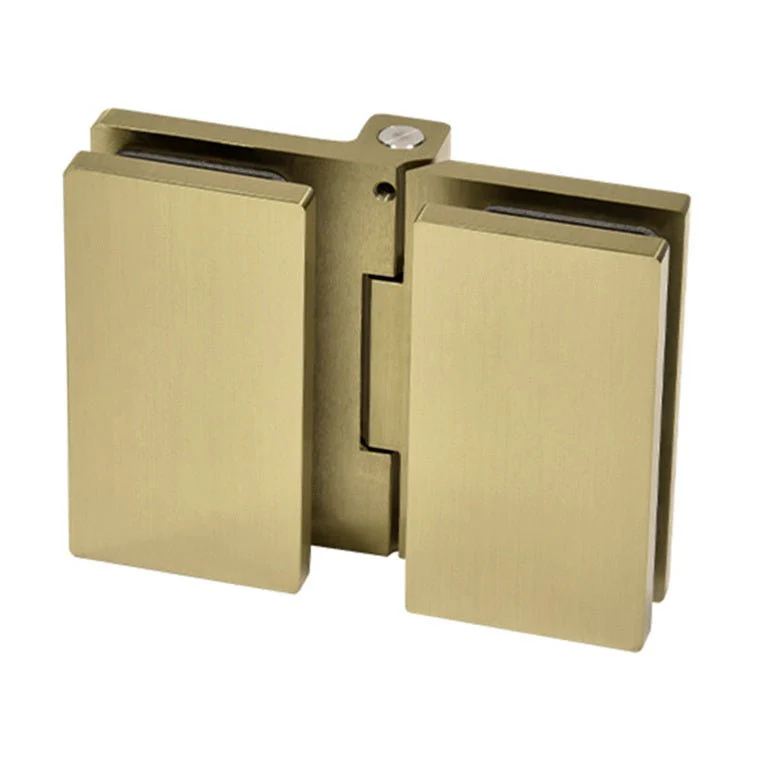

Como Series 180°Glass-to-Glass hinge

• Use Monolithic Tempered Glass
• Works with 5/16" to 3/8" (8 to 10 mm) glass
• Allows Saloon Door Configuration
• Ideal for Wheelchair Accessibility
• Snap-on Covers Conceal Screws
• Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.

NOTE: Not Available in Germany.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39” (914 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39” (914 m).

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass

• Construction: Stainless Steel or Solid Brass

• Hinge Swings: See descriptions next to photos of hinges.

• Closing Type: Free-Swinging

• Two Holes Required Per Hinge Per Panel (No Cut-Out)

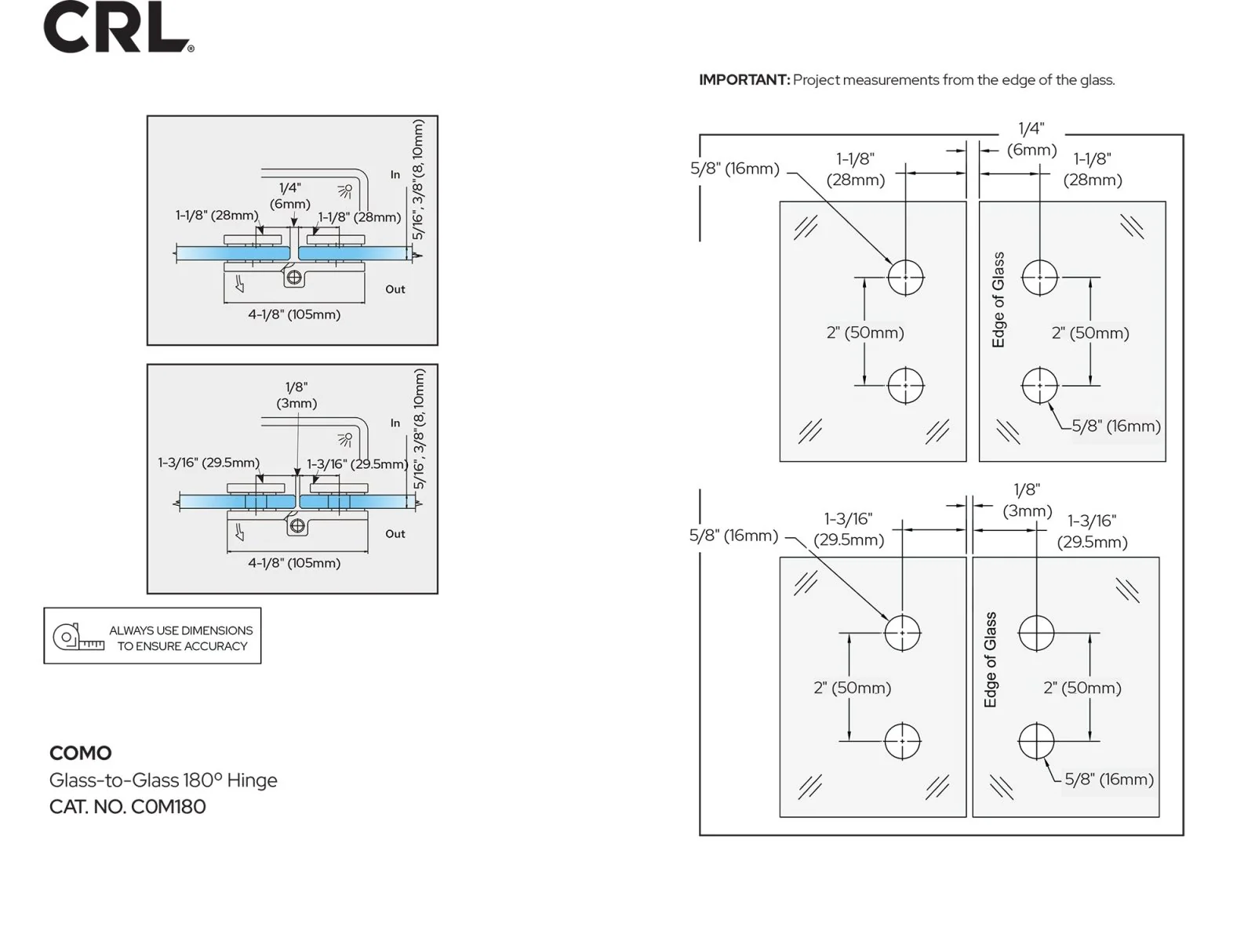

• Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
