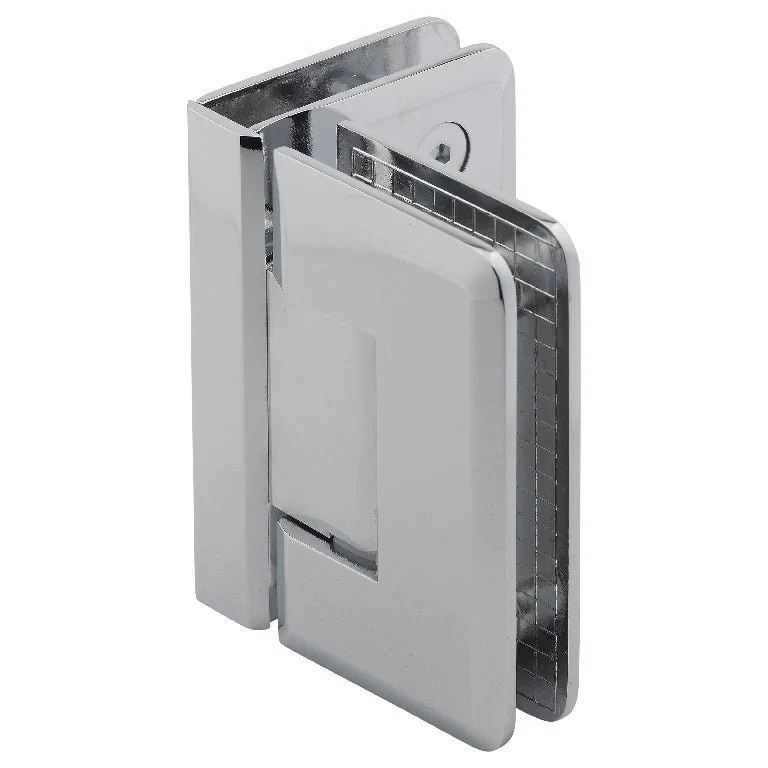

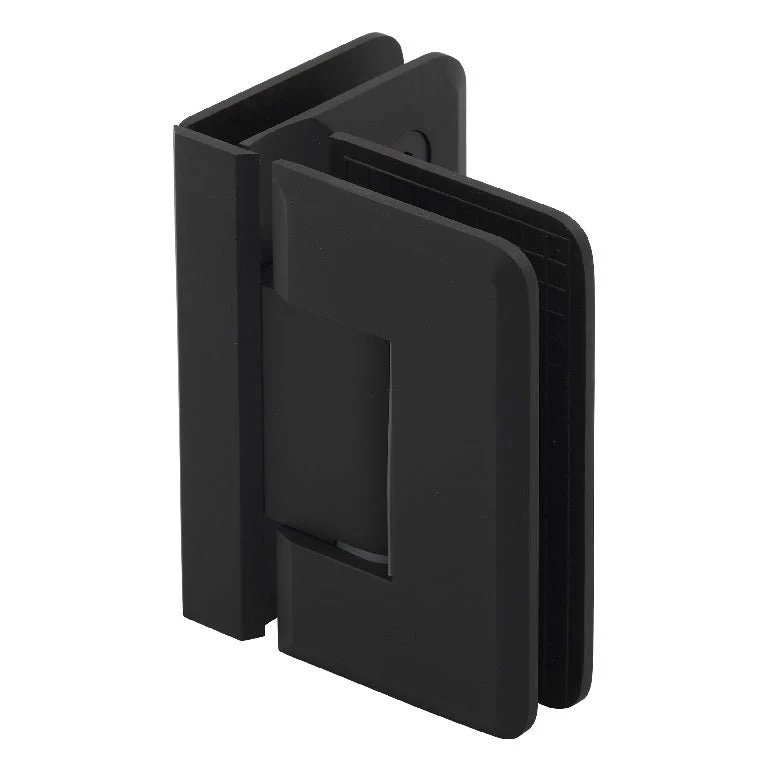

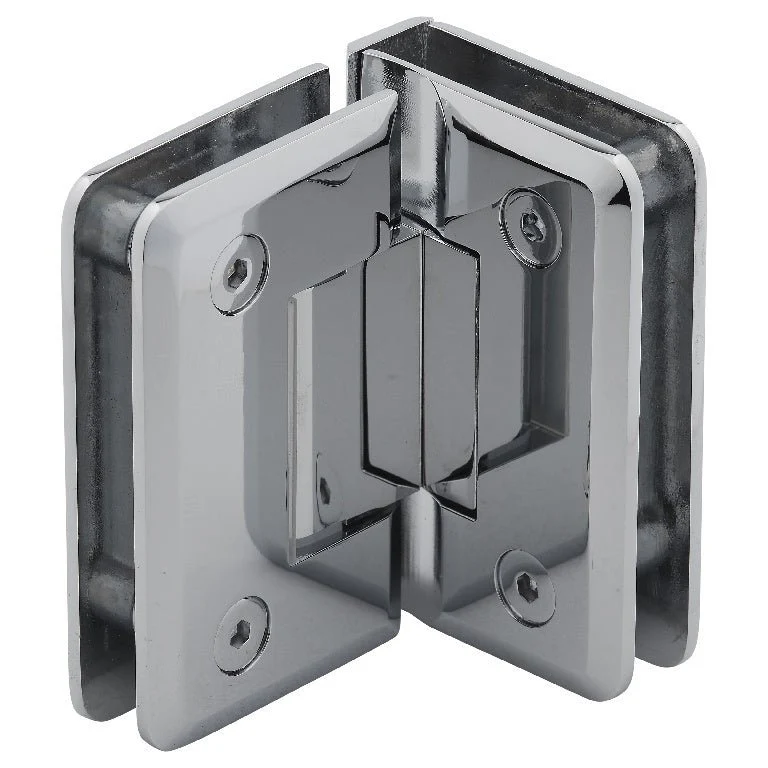

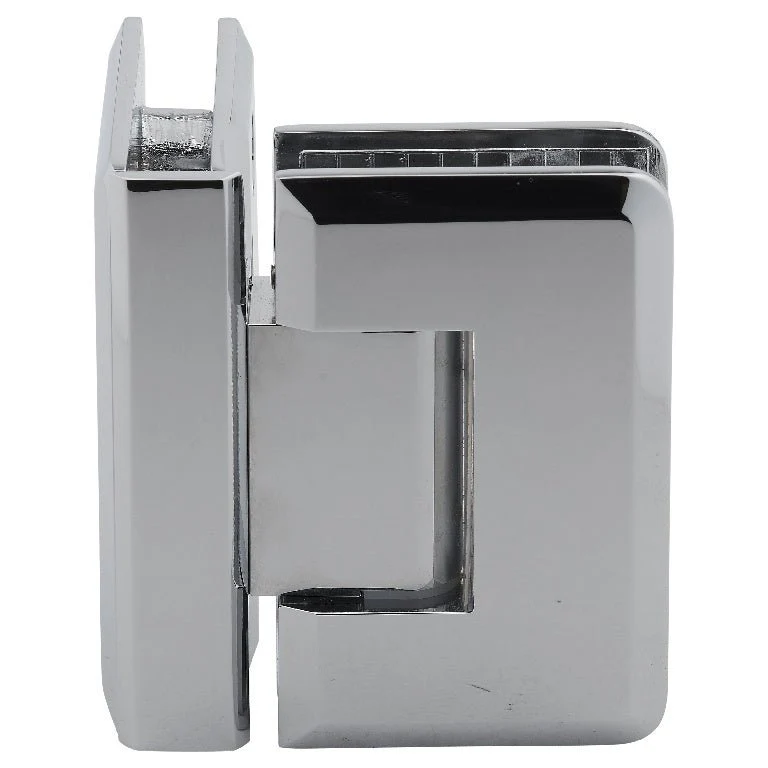

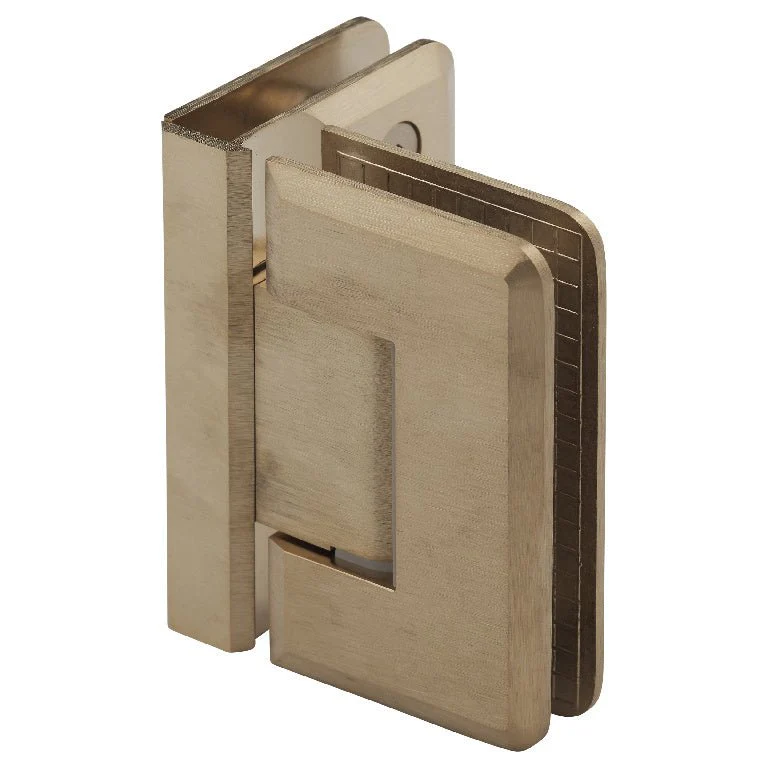

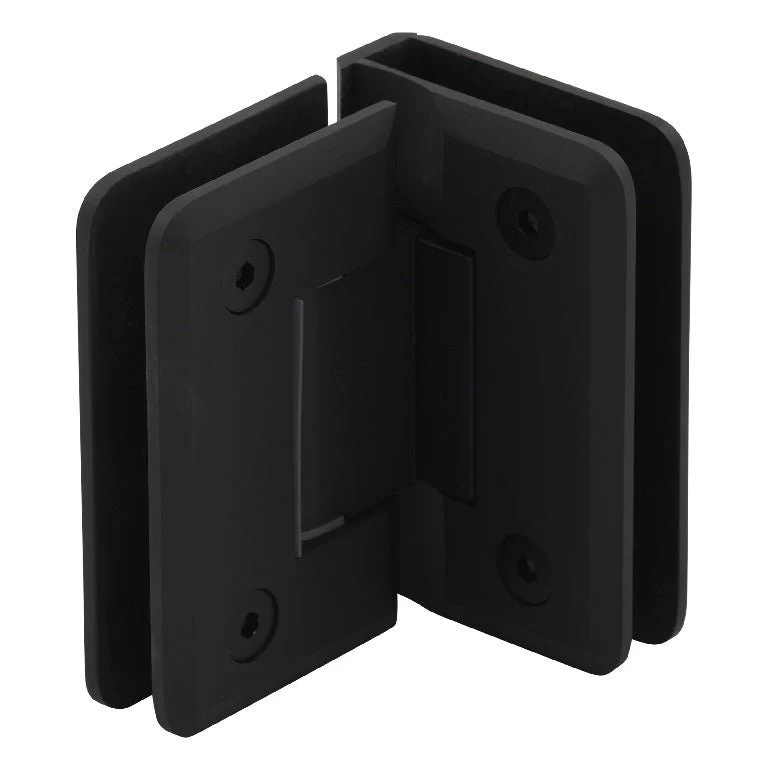

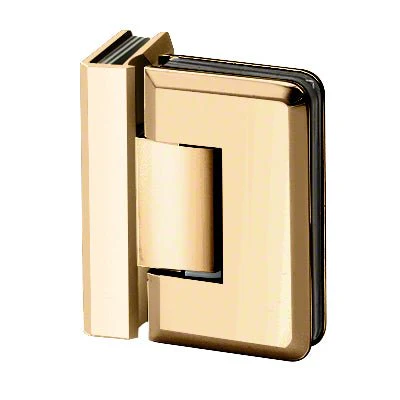

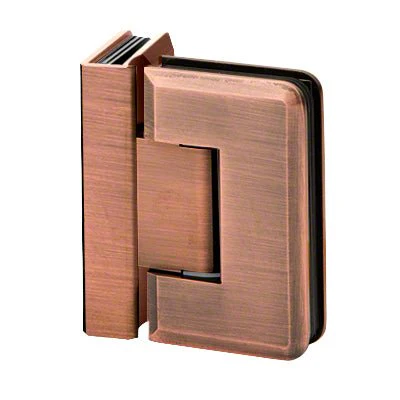

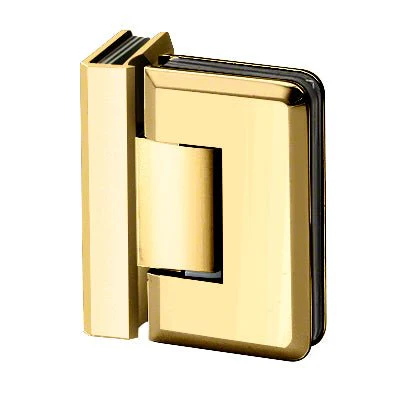

90º Glass to Glass Premier Series Hinge

• Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
• Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
• Solid Forged Brass Construction
• Precision Machined 300 Series Stainless Steel Components
• Dual Precision Wound Stainless Steel Return Springs
• Self-Closing from 25 Degrees
• Mouse Ear Design
• Designed for 3/8" and 1/2" Glass
• Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
• Allen Wrench Included
• Rated at 40lbs Per Hinge

Additional Product Information: Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm).

The Premier Series 90° Hinge is similar to our popular Designer Series Hinge, but with one design change: Premier has radius corners and beveled edges for a sleek appearance. Premier Hinges accommodate 3/8" (10 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 ° of the closed position. Premier Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure.
