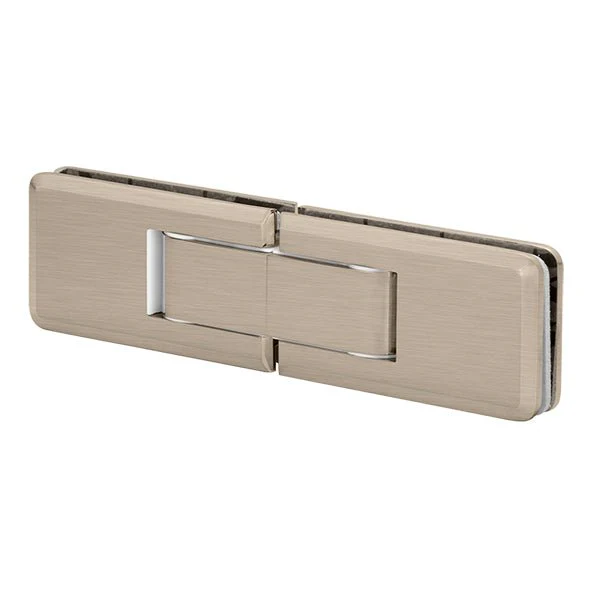

180° Glass to Glass Crown Series Hinge
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Center 0° Return
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25°
- Designed for 3/8" (10mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 45lbs (20.4kg) per Hinge
ADDITIONAL PRODUCT INFORMATION: Using two hinges with 3/8" glass the hinge will hold up to 90 lbs (40 kg) with a maximum door width of 35" (864 mm). Using three hinges with 3/8" glass the hinge will hold up to 135 lbs (61 kg) with a maximum door width of 38" (950 mm).
This innovative Crown Series 180 degree Glass-to-Glass 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Heavy-duty solid forged brass shower door hinges with rounded corners and beveled edges. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).
Original: $277.60
-70%$277.60
$83.28Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Center 0° Return
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25°
- Designed for 3/8" (10mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 45lbs (20.4kg) per Hinge
ADDITIONAL PRODUCT INFORMATION: Using two hinges with 3/8" glass the hinge will hold up to 90 lbs (40 kg) with a maximum door width of 35" (864 mm). Using three hinges with 3/8" glass the hinge will hold up to 135 lbs (61 kg) with a maximum door width of 38" (950 mm).
This innovative Crown Series 180 degree Glass-to-Glass 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Heavy-duty solid forged brass shower door hinges with rounded corners and beveled edges. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).
