Works with 5/16” to 3/8” (8 mm to 10 mm) glass

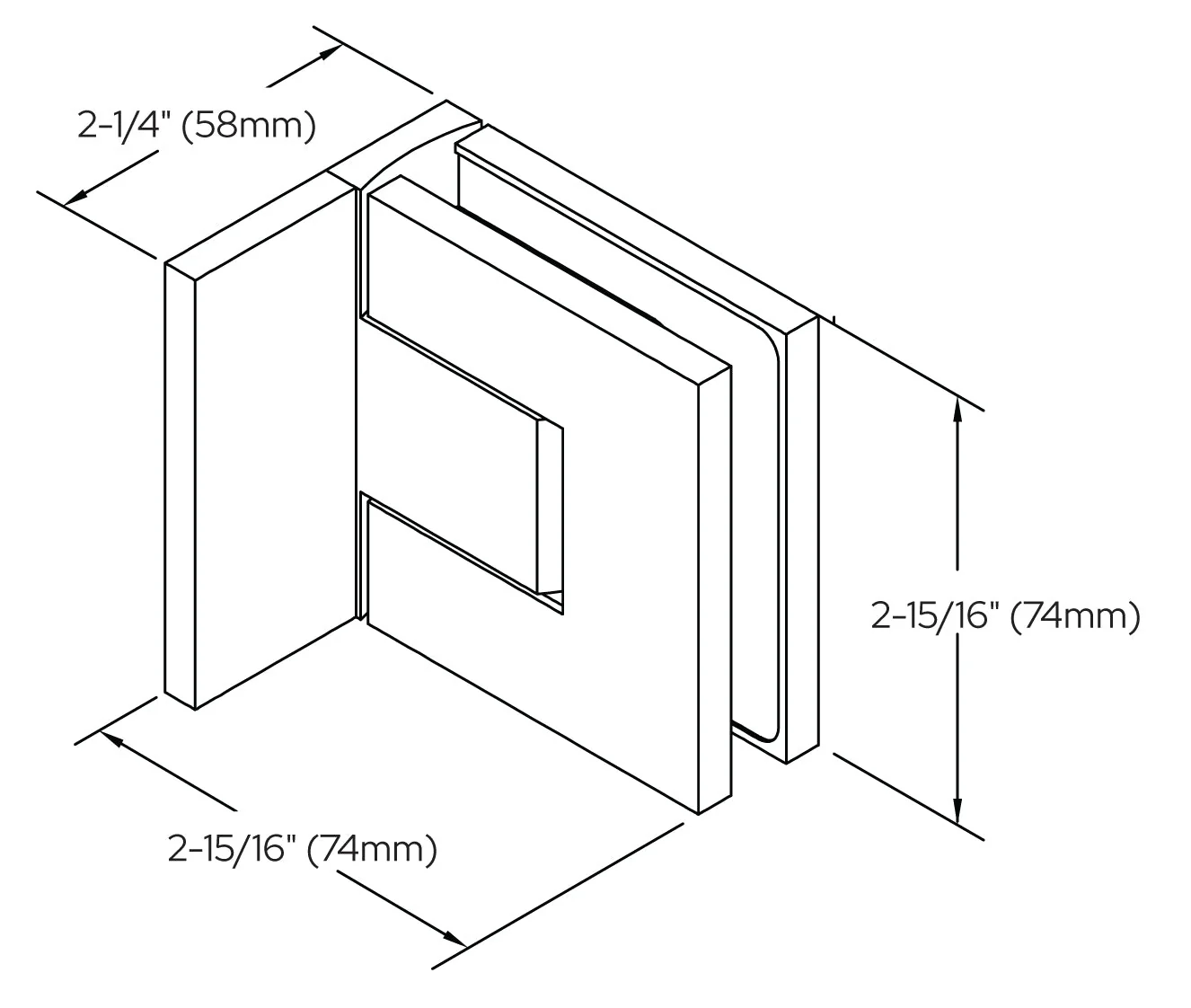

Matching Bellagio Series Brackets Available
Tight Gaps Prevent Water Infiltration
Self-centers from 25 Degrees
Adjustable Positive Closure
Snap-on Covers Conceal Screws
Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

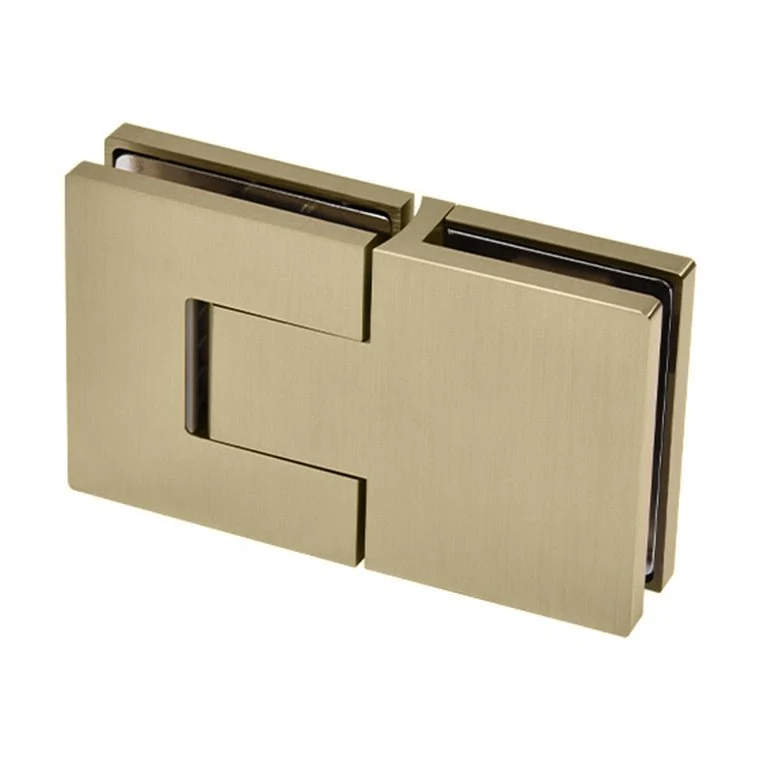

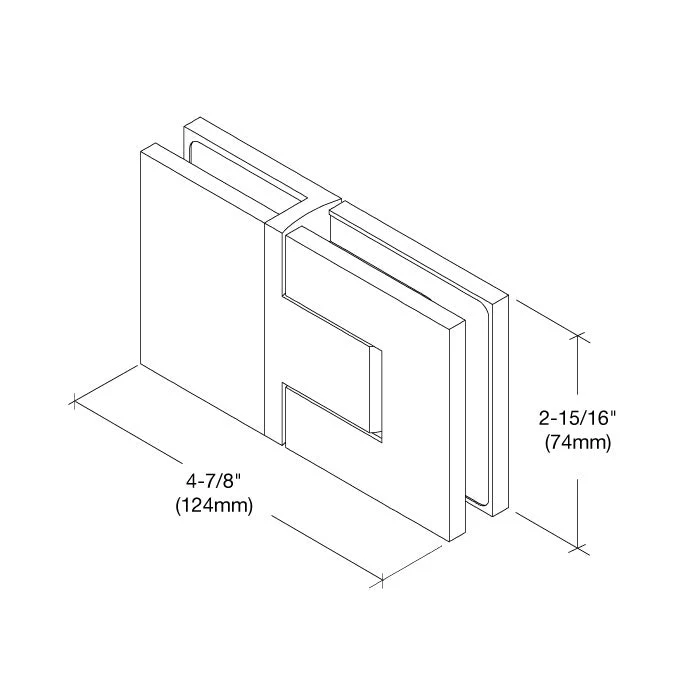

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
